Overview
The Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless Transmitter/Receiver Set enables transmission of lossless HD video up to 762 meters. It supports up to 4K60 video over HDMI or 12G-SDI with 10-bit HDR, and operates within a wide wireless range of 4.9 to 6.4 GHz, including the 6 GHz U-NII 5 spectrum.
Core Features
The transmitter unit provides a powerful signal that can travel up to 762 meters line of sight, with an SDI loop output for local monitoring. It is equipped with one horizontal and one vertical N-type antenna to enhance signal reception.
Designed for flexibility, it supports transmission of up to 4K60 video to a maximum of six receivers. Video content is protected with AES-256 encryption, ensuring visually lossless transmission with zero delay to any Ranger series receiver.
Control & Connectivity
Configuration and signal optimisation are simplified with the desktop Launchpad software or the Launchpad app for iOS or Android. Bluetooth 5 connectivity allows seamless connection, offering a spectrum analyser, channel selection tools, and remote configuration capabilities.
Power & Mounting Options
Powering the unit is convenient with a 2-pin DC input or the included V-mount battery plate. For ease of use and compatibility, the transmitter includes 1/4"-20 and M3 mounting threads for secure attachment to various cameras, cages, or rigs.
Specifications
| Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless Transmitter (V-Mount) | |
| Inputs / Outputs | |
| Antenna I/O | 2 x RP-SMA Female |

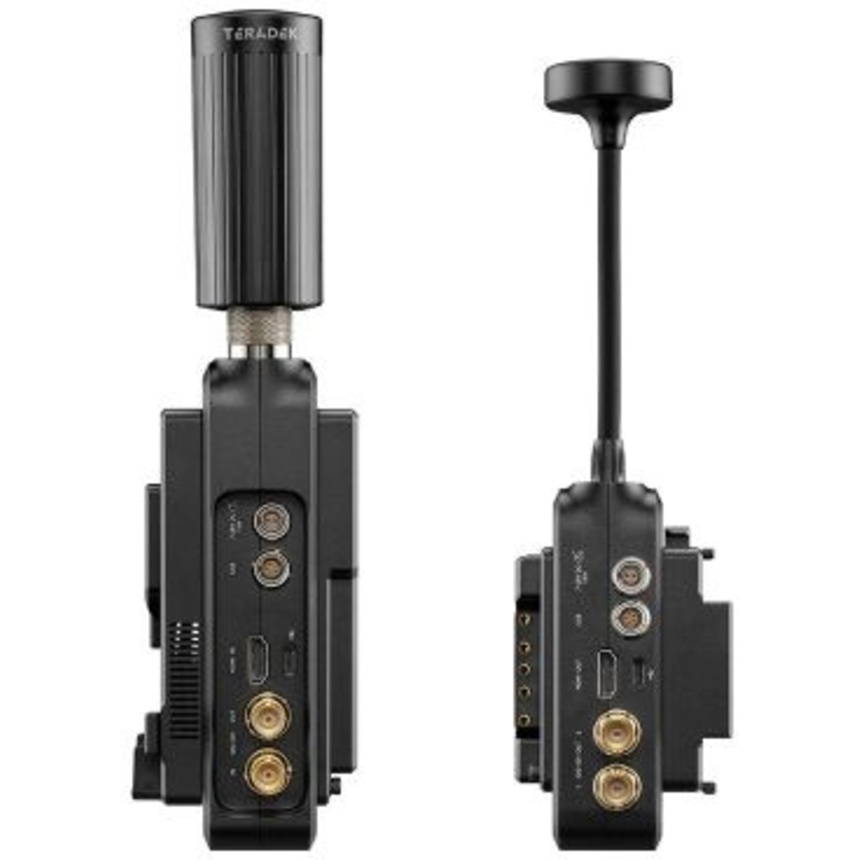

| Video I/O | 1 x HDMI 2.0 Input 1 x BNC (12G-SDI) Input 1 x BNC (12G-SDI) Loop Output |
| Embedded Audio | HDMI: 2-Channel SDI: 2-Channel |
| Audio I/O | None |
| Power I/O | 1 x LEMO 2-Pin (28 VDC) Input |
| Other I/O | 1 x USB-C (Firmware) Input |
| Encryption | 256-Bit AES |
| Wireless | |
| Wireless Range | 762 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | US: 5.92 to 6.42 GHz US: 4.85 to 5.15 GHz US: 5.35 to 5.47 GHz US: 5.85 to 5.92 GHz Non-DFS Frequencies US: 5.15 to 5.25 GHz US: 5.72 to 5.85 GHz DFS Frequencies US: 5.25 to 5.35 GHz US: 5.47 to 5.72 GHz |
| Latency | < 0.01 ms |
| RF Power | 23 dBm |
| Wi-Fi | None |
| Bluetooth | 5.0 LE |
| Mobile App Compatible | Yes: Android & iOS Functionality: Adjust Settings, Remote Control, Setup, View Live Feed *As of February, 2023: Check with manufacturer for the most up-to-date compatibility |
| Format Support | |
| Video Format | HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:2:2 YCC) UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Video Standard Compliance | SMPTE 424M |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
| Power | |
| DC Input Power | 6 to 28 VDC |
| Battery Type | 1 x V-Mount |
| Power Consumption | 12 W |
| Mounting | |
| Mounting | 1 x 1/4"-20 Female |
| Environmental | |
| Operating Temperature | 0 to 40°C |
| General | |
| Material of Construction | Aluminium, Polycarbonate |
| Dimensions | 149 x 91 x 30 mm |
| Weight | 544 g |
| Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless Receiver (V-Mount) | |
| Inputs / Outputs | |
| Antenna I/O | 5 x RP-SMA Female |
| Video I/O | 1 x HDMI 2.0 Output 1 x BNC (12G-SDI) Output |
| Embedded Audio | HDMI: 2-Channel SDI: 2-Channel |
| Audio I/O | None |
| Power I/O | 1 x LEMO 2-Pin (28 VDC) Input |
| Other I/O | 1 x USB-C (Firmware) Input |
| Encryption | 256-Bit AES |
| Wireless | |
| Wireless Range | 762 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | US: 5.92 to 6.42 GHz US: 4.85 to 5.15 GHz US: 5.35 to 5.47 GHz US: 5.85 to 5.92 GHz Non-DFS Frequencies US: 5.15 to 5.25 GHz US: 5.72 to 5.85 GHz DFS Frequencies US: 5.25 to 5.35 GHz US: 5.47 to 5.72 GHz |
| Latency | < 0.01 ms |
| RF Power | 21 dBm |
| Wi-Fi | None |
| Bluetooth | 5.0 LE |
| Mobile App Compatible | Yes: Android & iOS Functionality: Adjust Settings, Remote Control, Setup, View Live Feed *As of February, 2023: Check with manufacturer for the most up-to-date compatibility |
| Format Support | |
| Video Format | HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:2:2 YCC) UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Video Standard Compliance | SMPTE ST-2082-1 |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
| Power | |
| DC Input Power | 6 to 28 VDC |
| Battery Type | 1 x V-Mount |
| Power Consumption | 18 W |
| Mounting | |
| Mounting | 1 x 1/4"-20 Female 1 x 3/8"-16 Female |
| Environmental | |
| Operating Temperature | 0 to 40°C |
| General | |
| Material of Construction | Aluminium, Polycarbonate |
| Dimensions | 140 x 133 x 30 mm |
| Weight | 658 g |
What's Included

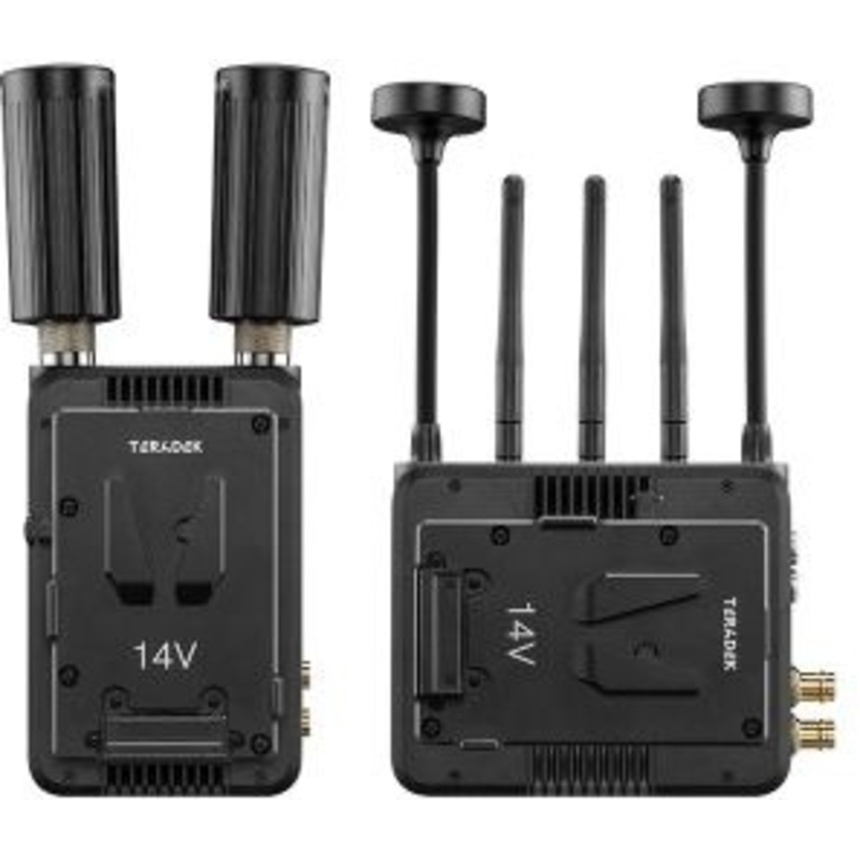

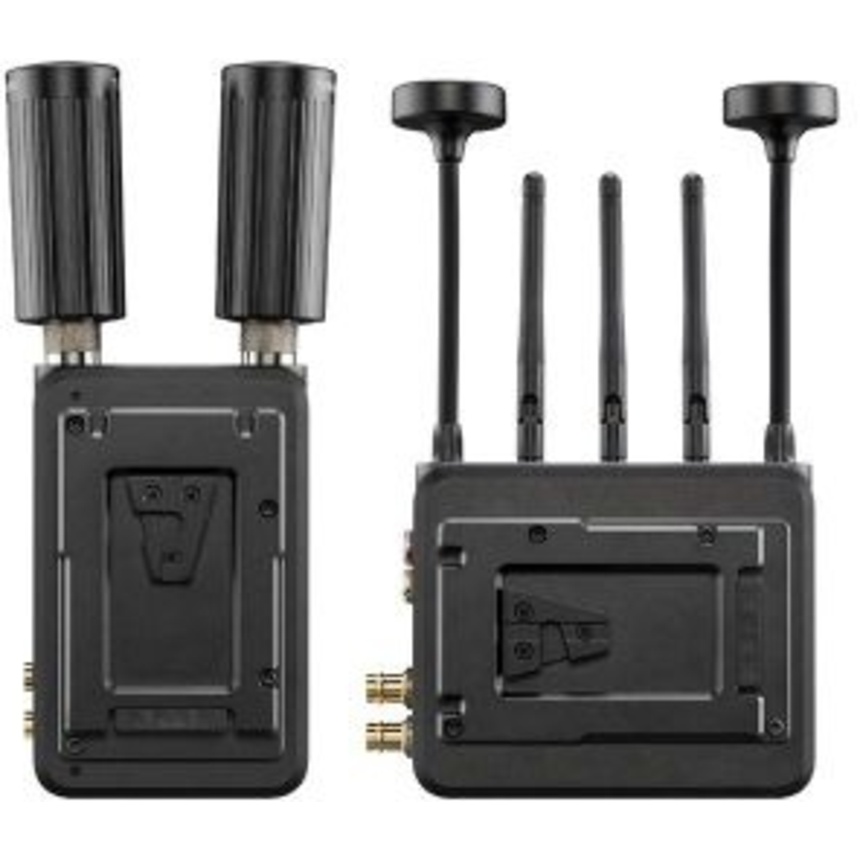

- Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless Transmitter (V-Mount)
- Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless Receiver (V-Mount)
- Barcode: 82233
- UPC Barcode: 818264029244
- Supplier Code: 53.10-2590-V
