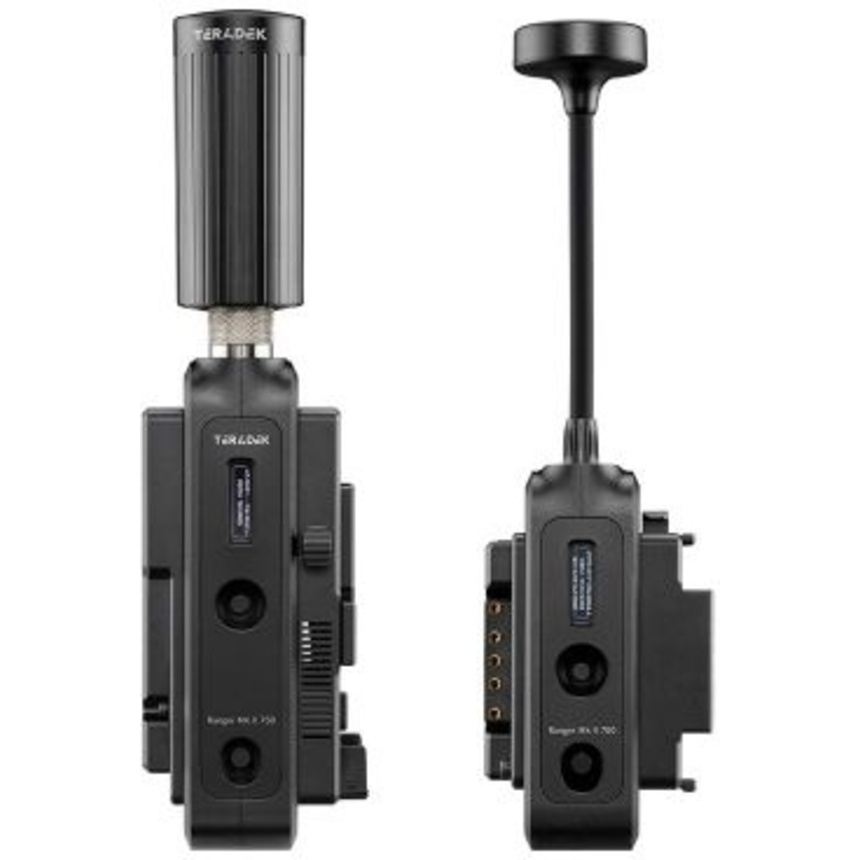

Teradek Ranger MK II 750 12G-SDI/HDMI Wireless Transmitter/Receiver Set (V-Mount)

Teradek Ranger MK II 750 12G-SDI/HDMI Wireless Transmitter/Receiver Set (V-Mount)

SKU:
53.10-2580-V

Key Features

  • Transmitter & Receiver Set
  • V-Mount Battery Plates
  • Supports 4.9 to 6.4 GHz Frequency Bands
  • Transmit Video up to 228.6 m Line of Sight
  • 12G-SDI and HDMI Input/Output
  • Lossless Transmission with Zero Delay

Teradek

$21,043.00

Or buy now, pay later with:

zip after qcard-payment credit-capable-payment

If the product is showing in stock, we'll ship it out the same day if the order is placed before 12pm.

The estimated shipping timeframe is based on the assumption that the supplier has this item in stock. We'll contact you to communicate the actual shipping timeframe after the order is placed.

If you need the item before a certain date, please contact us to confirm before ordering.

Adding to cart… The item has been added

Overview

The Teradek Ranger MK II 750 12G-SDI/HDMI Wireless Transmitter/Receiver Set is a versatile solution for broadcast, event, drone, and handheld applications. It supports up to 4K60 video input over HDMI or 12G-SDI with 10-bit HDR, and transmits over a wide 4.9 to 6.4 GHz wireless range, ensuring a reliable connection up to 229 meters line of sight.

Core Features

The Ranger MK II 750 supports transmission of up to 4K60 video to up to six receivers. It offers built-in AES-256 encryption for secure video transmission and ensures visually lossless video with zero delay.

Control & Connectivity

The transmitter can be managed using the desktop Launchpad software or the Launchpad app for iOS or Android, both offering Bluetooth 5 connectivity. Features include a spectrum analyzer, channel selection tools, and remote configuration.

Power & Mounting

Powering the unit is possible via a 2-pin DC input or the included V-mount battery plate. It is equipped with 1/4"-20 and M3 mounting threads for secure attachment to various cameras, cages, or rigs.

Specifications

Teradek Ranger MK II 750 12G-SDI/HDMI Wireless Transmitter (V-Mount)
Inputs / Outputs
Antenna I/O 2 x RP-SMA Female
Video I/O 1 x HDMI 2.0 Input
1 x BNC (12G-SDI) Input
1 x BNC (12G-SDI) Loop Output
Embedded Audio HDMI: 2-Channel
SDI: 2-Channel
Audio I/O None
Power I/O 1 x LEMO 2-Pin (28 VDC) Input
Other I/O 1 x USB-C (Firmware) Input
Encryption 256-Bit AES
Wireless
Wireless Range 750' / 228.6 m (Line-of-Sight)
Channel Bandwidth 40 MHz, 20 MHz
Frequency Range US: 5.92 to 6.42 GHz
US: 4.85 to 5.15 GHz
US: 5.35 to 5.47 GHz
US: 5.85 to 5.92 GHz
Non-DFS Frequencies
US: 5.15 to 5.25 GHz
US: 5.72 to 5.85 GHz
DFS Frequencies
US: 5.25 to 5.35 GHz
US: 5.47 to 5.72 GHz
Latency < 0.01 ms
RF Power 23 dBm
Wi-Fi None
Bluetooth 5.0 LE
Mobile App Compatible Yes: Android & iOS
Functionality: Adjust Settings, Remote Control, Setup, View Live Feed
*As of February, 2023: Cheque with manufacturer for the most up-to-date compatibility
Format Support
Video Format HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 60/59.94/50
480p: 60/59.94/50
576i: 60
480i: 59.94
SDI (10-Bit 4:2:2 YCC)
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 60/59.94/50
576i: 50
480p: 60/59.94/50
480i: 59.94
Video Standard Compliance SMPTE 424M
Audio Format 2-Channel 24-Bit 48 kHz
Wireless Video Compression Uncompressed
Timecode Support Yes
Power
DC Input Power 6 to 28 VDC
Battery Type 1 x V-Mount
Power Consumption 12 W
Mounting
Mounting 1 x 1/4"-20 Female
Environmental
Operating Temperature 32 to 72°F / 0 to 40°C
General
Material of Construction Aluminium, Polycarbonate
Dimensions 5.9 x 3.6 x 1.2" / 149 x 91 x 30 mm
Weight 19.2 oz / 544 g
Teradek Ranger MK II 750 12G-SDI/HDMI Wireless Receiver (V-Mount)
Inputs / Outputs
Antenna I/O 5 x RP-SMA Female
Video I/O 1 x HDMI 2.0 Output
1 x BNC (12G-SDI) Output
Embedded Audio HDMI: 2-Channel
SDI: 2-Channel
Audio I/O None
Power I/O 1 x LEMO 2-Pin (28 VDC) Input
Other I/O 1 x USB-C (Firmware) Input
Encryption 256-Bit AES
Wireless
Wireless Range 750' / 228.6 m (Line-of-Sight)
Channel Bandwidth 40 MHz, 20 MHz
Frequency Range US: 5.92 to 6.42 GHz
US: 4.85 to 5.15 GHz
US: 5.35 to 5.47 GHz
US: 5.85 to 5.92 GHz
Non-DFS Frequencies
US: 5.15 to 5.25 GHz
US: 5.72 to 5.85 GHz
DFS Frequencies
US: 5.25 to 5.35 GHz
US: 5.47 to 5.72 GHz
Latency < 0.01 ms
RF Power 21 dBm
Wi-Fi None
Bluetooth 5.0 LE
Mobile App Compatible Yes: Android & iOS
Functionality: Adjust Settings, Remote Control, Setup, View Live Feed
*As of February, 2023: Cheque with manufacturer for the most up-to-date compatibility
Format Support
Video Format HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
SDI (10-Bit 4:2:2 YCC)
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Video Standard Compliance SMPTE ST-2081-1
Audio Format 2-Channel 24-Bit 48 kHz
Wireless Video Compression Uncompressed
Timecode Support Yes
Power
DC Input Power 6 to 28 VDC
Battery Type 1 x V-Mount
Power Consumption 18 W
Mounting
Mounting 1 x 1/4"-20 Female
1 x 3/8"-16 Female
Environmental
Operating Temperature 32 to 72°F / 0 to 40°C
General
Material of Construction Aluminium, Polycarbonate
Dimensions 5.5 x 5.2 x 1.2" / 140 x 133 x 30 mm
Weight 23.2 oz / 658 g

What's Included

  • Teradek Ranger MK II 750 12G-SDI/HDMI Wireless Transmitter (V-Mount)
  • Teradek Ranger MK II 750 12G-SDI/HDMI Wireless Receiver (V-Mount)
  • Barcode: 82224
  • UPC Barcode: 818264029909
  • Supplier Code: 53.10-2580-V
