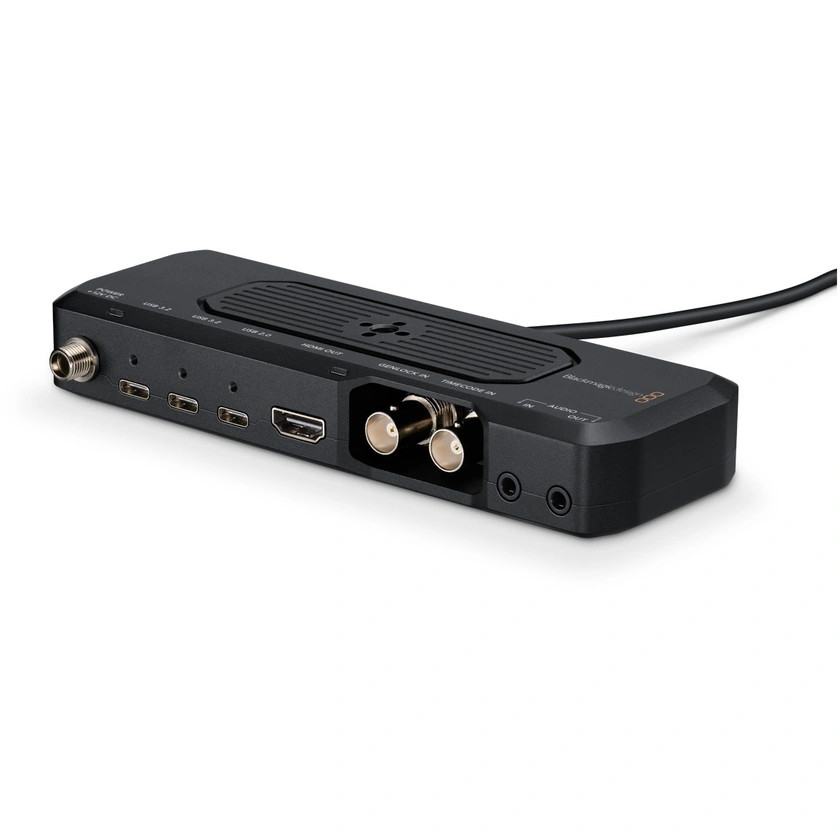

Blackmagic Camera ProDock

Blackmagic Camera ProDock

SKU:
CINTDOCKPRO

Key Features

  • Professional iPhone camera dock
  • Supports Blackmagic Camera app
  • Genlock and timecode sync
  • Three USB-C accessory ports
  • HDMI and audio connections
  • Locking 12–15V DC input

Blackmagic

$554.00

Or buy now, pay later with:

zip after qcard-payment credit-capable-payment

If the product is showing in stock, we'll ship it out the same day if the order is placed before 12pm.

The estimated shipping timeframe is based on the assumption that the supplier has this item in stock. We'll contact you to communicate the actual shipping timeframe after the order is placed.

If you need the item before a certain date, please contact us to confirm before ordering.

Adding to cart… The item has been added

Overview

The Blackmagic Camera ProDock transforms your iPhone into a professional production camera with all the essential connections to build a custom rig. It fully supports the Blackmagic Camera app for iPhone, providing HDMI monitoring, microphone and headphone inputs, genlock, USB for external disks, and power integration.

External Genlock and Timecode

With professional BNC connections, the ProDock supports external genlock and timecode to keep multiple cameras perfectly synchronized. It enables seamless LED wall shooting without flicker or tearing, which is crucial for virtual production workflows.

Accessory and Disk Support

Equipped with three USB-C ports, the ProDock allows connection of accessories and external SSDs for recording. Integrated power management ensures simultaneous operation of connected devices. It also includes 3.5 mm connections for microphones and headphone monitoring, plus a full-size HDMI output for on-set monitoring.

Compatibility

iPhone Models iPhone 17 Pro, 17 Pro Max, 16 Pro, 16 Pro Max, 15 Pro, 15 Pro Max

Connections

HDMI Video Outputs 1 × HDMI 2.1 (Type A)
Audio Inputs 1 × 3.5 mm stereo mini-jack
Audio Outputs 1 × 3.5 mm stereo mini-jack
Timecode Input 1 × BNC, 1 × 3.5 mm audio input supporting timecode in
Genlock Input 1 × BNC, Tri-Sync or Black Burst
USB-C Ports 2 × USB 3.2 high-speed for external media, 1 × USB 2.0 for accessories
iPhone Connection 1 × USB-C cable and plug

Audio

Microphone External microphones via 3.5 mm stereo mini-jack or USB-C
Monitor Headphones via 3.5 mm stereo mini-jack output

Display

Status Indicator 1 × power LED, 1 × front tally LED, 1 × genlock LED

Power

Power Supply 1 × External 12 V DC 60 W
Power Inputs +12 V to +15 V DC with locking 5.5 mm barrel connector
Power Outputs 5 V ? 1.5 A (7.5 W max per USB-C port)

Environmental Specifications

Operating Temperature 0°C to 40°C
Storage Temperature -20°C to 45°C
Relative Humidity 0% to 90% non-condensing

General

Cable Length 30 cm
Height 2.54 cm
Width 16.3 cm
Depth 6.6 cm
Weight 270 g

What's Included

  • Blackmagic Camera ProDock
  • 1/4-inch to 1/4-inch mounting adapter
  • Welcome wallet
  • 12V 60W power supply
  • Barcode: 85633
  • UPC Barcode: 9338716010107
  • Supplier Code: CINTDOCKPRO
