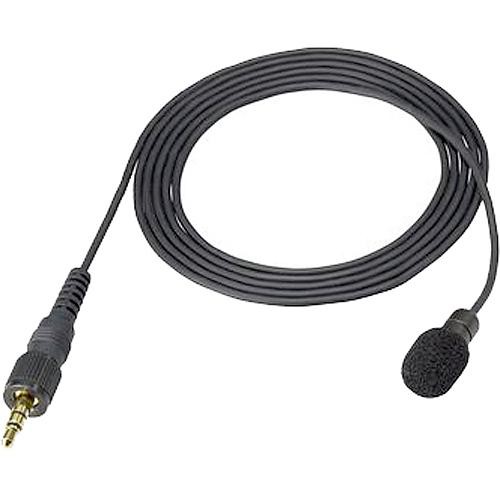

The Sony ECM-V1BMP Electret Condenser Lavalier Microphone is intended for use with the UWP series bodypack transmitters. The microphone features a omnidirectional polar pattern and 3.5mm TRS locking plug.
Sony ECM-V1 Specs
Form Factor | Lavalier |
Sound Field | Mono |
Capsule | 1 x Electret Condenser |
Polar Pattern | Omnidirectional |
Windscreen | Foam (Included) |
Frequency Range | Omnidirectional Electret Condenser: 40 Hz to 20 kHz |
Maximum SPL | 120 dB SPL Peak (A-Weighted) |
Impedance | 1.2 Kilohms ± 30% (Unbalanced) |
Sensitivity | -43.0 dB |
Dynamic Range | 86 dB A-Weighted |
Signal-to-Noise Ratio | 60 dB A-Weighted |
Equivalent Noise Level | 34 dB A-Weighted |
Output Connectors | 1 x 1/8" / 3.5 mm TRS Male (Lockable) |
Cable Length | 0 to 3.9' / 0.00 to 1.19 m |
Operating Voltage | 5 V |
Operating Current Consumption | 0.2 mA |
Color | Black |
Mounting | Alligator Clip (Included) |
Dimensions | H: 0.27 x W: 0.77" / H: 6.8 x W: 19.5 mm |
Weight | 0.57 oz / 16 g |
- Sony ECM-V1BMP Electret Condenser Lavalier Microphone for UWP Transmitters
- Foam Windscreen
- Microphone Clip
- Barcode: 45296
- UPC Barcode: 4548736057005
- Supplier Code: SZ9126
