Overview

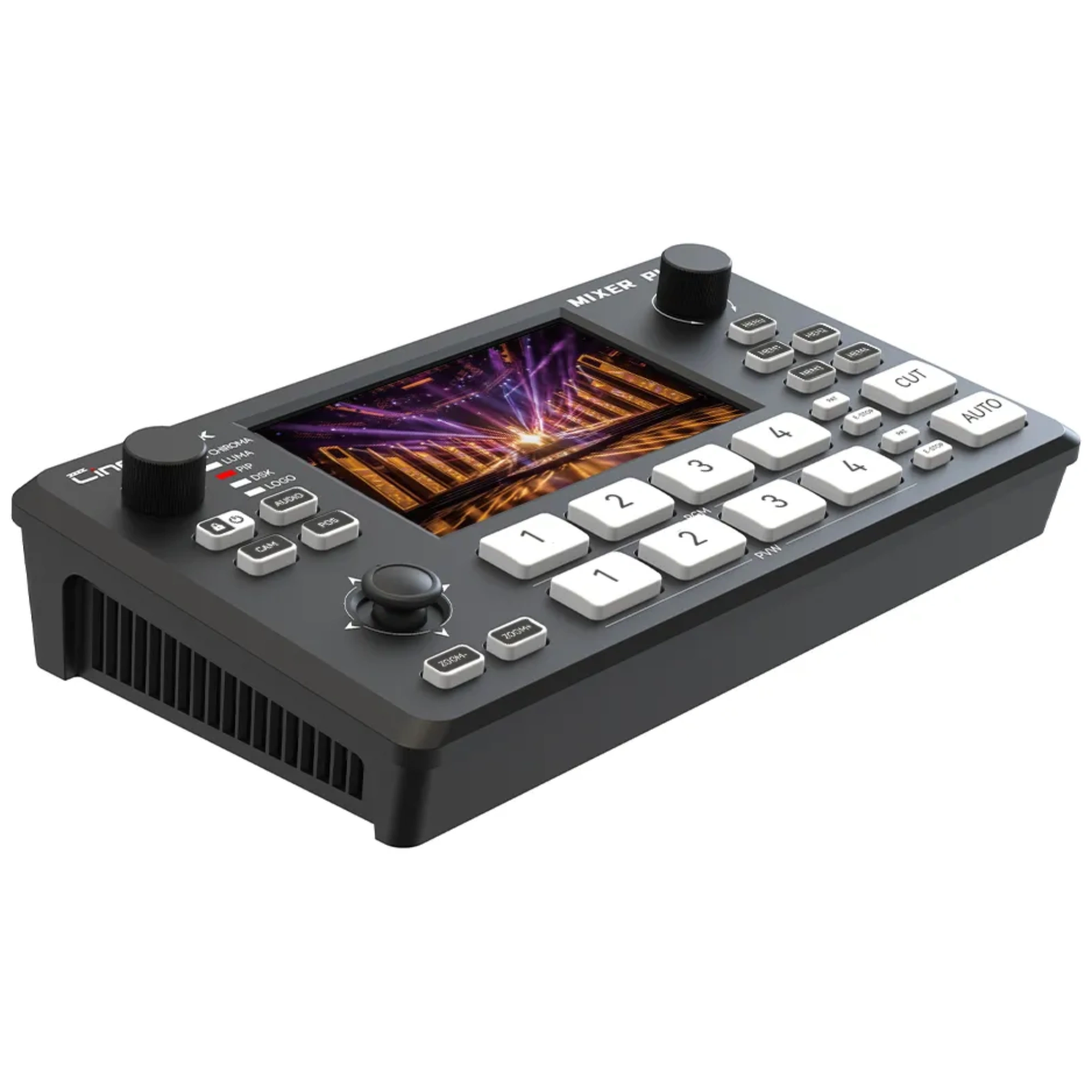

The CineTreak Mixer Plus 4-Channel HDMI Streaming Video Switcher with 4.5" Display is a compact all-in-one production switcher designed for live streaming, content creation, education, houses of worship, and event production. Featuring four HDMI inputs, dual HDMI outputs, USB UVC streaming, and a built-in 11.4 cm display, it provides a complete solution for switching, monitoring, recording workflows, and live broadcast production.
Supporting resolutions up to 1080p60, the Mixer Plus offers professional production tools including chroma key, luma key, picture-in-picture, picture-out-picture, logo overlays, transition effects, and multiview monitoring. Integrated VISCA PTZ camera control and flexible audio mixing capabilities make it ideal for multi-camera streaming environments.
Core Features
- Supports four HDMI video inputs and multiple simultaneous output paths for live production workflows.
- Built-in 11.4 cm LCD display provides convenient multiview monitoring and system control.
- Streams directly to a computer through USB UVC output without requiring a separate capture card.
- Provides chroma key, luma key, logo overlays, picture-in-picture, and picture-out-picture effects.
- Controls up to four compatible PTZ cameras using the integrated VISCA protocol.

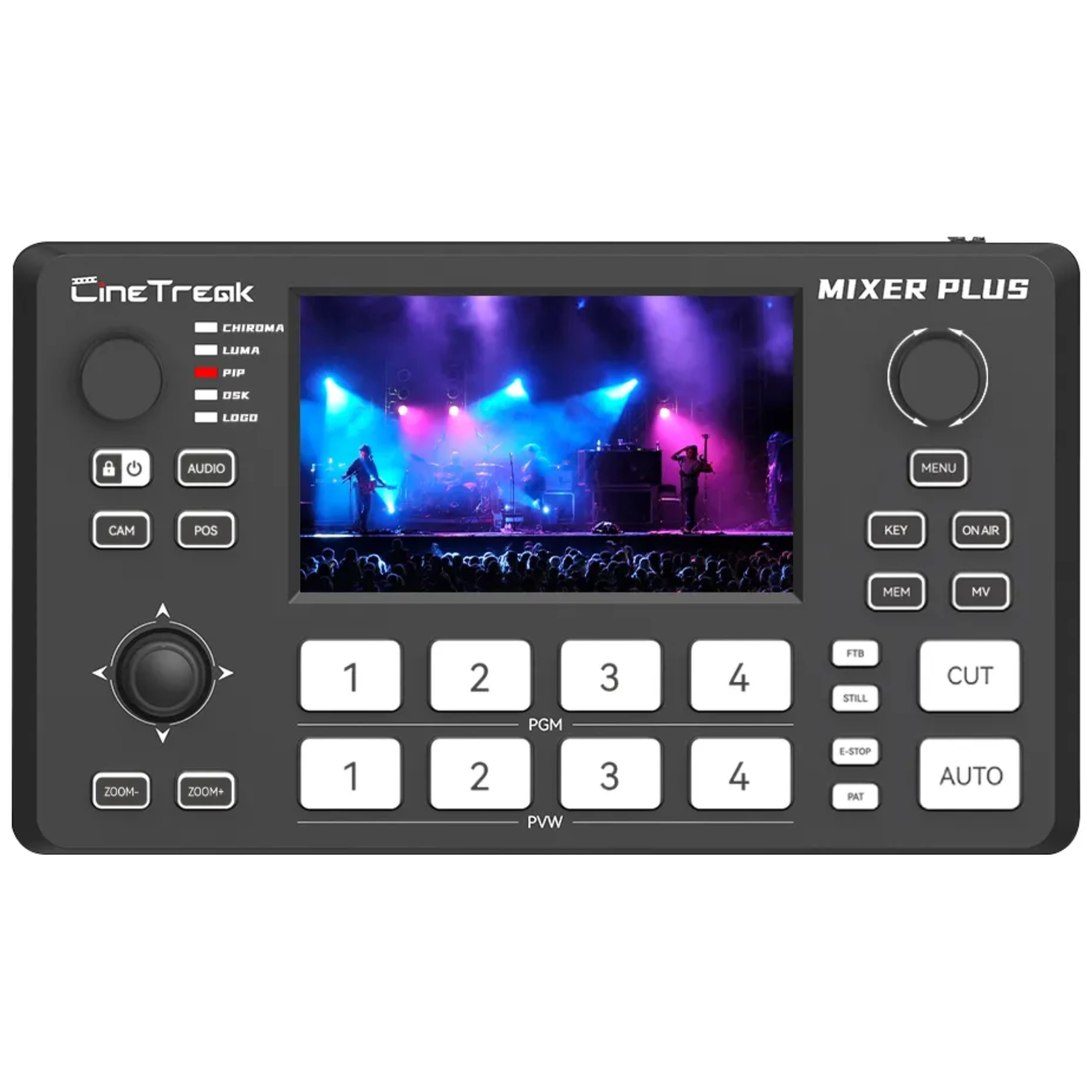

- Offers push-button hardware operation and browser-based remote control.

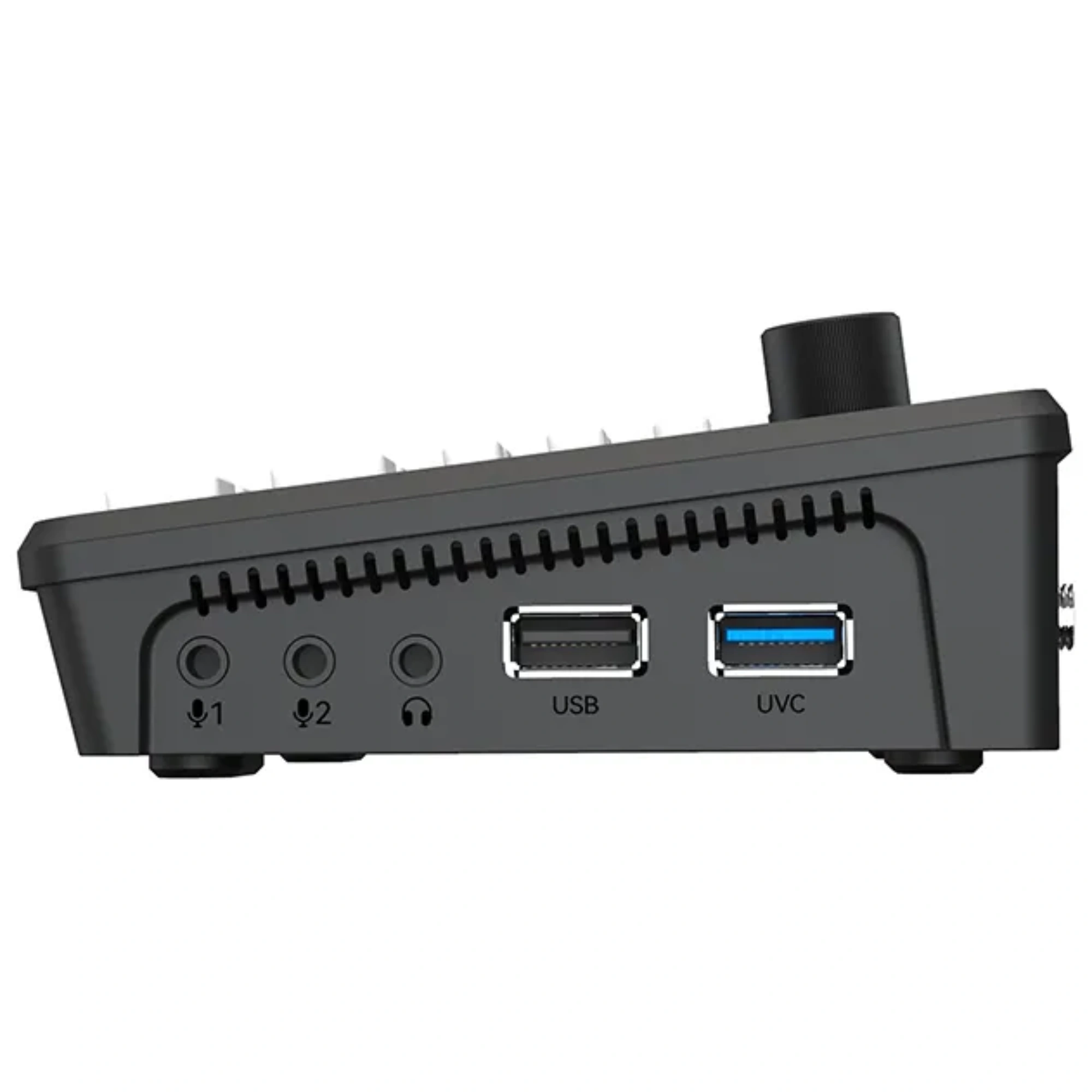

- Includes two 3.5 mm mic/line inputs and a dedicated headphone monitoring output.
- Supports live production and streaming at resolutions up to 1080p60.
Live Streaming and Production
The Mixer Plus enables professional live streaming directly to popular platforms through its USB UVC output. Multiple video sources can be switched in real time while applying transitions, overlays, and visual effects without additional hardware.
PTZ Camera Integration
Integrated VISCA support allows operators to control compatible PTZ cameras directly from the switcher. Functions such as camera positioning, focus adjustment, and image settings can be managed from a single interface.
Flexible Audio Control
Embedded HDMI audio can be mixed alongside external audio sources connected via the two 3.5 mm mic/line inputs. A dedicated headphone output enables real-time audio monitoring during production.
Mix Effects
| Available M/E Layers | 5 M/E |
| Effect Types | Graphic Transition Chroma Key Luma Key |
| Downstream Keys | 2x Overlay |
Processing
| Switching Type | Pushbutton Software |
| Processing Resolution | 1080p at 23.98/24/25/29.97/30/50/59.94/60 |
| Color Processing | YUV |

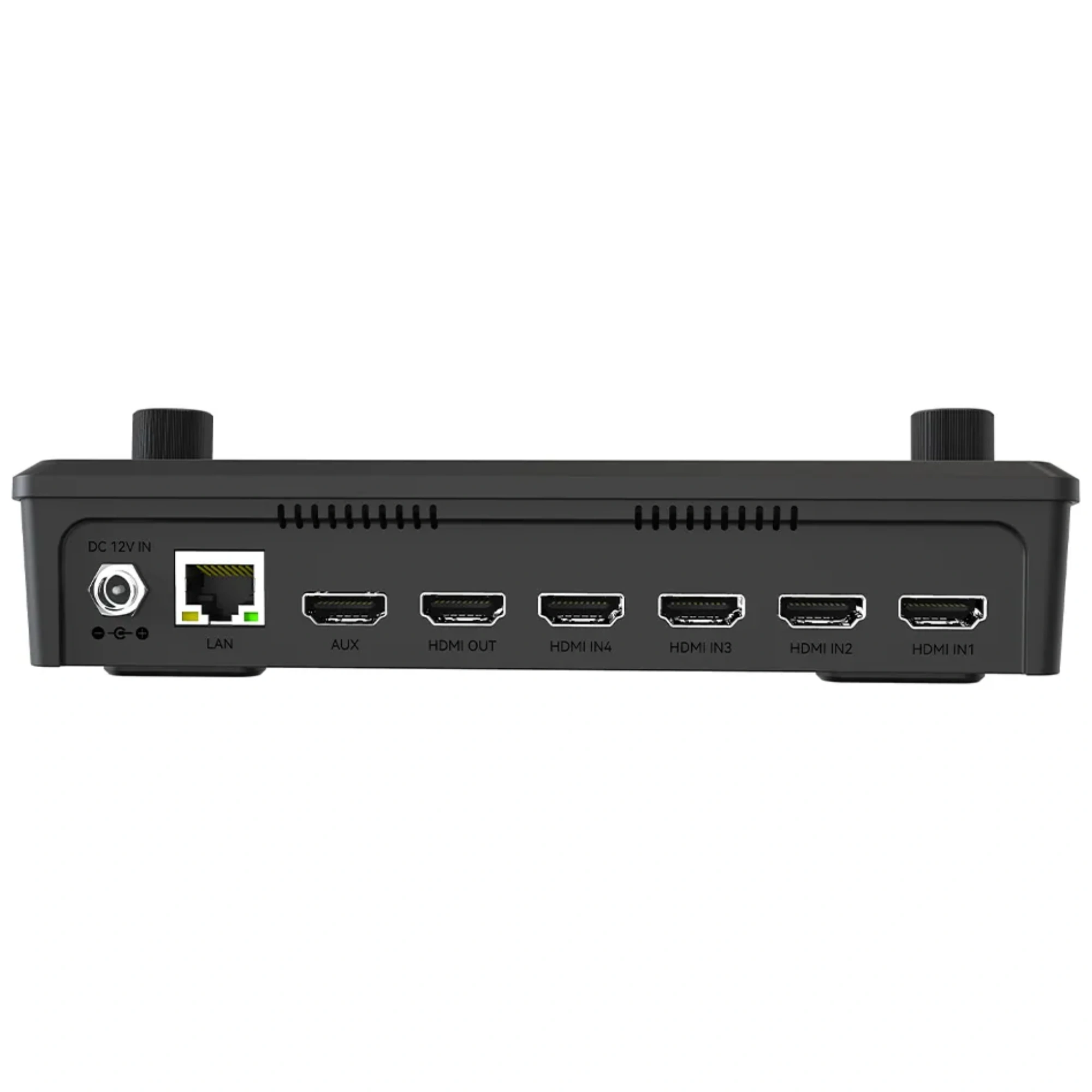

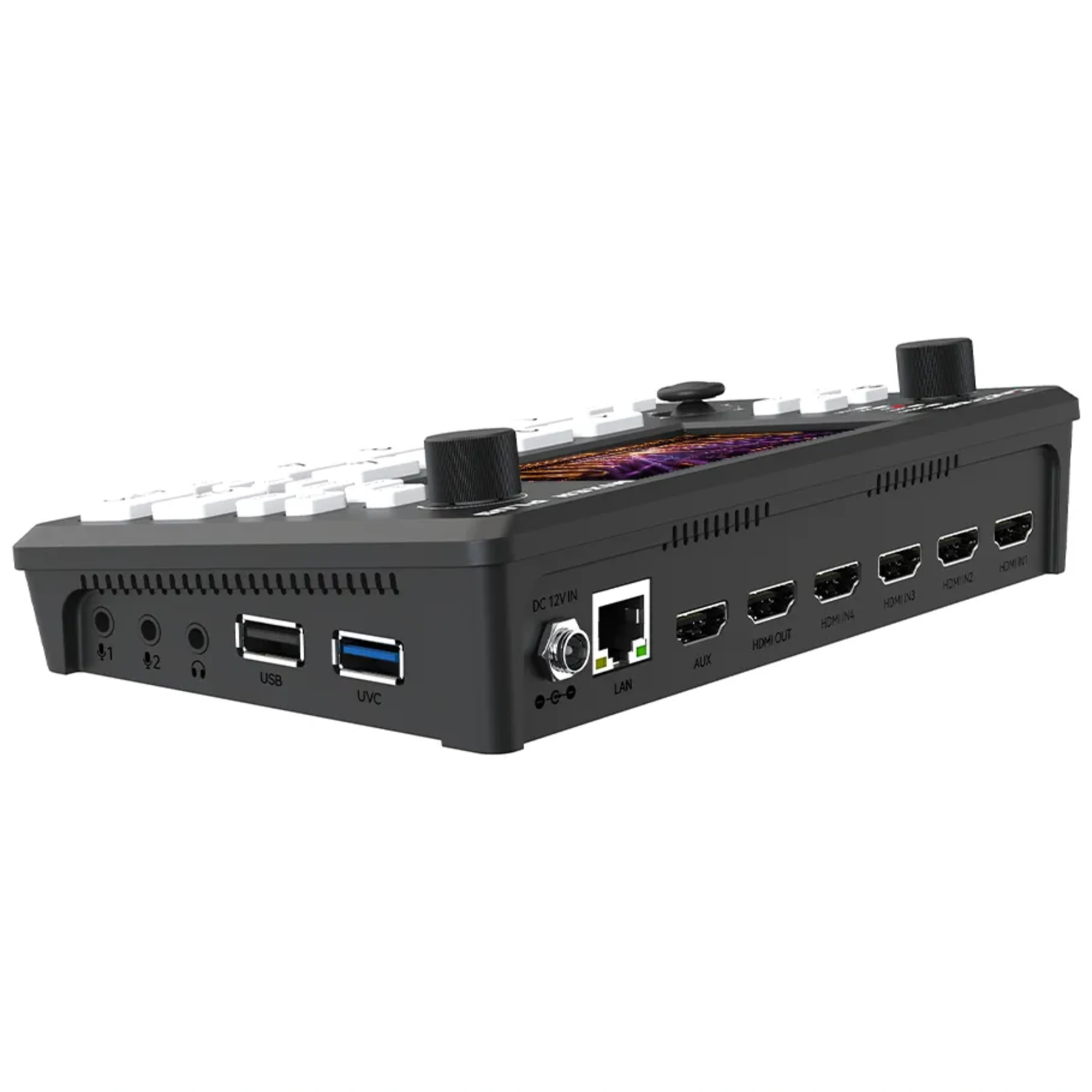

Inputs/Outputs
| Video Inputs | 4x HDMI |
| Audio Inputs | 2x 3.5 mm TRS Stereo Female |
| Video Outputs | 1x HDMI Program 1x HDMI 1x USB-A 3.1 |
| Audio Outputs | 1x 3.5 mm TRS Stereo |
| Other I/O | 1x RJ45 LAN 1x USB-A 2.0 Input |
| Multiview Output | 4-Way Multiview |
Video Formats
| Input Video Formats | HDMI: 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/60 fps |
| Output Video Formats | HDMI: 1080p at 24/25/30/50/60 fps 1080i at 50/60 fps USB-A: 1080p up to 60 fps |
| IP Video | 1920 x 1080 at 60p Encoding |
| IP Audio | Encoding |
Display
| Display Size | 4.5" |
Power
| Power Input | 1x Barrel Input (7 to 24 VDC at 2 A) |
| Power Consumption | 10 W |
General
| Wireless | No |
| Operating Conditions | -20 to 50°C |
| Storage Conditions | -20 to 60°C |
| Dimensions | 18.9 x 10.9 x 4.9 cm |
| Weight | 393 g |
What's Included
- CineTreak Mixer Plus 4-Channel HDMI Streaming Video Switcher with 4.5" Display
- 12 VDC 2A Power Adapter
- USB-A to USB-A Cable
- Barcode: 91127
- Supplier Code: Mixer Plus
