Overview

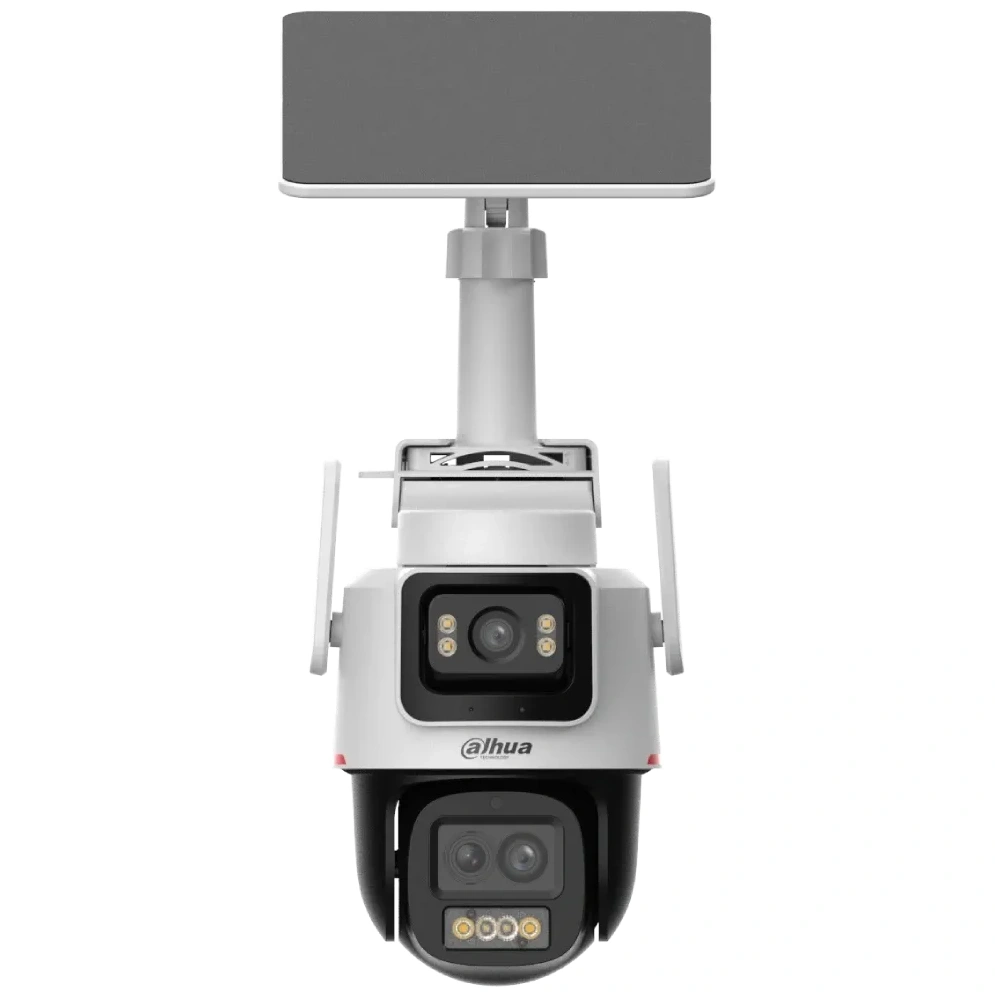

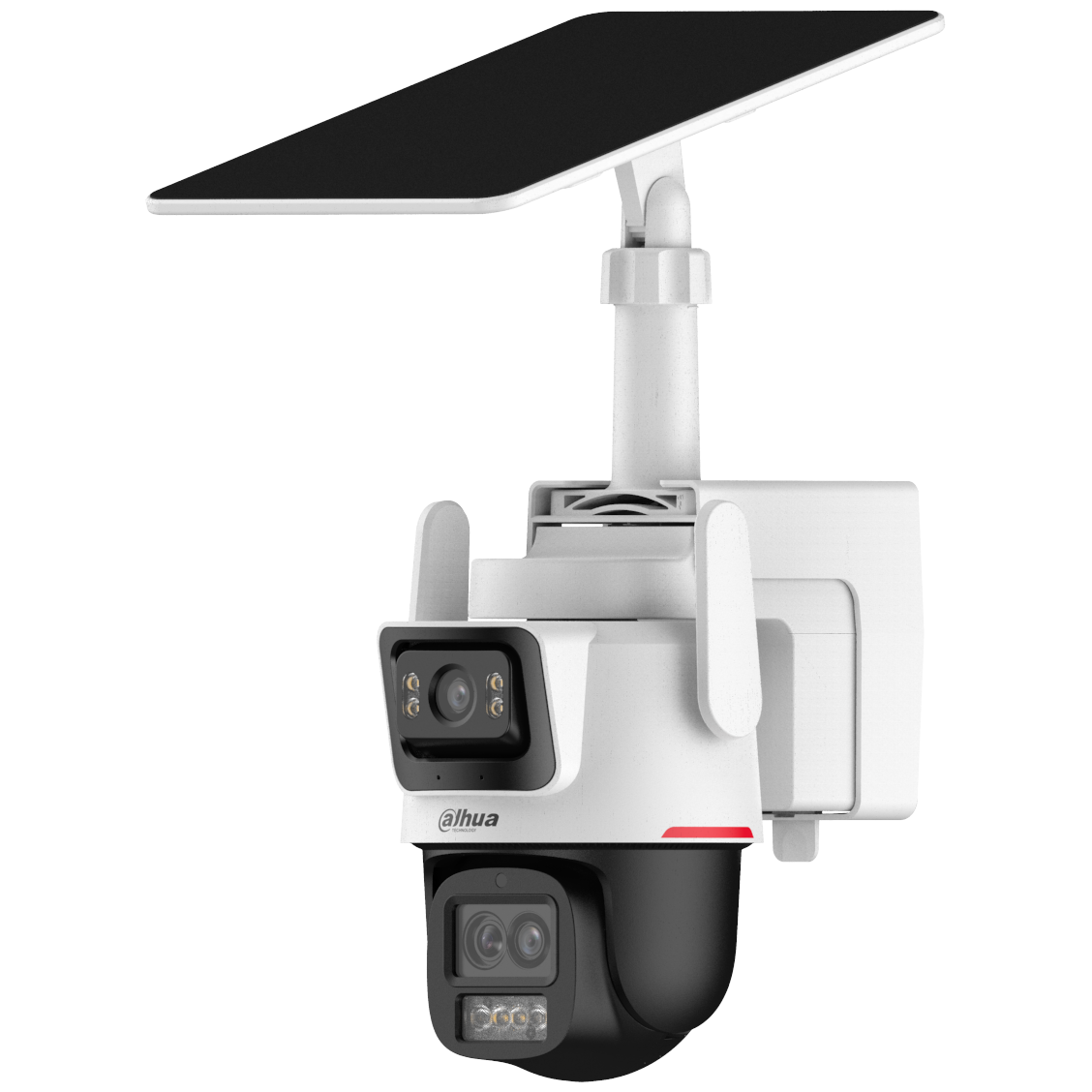

The Dahua 3MP 4G Solar-Powered PTZ Camera with 6x Hybrid Zoom, WizColor Night Vision & IP66 Rating is a wireless network security camera built for homes, retail stores, and small to medium sized businesses that need reliable coverage without running network cables. Powered by an 8W solar panel and a built-in 65Wh lithium battery, it operates independently of mains wiring while a built-in 4G module keeps it connected to the cloud and to the DMSS mobile app on Android and iOS. Combining a fixed 1/2.8" 3MP CMOS sensor with a motorised PT lens, it delivers 6x smart hybrid zoom, WizColor colour night vision, and AI powered human and vehicle detection, all housed in a dustproof, waterproof IP66 shell built for continuous outdoor use.
Highlights
- AOV mode enables 24/7 recording with ultra low power consumption.
- Built-in 4G connectivity keeps the camera online without a network cable.
- Solar panel and battery charging support uninterrupted operation.
- WizColor technology keeps footage bright and in colour, even at night.
- Coordinated fixed lens and PT lens monitoring delivers complete security vigilance.
6x Smart Hybrid Zoom
By combining multiple sensors with a set of fixed lenses, the camera delivers 6x hybrid zoom performance without sacrificing image quality at any focal length. When the built-in AI algorithm detects a human, the PT lens automatically zooms in and tracks the target's movement, capturing both wide overviews and close up detail from the same fixed installation point.
AI-ISP Image Processing
An onboard AI-ISP engine adapts image processing to the scene in real time, helping the camera resolve fine detail and produce clean, accurate footage across a range of lighting conditions.
AOV Mode for 24/7 Low-Power Recording
Always-On Video (AOV) mode gives the camera round the clock recording while keeping power draw to a minimum. Advanced AI algorithms can wake the camera to run detection even at long range; during quiet periods it records at a low frame rate, then automatically escalates to a higher frame rate the moment an event is detected for smooth, continuous footage.
4G Connectivity, No Cables Required
A built-in high performance 4G module lets the camera register directly to cloud platforms once a SIM card is inserted, so it can be installed anywhere without running network cabling. Live monitoring and remote control are available from the DMSS mobile app over the 4G network.
Solar & Battery Powered
Power comes from a built-in 65Wh ternary lithium battery topped up by an included 8W solar panel, with USB-C charging (supporting QC2.0 fast charging) available as a backup. Together they keep the camera running continuously without relying on mains power.
Local Storage & Remote App Control
Footage records locally to a microSD card while DMSS software manages the camera remotely from a phone or tablet.
- Supports microSD cards up to 512GB
- DMSS management software for remote access
- Android and iOS mobile app support
SMD 3.0 Human & Vehicle Detection
Deep-learning powered SMD (Smart Motion Detection) 3.0 filters out nuisance alerts from motion that isn't a genuine concern, quickly recognising humans and vehicles and triggering an alarm only when an actual intrusion occurs. Auto tracking lite and linkage tracking keep the PT lens following a detected target automatically.
Two-Way Talk & Active Deterrence
A built-in high sensitivity microphone and speaker enable two-way talk through the mobile app, while active deterrence tools warn off intruders before they get close.
- White light warning
- 3 selectable sound alarms, adjustable volume 1 to 100
- Play times configurable from 1 to 10
Tap and View PT Control
Tapping any point on the live feed from the fixed lens instantly rotates and focuses the PT lens on that spot, delivering a clear close up view of the selected area without manual joystick control.
IP66 Weatherproof & Rugged Design
The camera is dustproof and waterproof to IP66 and includes TVS 2000V lightning protection along with surge and voltage transient protection, making it suited to sustained outdoor installation in exposed locations.
General
| PTZ Pan/Tilt Range | Fixed Lens: Pan 0° to 210°, Tilt -7° to +20° (Manual) PT Lens: Pan 0° to 350°, Tilt 0° to +90° (Electric) |
| PTZ Control Speed | Manual Control: Pan 40°/s, Tilt 40°/s Preset: Pan 40°/s, Tilt 40°/s |
| Presets/Tours | 50 Presets 8 Tours (up to 32 Presets per Tour) |
| Power-Off Memory | Yes |
| Certifications | CE: EN 55032, EN 55035, EN 50130-4, EN 61000-3, EN 62368-1, EN 301489 |
| Management Software | DMSS |
| Mobile Client | Android, iOS |
Optical
| Image Sensor | Fixed Lens: 1/2.8" CMOS PT Lens: 1/2.8" CMOS |
| Resolution | Fixed Lens: 3MP (2304 x 1296) PT Lens: 3MP (2304 x 1296) |
| Lens Focal Length | Fixed Lens: 2.8mm PT Lens: 3.6mm, 8.4mm |
| Max Aperture | Fixed Lens: F1.0 PT Lens: 3.6mm F1.0, 8.4mm F1.0 |
| Field of View | Fixed Lens: H 93.5°, V 51.9°, D 110.1° PT Lens 3.6mm: H 81.5°, V 44.3°, D 96.3° PT Lens 8.4mm: H 15.1°, V 8.4°, D 17.8° |
| Close Focus Distance | Fixed Lens: 1.1m PT Lens 3.6mm: 1.7m PT Lens 8.4mm: 6m |
| Min. Illumination | 0.0005 lux @ F1.0 (Colour, 30 IRE) 0 lux (Illuminator On) |
| Illumination Distance | Fixed Lens: 30m (Warm Light) PT Lens: 50m (Warm Light) |
| Illuminator | 4x Warm Light (Fixed Lens) 4x Warm Light (PT Lens) Control: Manual, Auto, Off |
| WDR | DWDR (Fixed Lens & PT Lens) |
Imaging
| Video Compression | Smart H.265+ |
| Streaming Capability | 1 Stream |
| Video Resolution | 3M (2304 x 1296), 1080p (1920 x 1080), 720p (1280 x 720), 640 x 360 |
| Video Frame Rate | Main Stream: 15fps at 3M/1080p/720p/640 x 360 (Fixed Lens & PT Lens) |
| Bit Rate Control | VBR |
| Video Bit Rate | H.265: 54 to 1280 kbps |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Image Rotation | 180° |
| S/N Ratio | ≥55 dB |
| Motion Detection | Yes |
| Smart Detection | Human Detection, Vehicle Detection |
| Smart Tracking | Auto Tracking Lite, Linkage Tracking |
| SMD | SMD 3.0 |
| Active Deterrence | Light Warning: White Light Sound Warning: 3 Selectable Alarms, Volume 1 to 100, Play Times 1 to 10 |
Inputs/Outputs
| Audio I/O | Input: 1 Channel (Built-in Mic) Output: 1 Channel (Built-in Speaker) |
| Alarm Linkage | Warning Light, Audio |
| Alarm Event | Motion Detection, Human Detection, Vehicle Detection |
| Storage | MicroSD Card (up to 512GB) |
| Network | 4G |
| Wireless Carrier Frequency Band | EAU/EUR: LTE-FDD B1/B3/B5/B7/B8/B20/B28, LTE-TDD B38/B40/B41 LA: LTE-FDD B2/B3/B4/B5/B7/B8/B28/B66, LTE-TDD B38/B40/B41 |
| Max Transmission Power | 4G: Power Class 3, 23 dBm ± 2.7 dB |
Power
| Power Supply | Built-in 65Wh Lithium Battery 8W Solar Panel Charging: USB Type-C (Supports QC2.0) |
| Power Consumption | Super Power Saving Mode: 40 mW (4G Keep-Alive) AOV Mode: 170 mW (1 Frame Every 2 Seconds, SD Card Recording, 4G Keep-Alive) Performance Mode 1: 2.4 W (4G Streaming, SD Card Recording, PTZ Static, Illuminator Off) Performance Mode 2: 3.7 W (4G Streaming, SD Card Recording, PTZ Static, Illuminator On) Maximum: 8.0 W (4G Streaming, SD Card Recording, PTZ Moving, Illuminator On, Speaker On) |
| Power Adapter | Optional |
| Battery Capacity | 65 Wh |
Physical
| Dimensions | 22.3 x 13 x 21.5 cm (L x W x H) |
| Net Weight | 1.8 kg |
| Gross Weight | 2.5 kg |
Environmental
| Operating Temperature | -20°C to +60°C |
| Charging Temperature | -10°C to +50°C |
| Discharging Temperature | -20°C to +60°C |
| Operating Humidity | ≤95% |
| Protection | IP66, TVS 2000V Lightning Protection, Surge Protection, Voltage Transient Protection |
What's Included
- Dahua 3MP 4G Solar-Powered PTZ Camera with 6x Hybrid Zoom, WizColor Night Vision & IP66 Rating
- 8W Solar Panel
- Barcode: 92839
- UPC Barcode: 6937552480995
- Supplier Code: IPCPTS2649C-3E3Z
