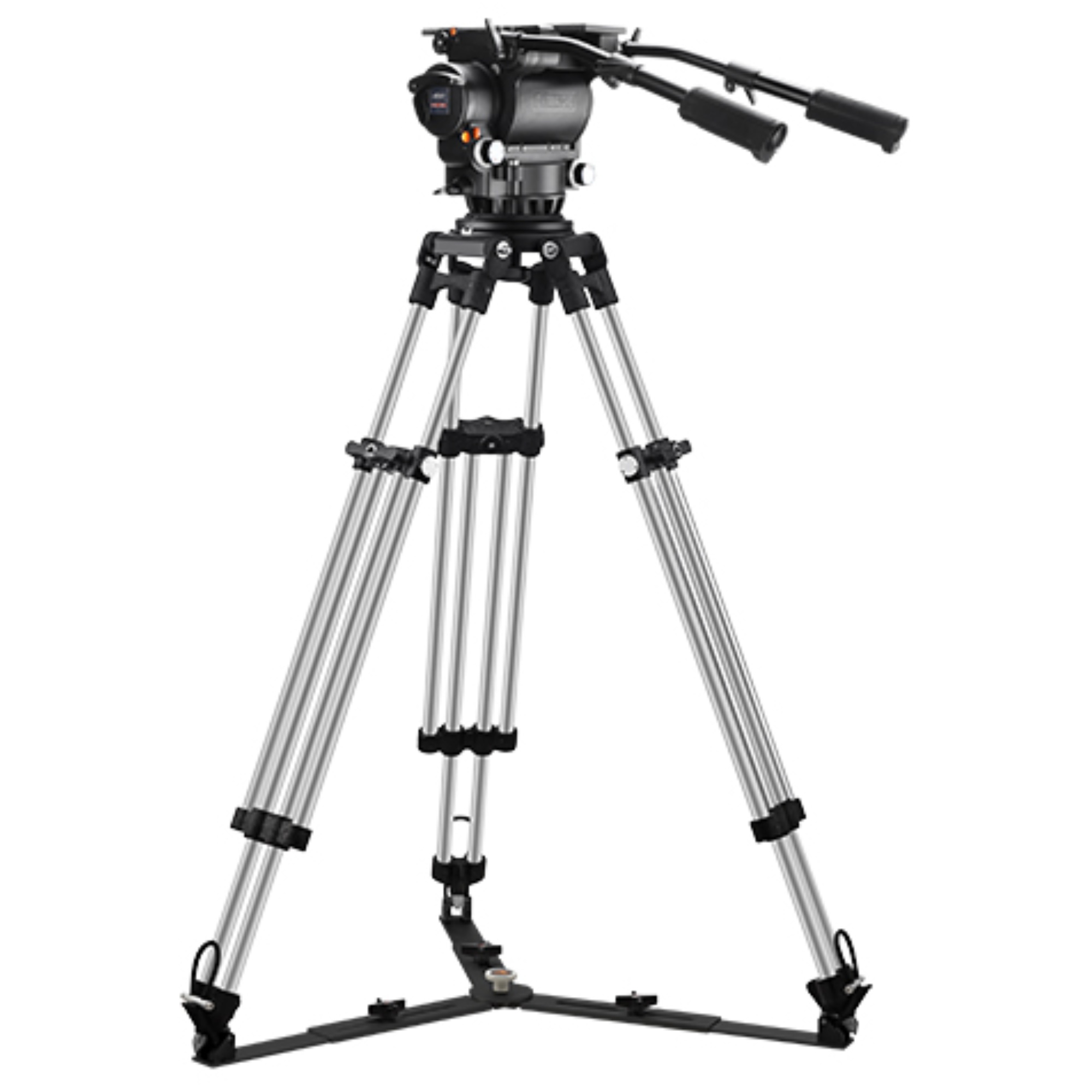

E-Image MOTUS 72 Heavy-Duty Mitchell Fluid Head Tripod System (Mitchell Base)

Overview

The E-Image MOTUS 72 Heavy-Duty Mitchell Fluid Head Tripod System combines the MH72 fluid head with the FILM-Mitchell L aluminum tripod to support large cinema cameras, studio configurations, and long-lens broadcast setups weighing up to 72 kg. Designed for demanding production environments, the system features a Mitchell base interface, continuous stepless counterbalance, independent pan and tilt drag adjustment, and a reinforced one-stage aluminum tripod platform engineered for maximum rigidity and stability.

The MH72 fluid head incorporates a continuous variable counterbalance system with 0 to 100% readout for precise payload balancing across varying camera builds. Independent 12-step pan and tilt drag controls provide smooth movement and repeatable operation, while the one-press sliding plate assembly and double-locking quick release system allow fast camera mounting and secure positioning. The FILM-Mitchell L tripod uses a die-cast aluminum structure rated for payloads up to 188 kg and includes an adjustable metal ground spreader, dual telescopic pan handles, illuminated bubble level, hard tripod case, and protective safety case for professional studio and cinema production workflows.

Core Features

• Supports camera payloads up to 72 kg for cinema, broadcast, and studio camera systems.
• Continuous stepless counterbalance system provides precise load balancing with 0 to 100% adjustment readout.
• Independent 12-step pan and tilt drag controls deliver smooth and repeatable camera movement.
• Mitchell base mounting interface provides compatibility with professional cinema support systems.
• Double-locking quick release system secures moderate to heavy camera payloads during operation.
• One-press sliding plate assembly enables rapid camera mounting and positioning adjustments.
• Heavy-duty one-stage aluminum tripod supports payloads up to 188 kg.
• Adjustable metal ground spreader increases stability and allows lower working heights.
• Illuminated bubble level assists with leveling in dark studio and production environments.
• Includes dual telescopic pan handles, safety transport case, and hard tripod case.

Continuous Counterbalance System

The MH72 fluid head features continuous stepless counterbalance adjustment with a 0 to 100% readout, allowing precise balancing across different camera builds, cinema lenses, and accessory configurations.

Heavy-Duty Mitchell Tripod Design

The FILM-Mitchell L tripod uses a reinforced aluminum alloy structure with a die-cast construction process for increased rigidity and stability. The adjustable metal ground spreader supports lower shooting positions while maintaining system stability on studio floors and production sets.
