Overview

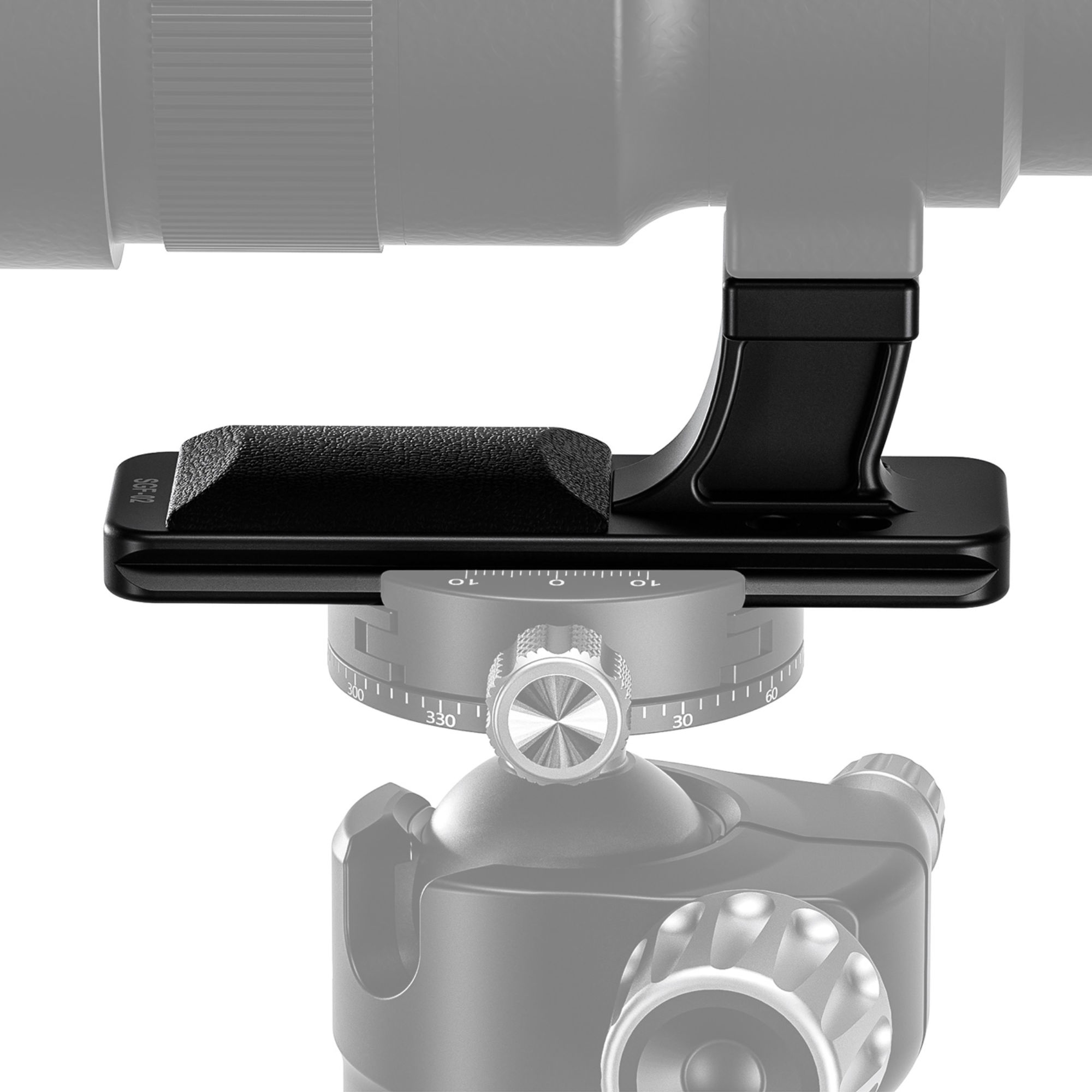

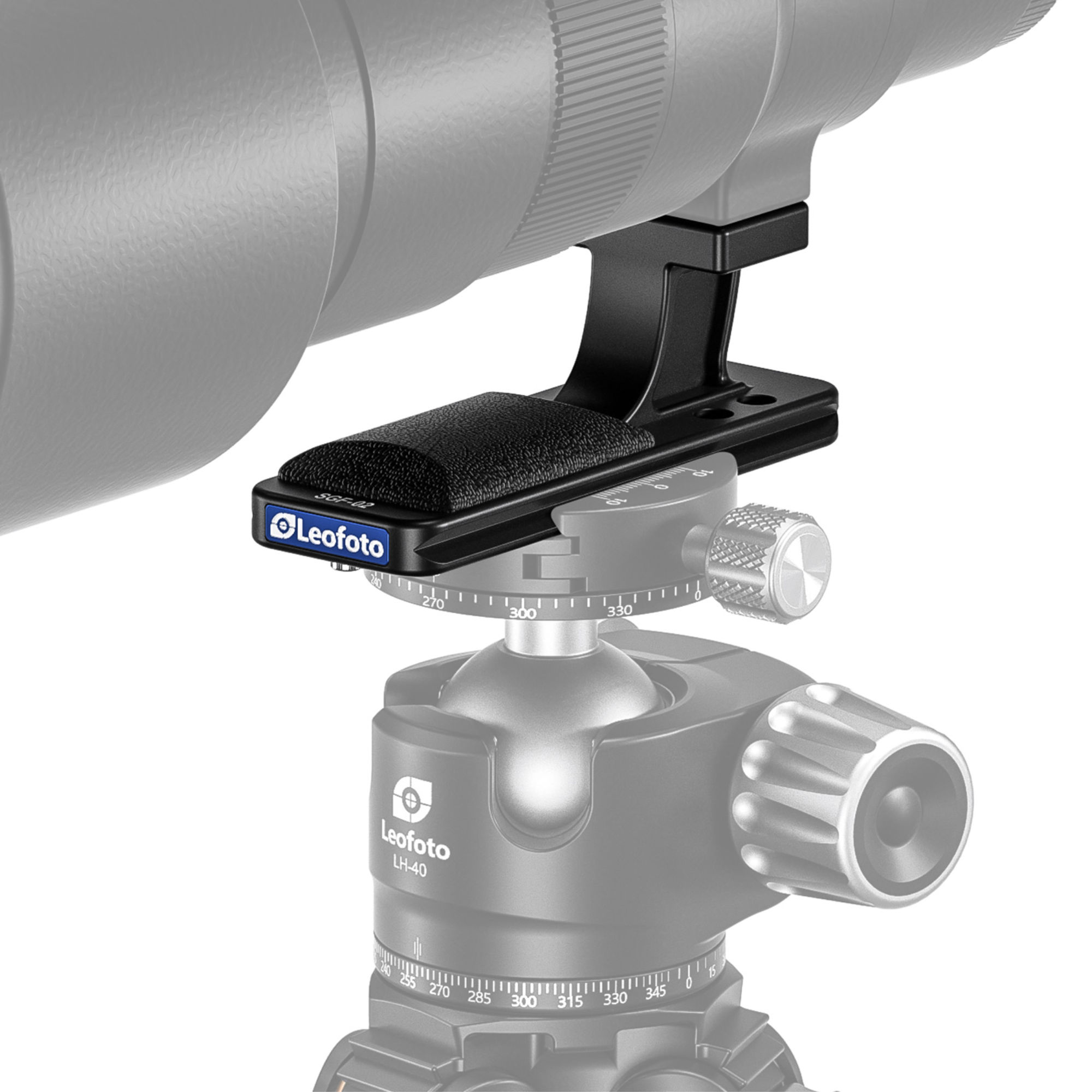

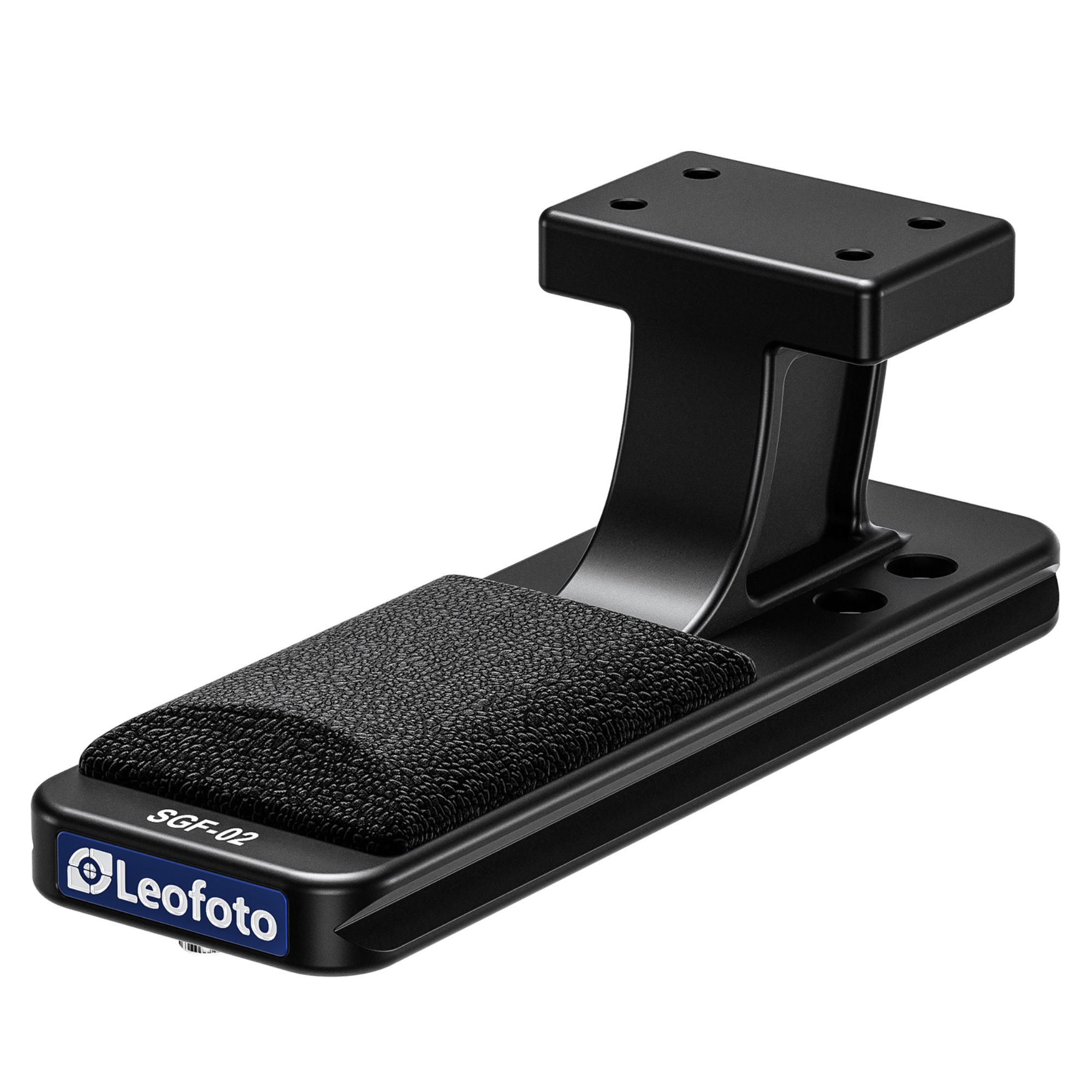

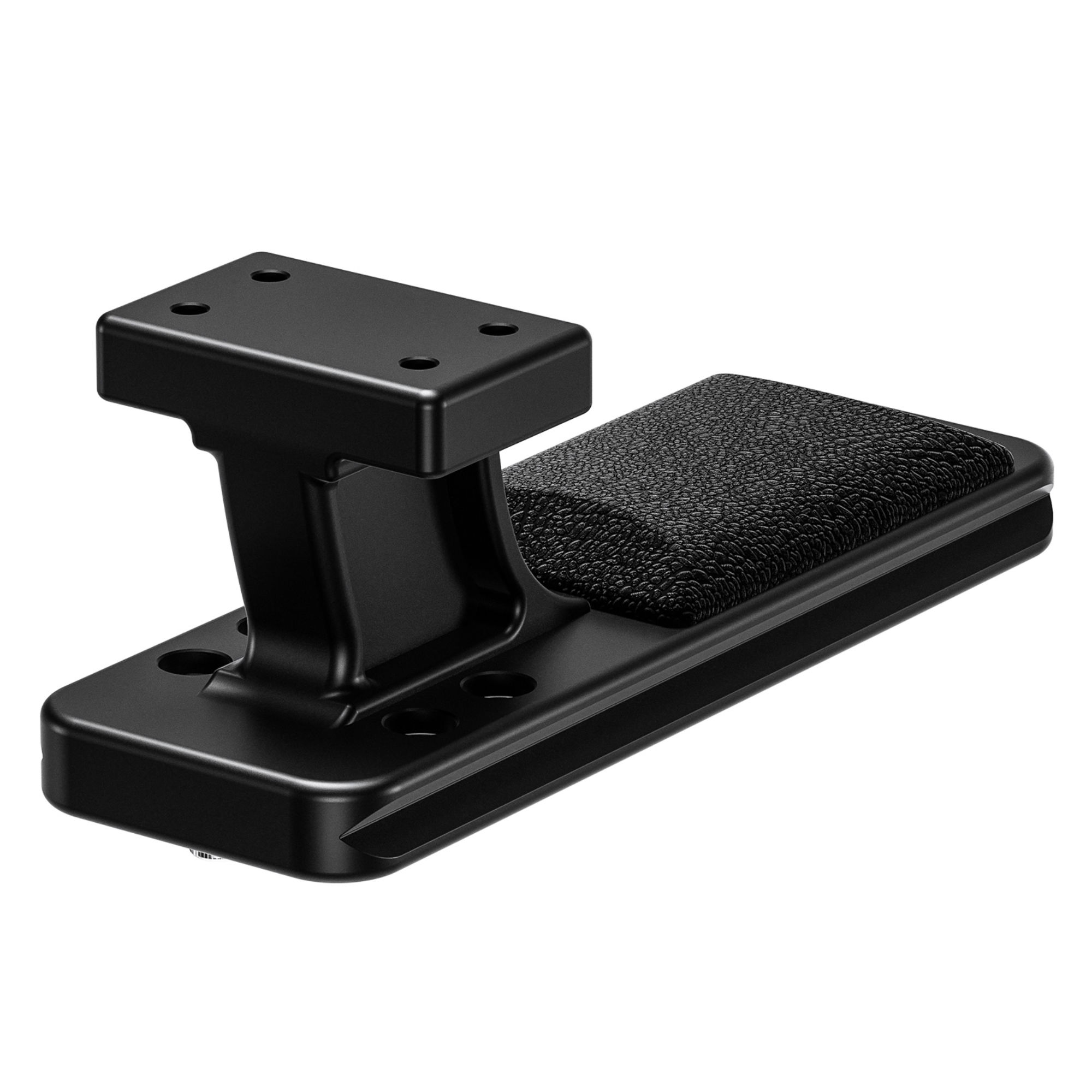

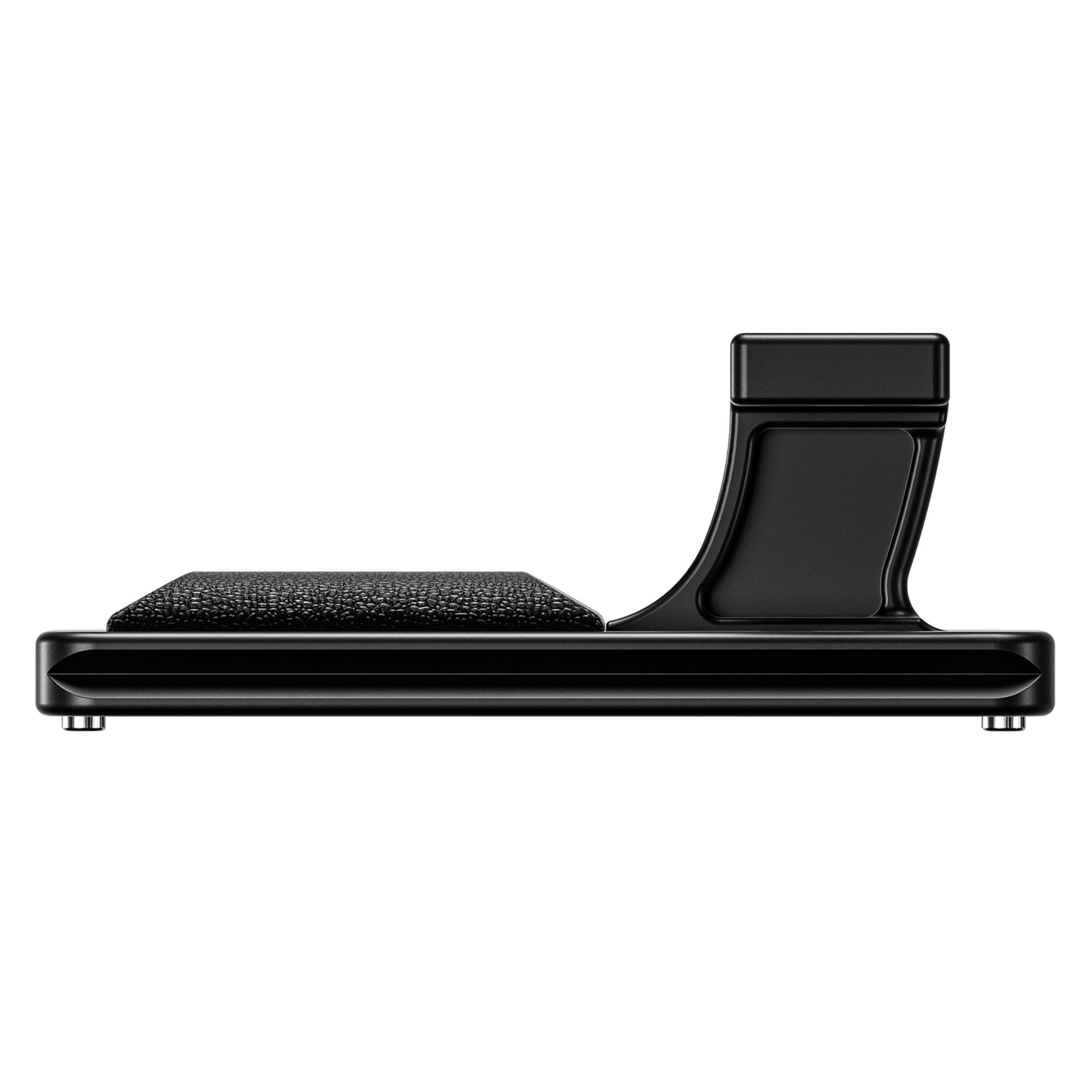

The Leofoto SGF-02 Lens Foot for Select Sigma Lenses is an aluminum replacement foot fitted with a textured silicone pad for a comfortable, ergonomic grip. It integrates an Arca-type dovetail with both 1/4"-20 and 3/8"-16 receivers, so it mounts directly to compatible quick release clamps and tripod heads, plus a QD socket for attaching a strap or sling.
Arca-Type Dovetail Mount

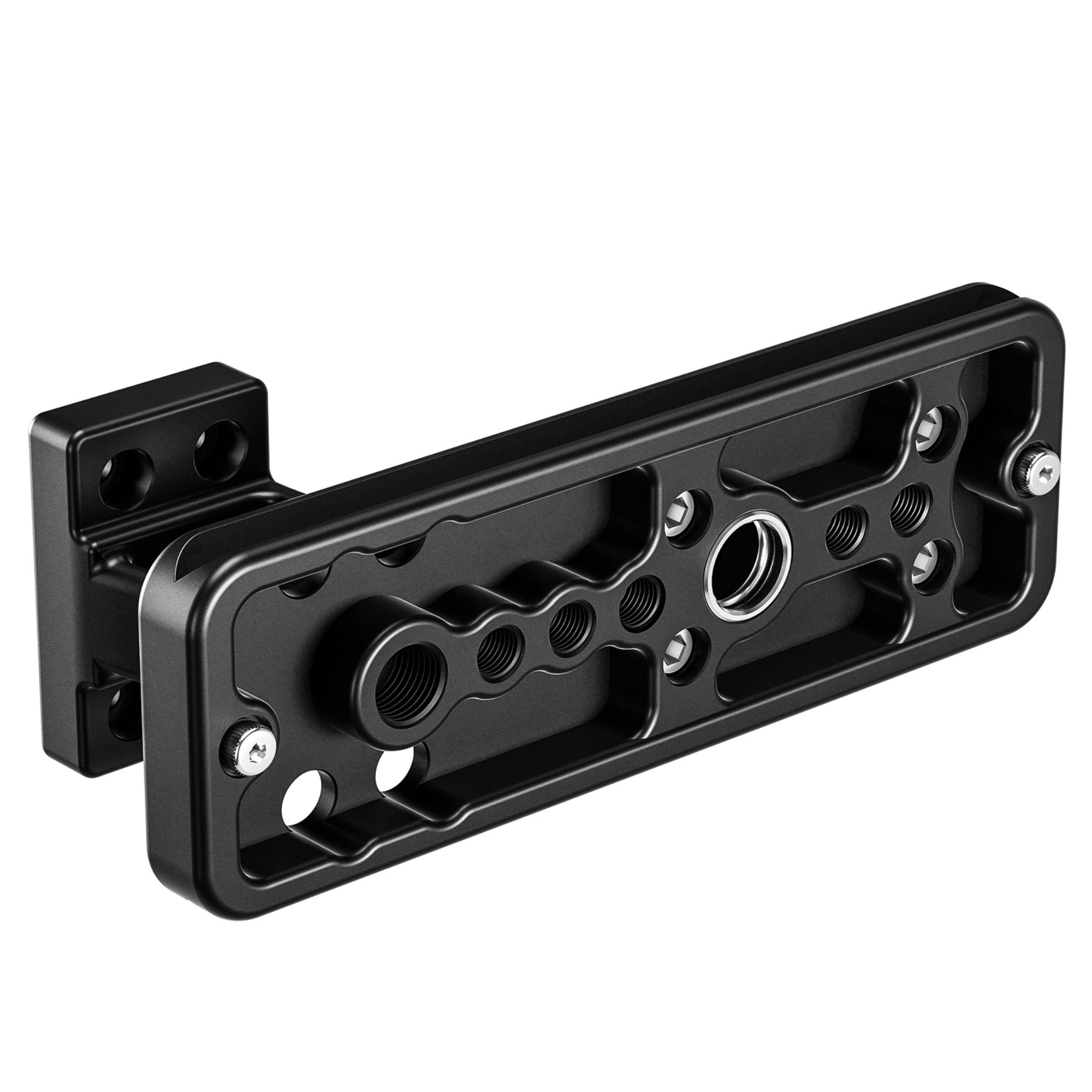

Dual 1/4"-20 and 3/8"-16 receivers let the dovetail foot drop straight onto a wide range of Arca-type compatible clamps and tripod heads.
Quick Disconnect Strap Socket and Silicone Grip

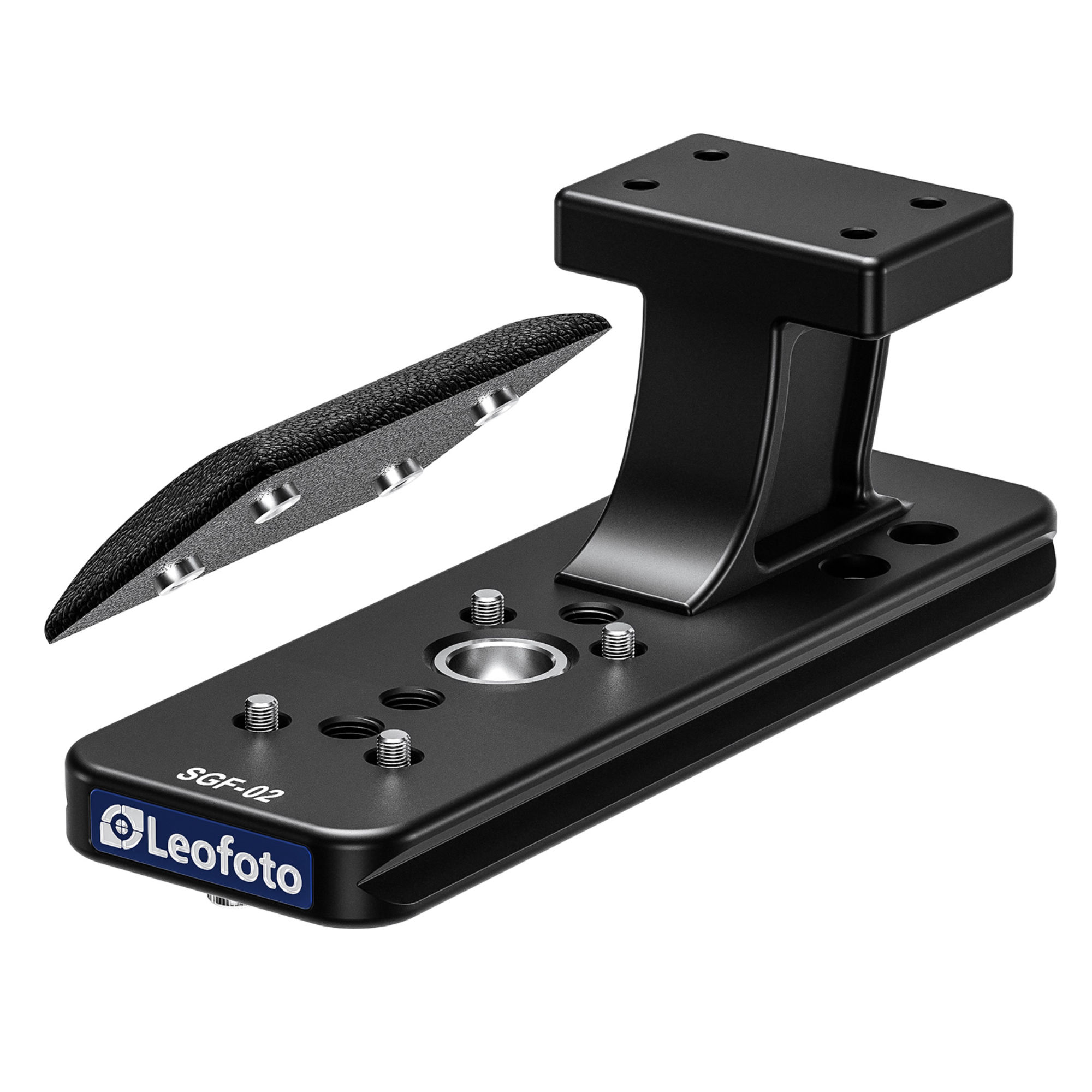

A built-in QD socket allows quick attachment of a compatible strap or sling, while the textured silicone pad adds a comfortable, non-slip grip in hand.
Safety Stop Screws
Two screws are included for use as optional safety stops, adding extra security against accidental release from a partially open quick release clamp.
Compatibility:
- Sigma 500mm F/5.6 DG DN OS
- Sigma 70-200mm F/2.8 DG DN
- Sigma 200mm F/2 DG OS Sports
General
| Mounting | 5 x 1/4"-20 Female 3/8"-16 Female |
| Plate Type | Arca-Type |
| Quick Disconnect System | QD |
Physical
| Materials | Aluminum, Silicone |
| Dimensions | 114 x 42 x 38 mm |
| Weight | 117 g |
What's Included
- Leofoto SGF-02 Lens Foot for Select Sigma Lenses
- 2 x M3 Screw
- Barcode: 89229
- UPC Barcode: 6940828315280
- Supplier Code: SGF-02
