Overview

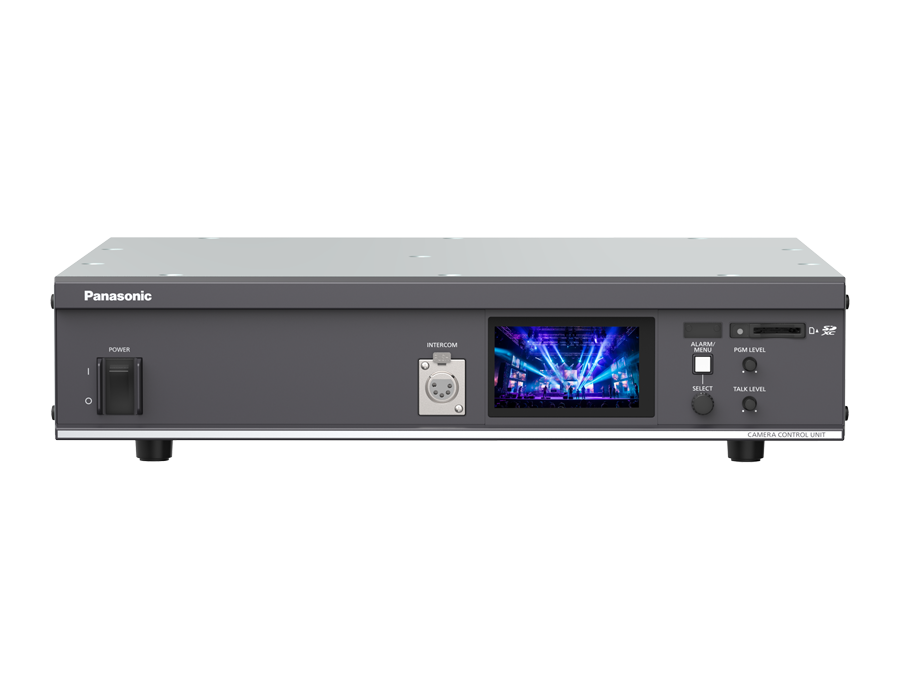

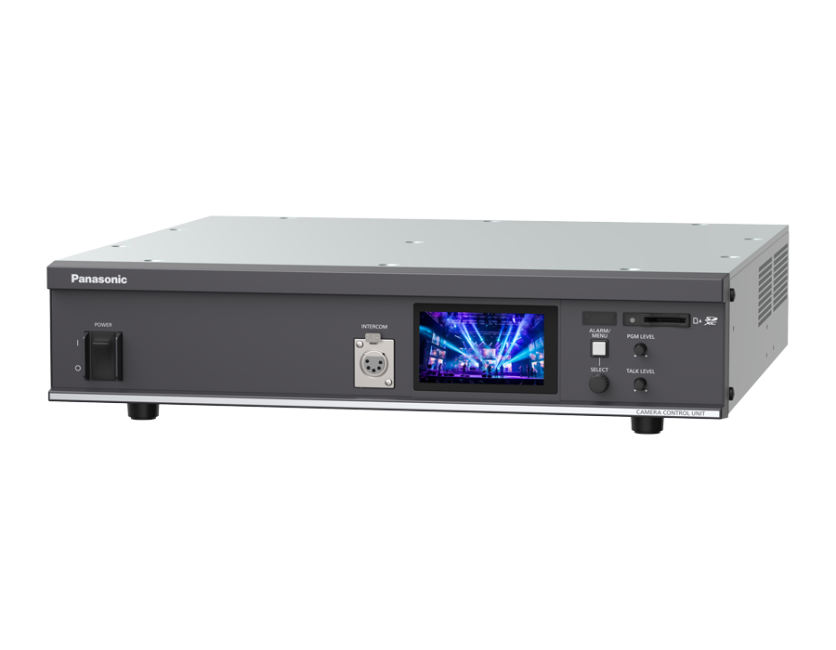

The Panasonic AK-UCU700ESJ Camera Control Unit/Base Station (LEMO Connector) supports advanced studio camera operations with simultaneous 4K HDR and HD SDR output. It provides versatile IP connectivity with ST 2110, Dante®, NDI® High Bandwidth, and SRT support, enabling high-quality video and networked audio in professional studio environments. This CCU features eight standard outputs including two 12G-SDI lines, a 3.5-inch color LCD touch panel for intuitive operation, uncompressed optical transmission up to 2,000 m, high-speed shooting up to 4x HD and 2x 4K, and remote configuration via a PC browser.
Core Features
- Supports ST 2110 IP-transmission standard
- JPEG XS compression for 4K/HD video
- Dante® network audio support
- NDI® High Bandwidth and SRT streaming output
- Redundant operation with dual SFP28 terminals
- Eight standard video outputs
- Supports high-speed HD/4K recording
Video & Audio
- UHD: 3840 x 2160/59.94p, 50p, 29.97p, 25p, 23.98p
- HD: 1080/59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
- HD High Speed (AK-UCX100): up to 240fps HD, 120fps 4K
- Microphone output: 0 dBm/600 Ω, 2 XLR lines
- Intercom and tally input/output for production control
Connectivity & Operation
- LAN and optical LAN trunk connections for camera communication
- RS-422 ROP and MSU control interfaces
- 3.5-inch touch panel LCD for monitoring and control
- Remote configuration via PC web browser
General
| Power Supply | 100 V – 240 V AC, 50/60 Hz |
| Power Consumption | 550 W (130 W without camera connected) |
| Camera Power Output | AC 240 V, 1.46 A, 50/60 Hz |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -20 °C to 60 °C |
| Humidity | 10 % to 90 % (no condensation) |
| Weight | Approx. 9.1 kg (AK-UCU700) |
| Dimensions (W x H x D) | 42.4 x 8.85 x 40 cm |

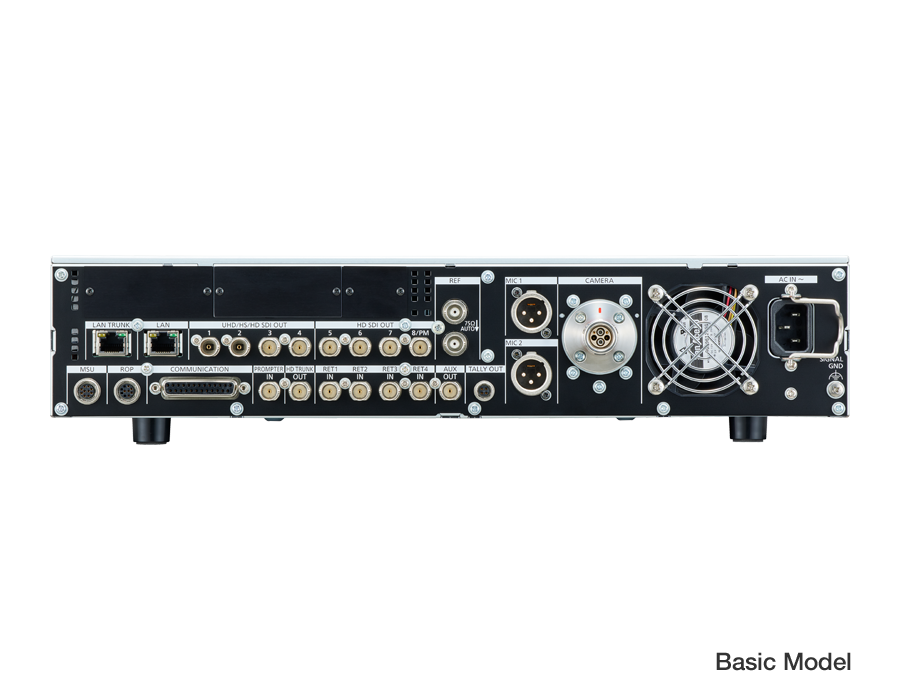

Video Output
| 3G/HD-SDI | 5 lines |
| 12G/6G/3G/HD-SDI | 2 lines |
| HD-SDI | 1 line (shared with picture monitor output) |
| HD TRUNK output | 3G/HD-SDI: 1 line |
| AUX Output | 3G/HD-SDI: 1 line |
| Return Input | 3G/HD-SDI: 4 lines |
| HD TRUNK (Prompter) Input | 3G/HD-SDI: 1 line |
| Reference Input | BB / tri-level: 1 line, auto-detection and loop-through |
Audio & Communication
| Microphone Output | 0 dBm/600 O, 2 lines (XLR, 3-pin, male) |
| Intercom Input/Output | 2 lines, ENG/PROD, 0 dBm/600 O or 1 V [p-p]/200 O |
| PGM Input | 2 lines (0 dBm/600 O) |
| Tally Input | 1 input each (red, green, yellow) |
| Tally Output | Red, green, alarm output via open collectors |
| ROP | RS-422, 1 line, 16 V DC output |
| MSU | RS-422, 1 line, GPI for control |
Interfaces
| LAN TRUNK | Optical connection with camera side, 1 line |
| LAN | PC connection for web distribution, 1 line |
| LCD Monitor | 3.5 inch color LCD, touch panel supported |
What's Included
- Panasonic AK-UCU700ESJ Camera Control Unit/Base Station (LEMO Connector)
- Barcode: 83942
- UPC Barcode: 5025232955336
- Supplier Code: AK-UCU700ESJ
