Overview

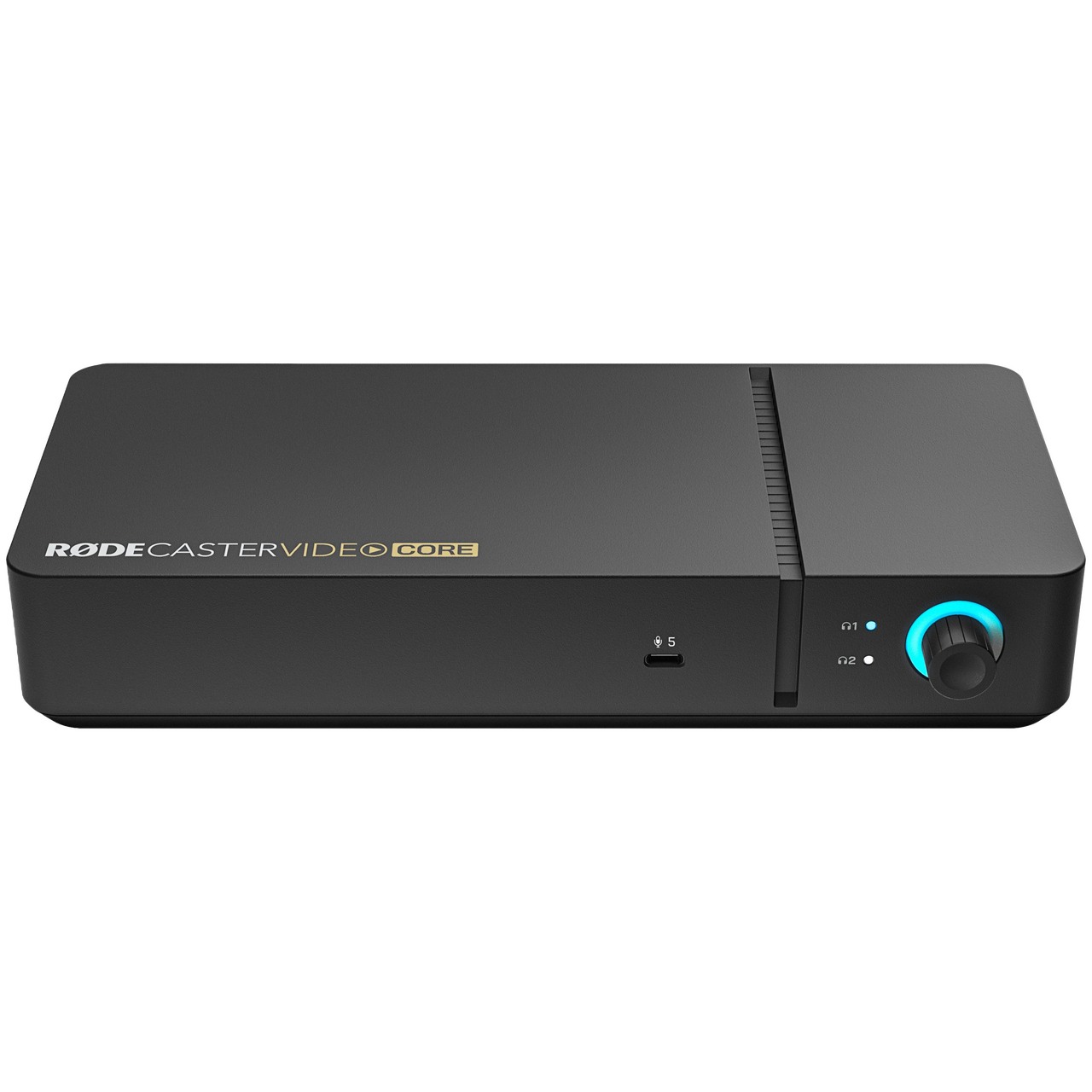

The RODE RODECaster Video Core is a versatile all-in-one production console designed for social media creators, podcasters, and live event producers. It combines HD video switching and studio-grade audio control in a compact, software-driven interface. Seamlessly integrating with RODE’s audio ecosystem, it supports analog, digital, and networked inputs for flexible, professional production.
With support for up to 16 audio sources and nine stereo channels, it delivers full-featured production capabilities in a smaller footprint. Whether streaming, recording, or managing live events, the Video Core provides intuitive, real-time control for complex workflows.
Core Features
- Compact console with HD video switching and studio-grade audio control
- Supports four 1080p60 video sources (three HDMI, one USB-C) with layered scenes
- Intelligent auto-switching based on active audio channels for seamless transitions
- Up to 16 audio sources or nine stereo channels with Revolution preamps and Aphex VoxLab processing
- Direct streaming to major platforms and multi-track recording for flexible post-production
Video Interface
The Video Core allows you to manage multiple video sources efficiently. Multiview monitoring shows program and preview feeds, live input thumbnails, audio levels, scene status, and recording indicators. Two downstream keyers handle overlays and logos, while two chroma-keyers manage background replacement. Internal media players can play MP4 videos, images, or WAV audio from the 24GB of onboard storage.
Networked NDI cameras and PTZ controls expand production possibilities, and dual-cam streaming is available via the RODE Capture app for mobile devices.
Audio Sources
Audio capture is precise and versatile. Two XLR-1/4" combo jacks with low-noise, high-gain Revolution Preamps ensure clean input for microphones and instruments. USB-C ports allow integration with RODE USB microphones, RODECaster Pro II, and multichannel outputs.
Each channel benefits from Aphex VoxLab processing, including EQ, compressor, noise gate, high-pass filter, de-esser, Aural Exciter, Big Bottom, and panning. This setup delivers professional audio quality with minimal configuration.
RODECaster Companion App
The companion app provides advanced scene setup and remote control of the device. It allows automated audio-triggered video switching and detailed control of audio processing, routing, and streaming profiles. Creators can customize device settings and streamline workflows for efficient content production.
Intelligent Auto-Switching
Hands-free video transitions happen automatically when participants speak, ensuring natural and professional-looking production. Switching priorities and screen-time algorithms make transitions feel like a live director is managing the flow. This feature is ideal for solo operators or small teams managing multi-source productions.
Streaming & Recording
The Video Core supports direct streaming to platforms like Facebook, YouTube, and Twitch via Ethernet. It also records to external USB devices for flexible post-production.
- Program feed recorded as H.264/AVC MP4 with embedded AAC stereo mix
- Up to nine independent stereo WAV tracks for isolated audio recording
- ISO recordings provide maximum flexibility for editing and post-production
Mix Effects
| Available M/E Layers | 9 M/E |
| Effect Types | 2x Chroma Key |
| Downstream Keys | 2x Overlay |
| Audio Mixing | 16-Channel Mixing |
Processing
| Switching Type | Software |
| Processing Resolution | 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
| Color Processing | 8-Bit 4:4:4 RGB |
| Audio Processing | 48 kHz / 32-Bit, 48 kHz / 24-Bit |
Input
| Number of Video Input Sources | 4 |
| Video Inputs | 3x HDMI (1.4b) Female, 1x USB-C (UVC) Female |
| Input Video Format | HDMI: 8/10/12-Bit 4:4:4/4:2:2 RGB, YUV, 1080p 23.98–60 fps, 1080i 25/29.97/30 fps; USB-C: 8-Bit 4:2:2 YUV, 1080p 23.98–60 fps |
| Audio Inputs | 2x Combo XLR-1/4" TRS, 5x USB-C |
| Input Audio Format | Analog, LPCM 48 kHz |
Output
| Video Output Channels | 2 |
| Video Outputs | 1x HDMI, 1x RJ45 (NDI) |
| Output Video Format | HDMI: 1080p 24/25/30/50/60 fps; RJ45: 1080p 23.98–60 fps |
| Audio Outputs | 2x 1/4" TRS |
| Output Audio Format | Analog |
Connectivity
| Digital Audio Decoding | LPCM |
| HDCP Support | No |
| IP Video | H.264/H.265: 1920x1080 at 23.98–60p Encoding |
| IP Audio | AAC-LC/PCM Encoding |
| Transport Protocols | NDI/HX2, NDI/HX3, RTMP, TCP |
| Compatible Services | Facebook Live, Twitch, YouTube Live |
Internal Recording
| Internal Storage | 24 GB |
Hardware
| OS Compatibility | macOS 11 or later / Windows 10–11 |
Power
| Power I/O | 1x USB-C Input |
| Power Consumption | 20 VDC at 2.25 A (45 W) |
General
| Dimensions (L×W×H) | 23.9 x 12.5 x 4.55 cm |
What's Included
- RODE RODECaster Video Core All-in-One Production Console
- SuperSpeed USB-C Cable
- Power Supply
- Barcode: 89365
- UPC Barcode: 698813019045
- Supplier Code: RODRCVCOREI
