Overview

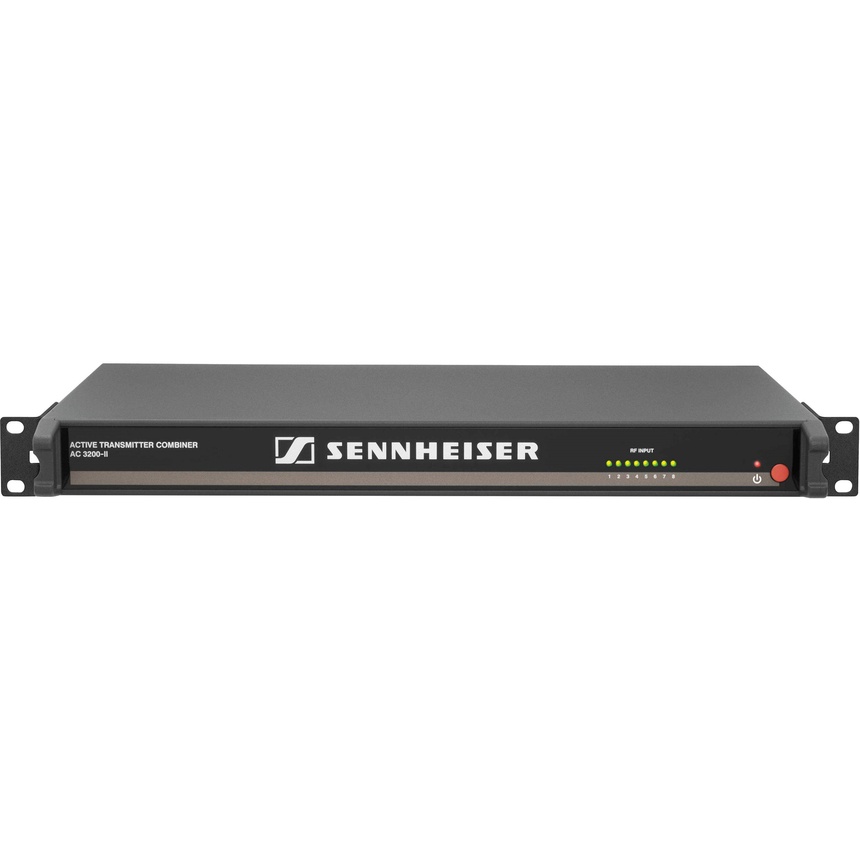

The Sennheiser AC 3200-II is an active 8-channel transmitter combiner designed for bundling antenna signals in large wireless monitoring systems. Ideal for the 2000 Series rack-mount monitor transmitters, it is perfect for large productions where reliable transmission and long reach are key. The AC 3200-II allows up to eight signals to be transmitted from a single antenna, making it an indispensable tool for efficiently reducing intermodulation between transmission channels. Linear power amplifiers handle up to 100 mW per channel without loss, and LEDs for each channel provide a reliable system overview.
Core Features
Key Features:
- Compatible with SR 2050XP IEM, SR 2000XP IEM, SR 300 IEM G3, and legacy EW and 3000 Series monitor transmitters
- Active 8-channel, 0 dB transmitter combiner with highly constant RF output power over the entire frequency range
- Significant improvement of RF performance for multi-channel systems
- Broadband RF design to cover the UHF frequency range from 500 to 870 MHz
- Maximum input power of 250 mW
- LEDs on the front show whether a signal is present at the RF input
Specifications
| Impedance | 50 O |
| Attenuation | 0 dB (± 1 dB) |
| Power Consumption | 90 W (maximum) |
| RF Frequency Range | 500 to 870 MHz |
| Power Supply | 12 VDC |
| Antenna Connector | BNC |
| Current Consumption | Maximum 7.5 A |
| Operating Temperature | -10 to +45°C |
| Dimensions | 436.0 x 215.0 x 44.0 mm |
| Weight | Approximately 4.0 kg |
What's Included
- Sennheiser AC 3200-II High-Power 8:1 Antenna Combiner
- NT12-125D In-Line Power Supply
- Power Cable
- Self-Adhesive Device Foot
- Barcode: 83057
- UPC Barcode: 615104226005
- Supplier Code: 505497
