Overview

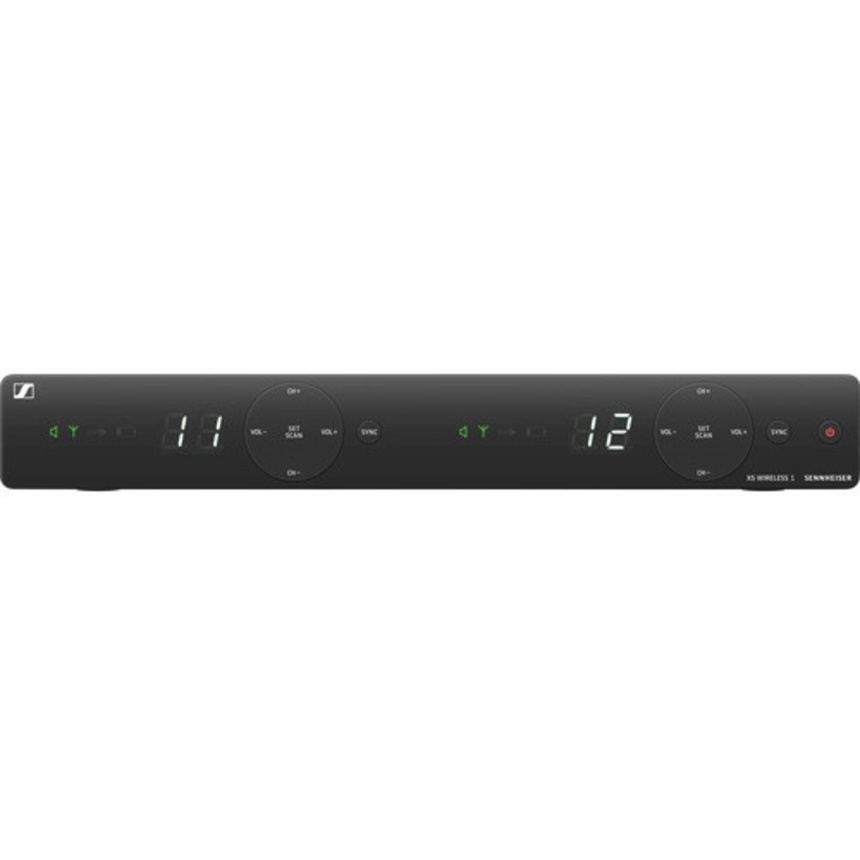

The Sennheiser EM-XSW 1 Dual-Channel Stationary Receiver with Internal Antennas is a 2-channel analog UHF wireless receiver, ideal for singers and presenters. It pairs with an XS wireless 1 series handheld transmitter and microphone capsule (sold separately) and is designed for ease of use in DJ, church, and school applications.
Specifications
| Wireless Technology | Analog UHF |
| Number of RF Channel Frequencies | 80 |
| Diversity | Antenna Diversity |
| RF Frequency Band | A: 548 to 572 MHz |
| RF Bandwidth | Up to 24 MHz |
| RF Channel Scanning | Auto-Scan |
| Max Transmitters per Band | 10 |
| Timecode Support | No |
| Control App Support | No |
| Modulation | Wideband FM |
| Receiver Type | Tabletop |
| Mounting Options | Tabletop |
| Antenna | 2 x Internal |
| Number of Audio Channels | 2 |
| Audio I/O | 2 x XLR 3-Pin Male Balanced Mic/Line Output 2 x 1/4" TS Balanced Mic/Line Output |
| Gain Range | 45 dB (5 dB Steps) |
| Audio Output Level | XLR Outputs: +12 dBu (Max, Balanced) 1/4" Outputs: +6 dBu (Unbalanced) |
| Frequency Response | 50 Hz to 16 kHz -3 dB |
| Network I/O | None |
| Network Protocols | None |
| Word Clock I/O | None |
| USB/Lightning Connectivity | None |
| Standalone Audio Interface Capable | No |
| RF Principle | Double Superheterodyne |
| Approximate RF Sensitivity | 52 dB / 3 µV |
| Squelch | Adjustable, 3 to 28 dBµV |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 12 VDC at 300 mA (Included) |
| Display & Indicators | 2 x LCD |
| Housing | ABS |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 70°C |
| Dimensions | 320 x 126.5 x 42mm |
| Weight | 620g |
What's Included
- Sennheiser EM-XSW 1 Dual-Channel Stationary Receiver with Internal Antennas (A: 548 to 572 MHz)
- NT 12-5 CW Power Supply
- Barcode: 83133
- UPC Barcode: 615104315617
- Supplier Code: 508277
