Overview

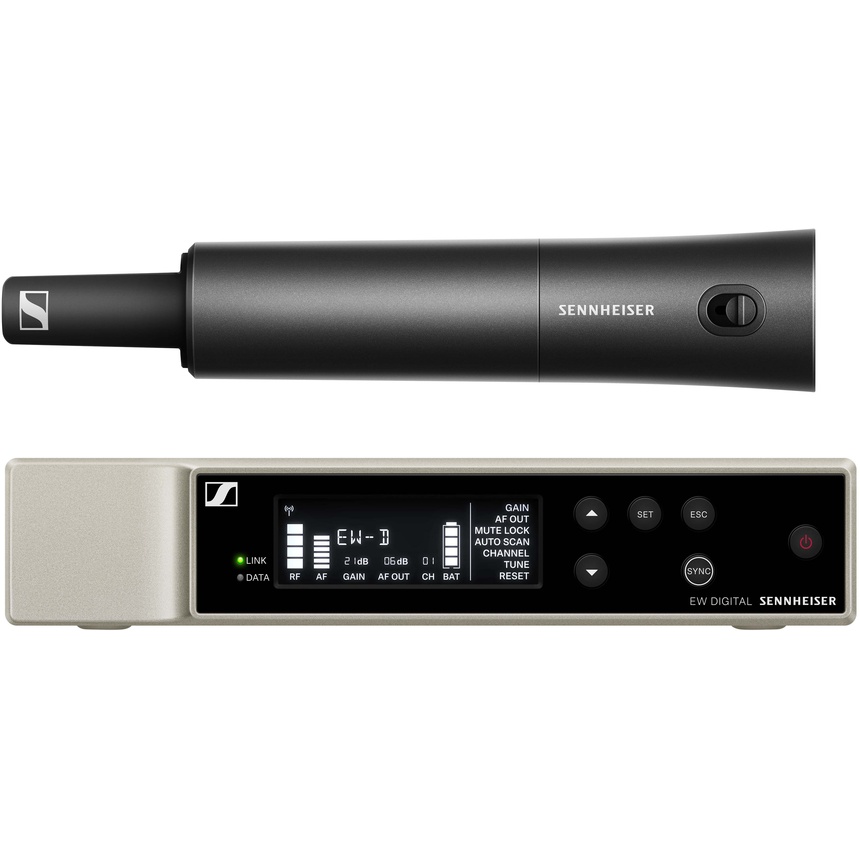

The Sennheiser Evolution Wireless Digital SKM-S Handheld Transmitter Base Set is a versatile and feature-rich digital wireless system for speakers and vocalists. It allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust handheld transmitter is perfect for daily use on stage.
Core Features
Key Features:
- Digital wireless eliminates noise, interference, and static bursts
- UHF transmission greatly enhances range, reliability, and scalability
- Mobile App streamlines setup and operation and eliminates complicated menus
- Automated setup creates reliable connections with minimal time and effort
- Up to 2,240 selectable frequencies support up to 24 wireless systems per frequency range
- Lithium Ion battery pack delivers up to 12 hours of operation (up to 8 hours of operation with AA batteries)
- 56 MHz Bandwidth will allow for up to 90 channels
- Preserves every detail of even the most dynamic performances with 134 dB transmitter dynamic range
Compatibility
The EW-D SKM-S Handheld Transmitter is compatible with the following microphone modules:
- MMD 835-1
- MMD 845-1
- MME 865-1
- MMD 935-1
- MMD 945-1
- MMK 965-1
- MMD 42-1
- Neumann KK 204
- Neumann KK 205
- MM 435
- MM 445
- ME 9002
- ME 9004
Specifications
| System | |
| Audio Link Frequency Ranges | S7-10: 662 - 693.8 MHz |
| Bluetooth Low Energy (BLE) Frequency Range | 2402 - 2480 MHz |
| Audio Frequency Response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
| Audio THD | = -60 dB for 1 kHz @ -3 dBfs input level |
| Operating Temperature | -10°C - +55°C |
| Relative Humidity | 5 - 95 % (non-condensing) |
| EW-D EM (Rack Receiver) | |
| Input Voltage | 11 - 13 V ? |
| Input Current | = 300 mA |
| Transmit Power (Radiated) | BLE: max. 10 mW EIRP |
| Audio Output Power | 18 dBu max. |
| Dimensions | 212 x 44 x 189 mm |
| Weight | Approx. 1000 g |
| EW-D SKM-S (Handheld Transmitter) | |
| Input Voltage | 2.0 - 4.35 V |
| Input Current | < 300 mA |
| Power Supply | 2 AA batteries 1.5 V (alkali manganese) or BA 70 Rechargeable Battery Pack |
| Occupied Bandwidth | 200 kHz |
| Transmit Power (Radiated) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP |
| Dimensions (ø x l) | 50 x 268 mm (incl. MMD 835 microphone module) 40 x 200 mm (without microphone module) |
| Weight (Without Batteries) | Approx. 304 g (incl. MMD 835 microphone module) Approx. 195 g (without microphone module) |
What's Included
- EW-D EM Rack Receiver
- EW-D SKM-S Handheld Transmitter
- 2 x Rod Antennas
- Power Supply with Country Adapters
- Rackmount Set
- 4 x Rubber Feet
- Quick Guide
- Safety Guide
- Manufacturer Declaration Sheet
- Barcode: 83183
- UPC Barcode: 615104336018
- Supplier Code: 508765
