Overview

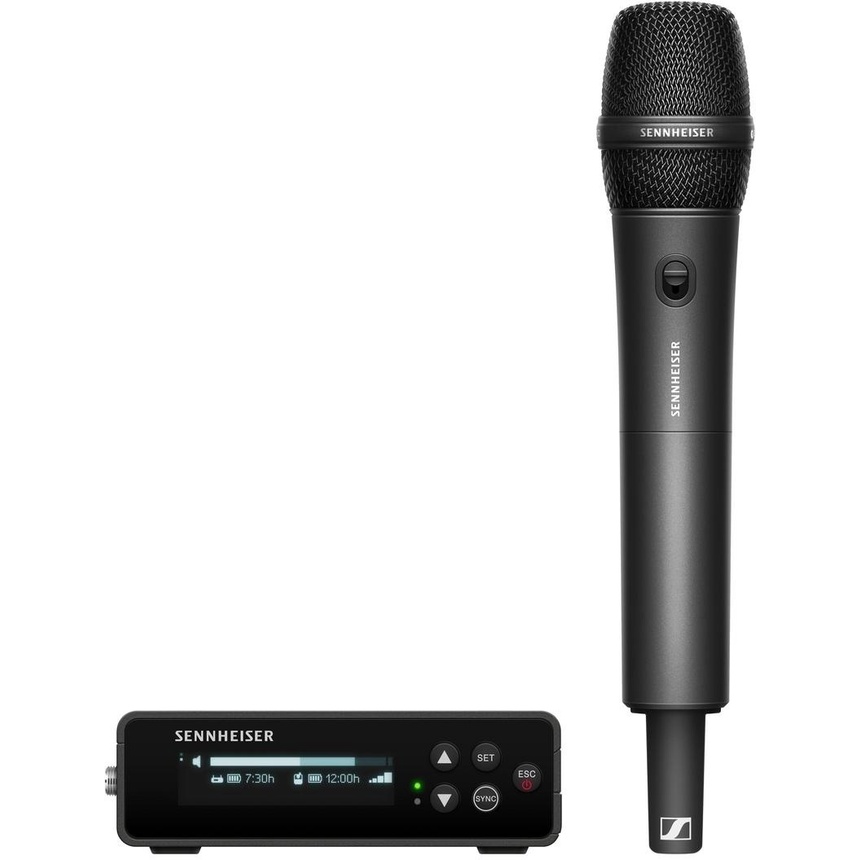

The Sennheiser EW-DP 835 SET Evolution Wireless Digital Handheld Set is a portable digital UHF wireless microphone system with SMK-S handheld transmitter and MMD 835 cardioid dynamic microphone. Designed for filmmakers, content creators, and broadcasters, it is the digital successor of the G4 portable sets. This versatile and feature-rich system is ideal for videography, filmmaking, news-gathering, and other audio for video applications where reliability and simplicity are key.
Core Features

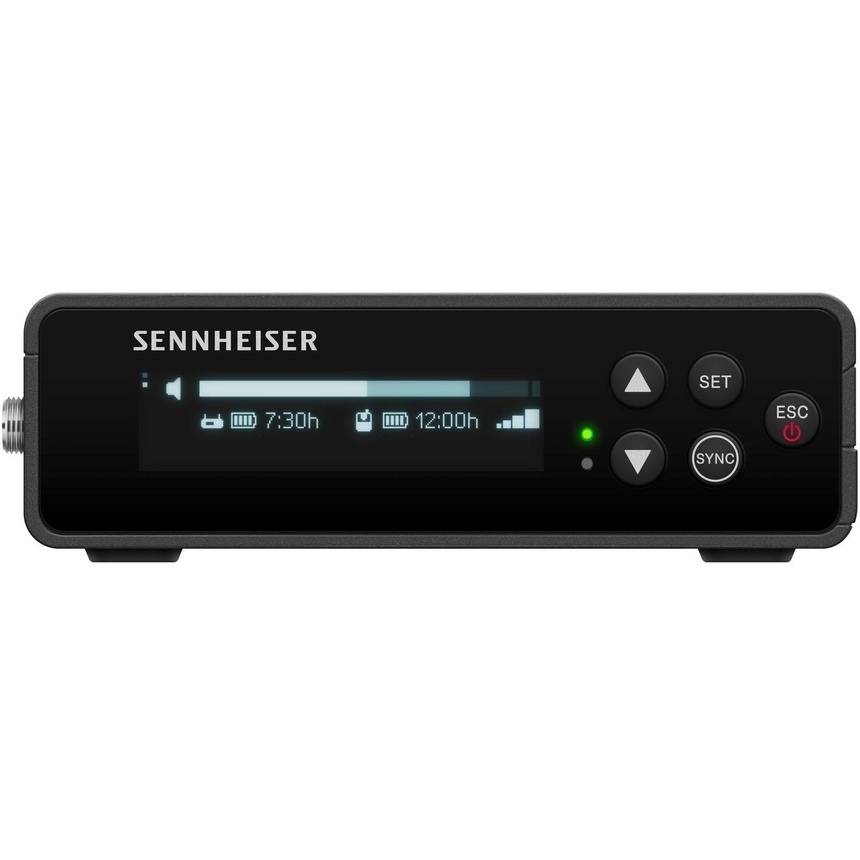

At the heart of EW-DP is a compact digital receiver that provides an intuitive user experience. Bluetooth synchronization and system control via the Smart Assist app save time and energy on set. A front-facing OLED display allows for easy menu navigation, and Smart Notifications help troubleshoot challenges. Magnetic and stackable mounting configurations integrate the receiver into your camera build, while multiple powering options are ready for long days on location.
Key Features
- Fully digital UHF wireless microphone system for video applications
- Integrated Bluetooth for synchronization and control
- Smart Notifications for troubleshooting and system guidance
- Intelligent battery management provides operating time (hours:minutes)
- Extended battery life: up to 12 hours on transmitter, 7 hours on receiver
- Magnetically stackable components for versatile mounting
- Industry leading 134 dB dynamic range for distortion-free transmission
- Up to 56 MHz bandwidth for flexibility in any RF environment
- Exceptionally low latency (1.9 ms)
- External charging and powering via USB-C (receiver only)
- Smart Assist app for monitor & control
- Optional plug-on transmitter features XLR & 3.5 mm inputs, +48V & recording via microSD (ENG Set or component only)
Specifications
| System | |
| Audio link frequency ranges | S7-10: 662 - 693.8 MHz |
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
| Audio THD = -60 dB for 1 kHz | @ -3 dBfs input level |
| Dynamic range | 134 dB |
| System latency | 1.9 ms |
| Operating temperature | -10 °C - +55 °C |
| Relative humidity | 5 - 95 % (non-condensing) |
| EW-DP EK | |
| Input voltage | ~ 1.8 - 4.35 V |
| Input current | Typ. < 250 mA / Max. < 400 mA (BA 70) Typ. < 400 mA / Max. < 750 mA (2x AA batteries) < 300 mA@5 V (USB-C standalone) |
| Power Supply | 2x AA batteries 1.5V or BA70 rechargeable battery pack or USB-C PD power supply (max.): • 5V / 1500mA • 9V / 900mA • 12V / 700mA |
| Transmit power (radiated) | BLE: max. 10 mW EIRP |
| Audio output power | < 2 dBV max. (high level) / < 4dBU max (high level) |
| Headphone Output | < 50 mW into 16 Ohms |
| Dimensions | 86 x 67 x 28 mm |
| Weight (without antennas and power supply) | approx. 140g |

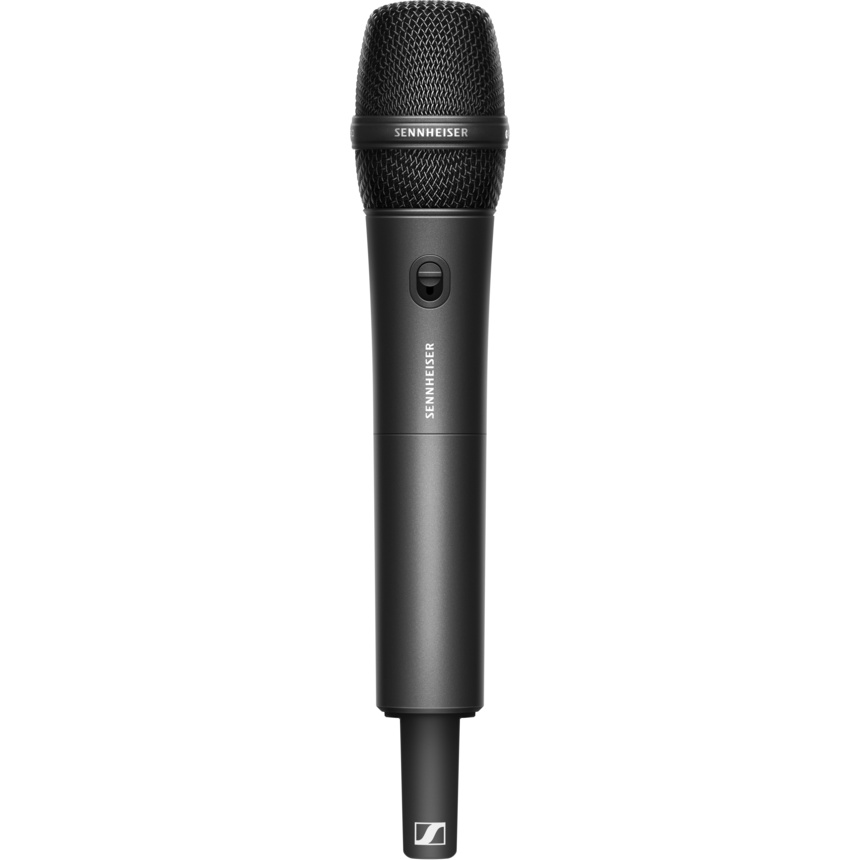

| EW-D SKM-S (Handheld Transmitter) | |
| Input voltage | 2.0 - 4.35 V |
| Input current | < 300 mA |
| Power supply | 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack |
| Occupied bandwidth | 200 kHz |
| Transmit power (radiated) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP |
| Dimensions (ø x l) | (incl. MMD 835 microphone module): 50 x 268 mm (without microphone module): 40 x 200 mm |
| MMD 835 (Microphone Module) | |
| Transducer principle | dynamic |
| Sensitivity | 2.1 mV/Pa |
| Sound pressure level | 154 dB SPL |
| Pick-up pattern | cardioid |
What's Included
- EW-DP EK digital portable single channel receiver
- EW-D SKM-S digital handheld transmitter
- MMD 835 dynamic cardioid microphone module
- Mounting kit (Mounting plate, cold shoe, belt clip & screws)
- BA 70 li-ion battery & (2) AA battery
- Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
- Locking 3.5 mm TRS plug to XLR plug cable
- USB-C charging cable
- Barcode: 83185
- UPC Barcode: 615104376618
- Supplier Code: 700035
