Overview

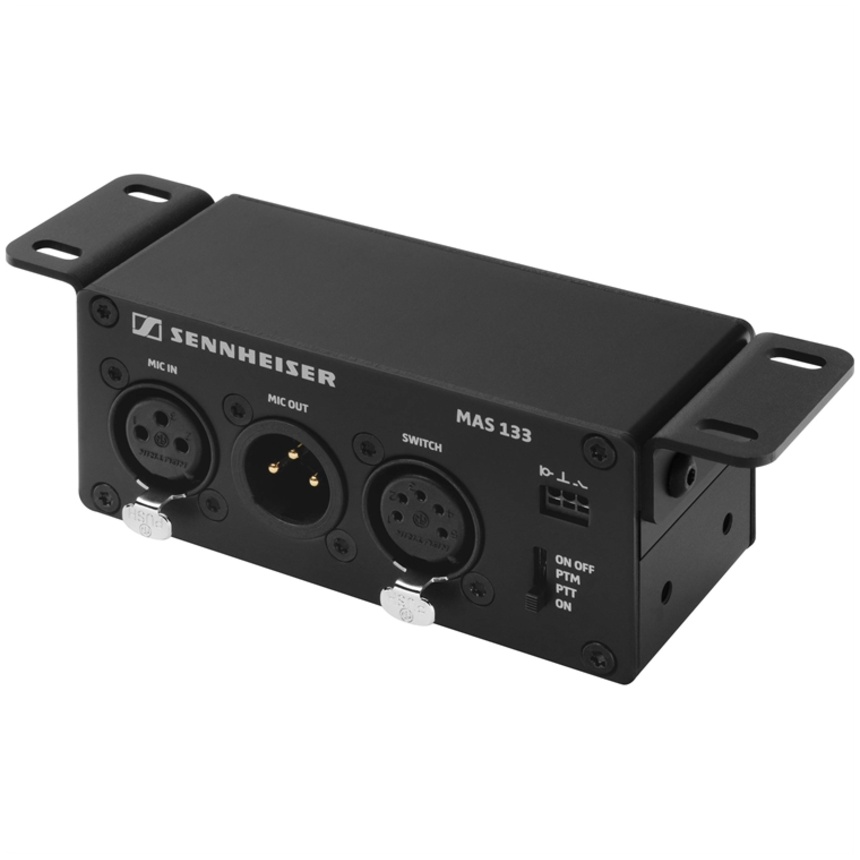

The MAS 133 Inline Logic Box with XLR Mic In and Out with Switch by Sennheiser is designed for integrated microphone solutions, ideal for environments such as recording studios, conference rooms, and boardrooms.
Core Features
It features 2 XLR-3 connectors, one for input and another for output, and one XLR-5 connector for the control switch. The MAS 133 is positioned between the mic and mixing console and powers the MAS 1 microphone button (sold separately).
Programmable Operation Modes
- On
- On/Off
- PTT
- PTM
Control & Connectivity
A TTL logic connection enables the user to trigger integration with media or camera control systems for various purposes.
Included Accessories
Mounting brackets and 4 recessed head screws are included.
Specifications
| Connector | Mic In: XLR-3F Mic Out: XLR-3M pin assignment 1 = ground, 2 = positive (+), 3 = negative (-) Switch In: XLR-5F pin assignment 1 = ground, 2 = switch, 3 = LED red (-), 4 = LED green (-), 5 = LEDs + 12 V out |
| Temperature (Operating) | 10 to 50 °C |
| Phantom Power | P 48 |
| Current Consumption | 4.5 mA |
| Microphone Controls | Toggle on/off, push to mute, push to talk, permanent on |
| Connection | Clip contact Pin Assignment Logic Connector: Trigger Signal at the Logic Connector: Mic, on/off, GND, switch on/off |
| Output Voltage | Logic: High Level: Output voltage > 2.4 V Low Level: Output voltage < 0.4 V |
| Dimensions (W x D x H) | 15.0 x 4.3 x 4.3 cm |
| Weight | 211.8 g |
What's Included
- Sennheiser MAS 133 Inline Logic Box with XLR Mic In and Out with Switch
- 2 x Mounting Brackets
- 4 x Recessed Head Screws
- Barcode: 83301
- UPC Barcode: 615104230484
- Supplier Code: 505621
