Overview

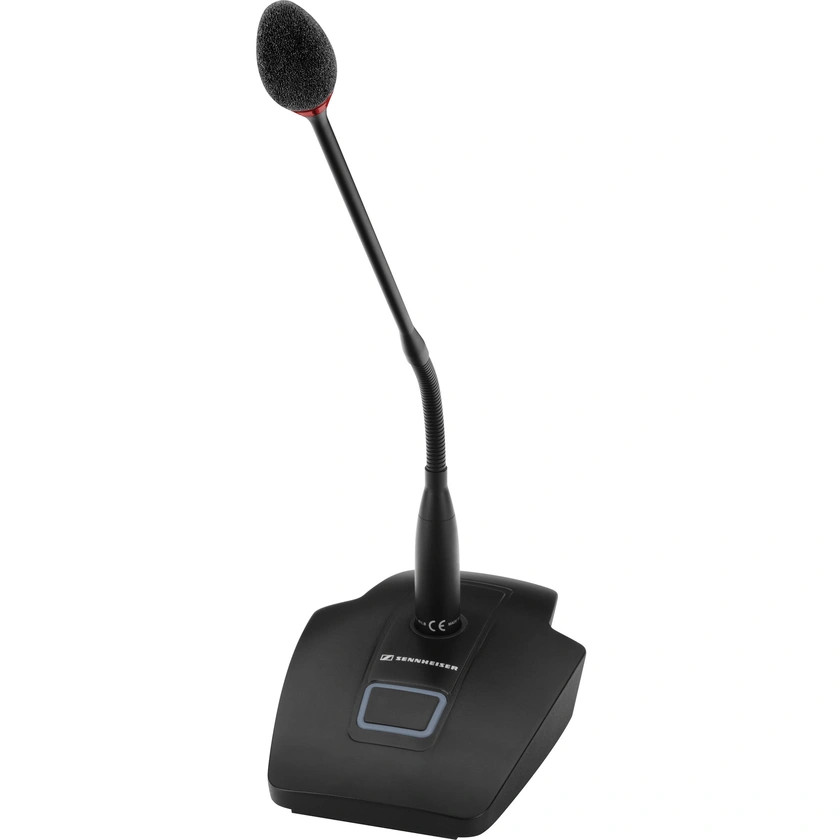

The black MAT 153-S Table Stand from Sennheiser is a sturdy, wired table stand designed for 5-pin XLR gooseneck microphones. It features a user-friendly microphone button with a two-colour status display for quick visual feedback on microphone status.
Core Features
The table stand provides a stable base and includes a TTL logic output for activating a camera or media control system. It is powered via a separately available 3-pin XLR cable.
Specifications
| Connectors | Mic In: 5-Pin XLR Female Mic Out: 3-Pin XLR Male Logic: Clip Contact for Logic In (External LED Control), Ground, and Logic Out (Switch Signal) |
| Current Consumption | 3.7 mA |
| Input/Output Voltage | Logic Out: High-Level Output Voltage >2.4 V, Low-Level Output Voltage Logic In: High-Level Input Voltage >2.0 V, Low-Level Input Voltage |
| LED Status Indicator | Light Ring: Red/Green |
| Dimensions | Not Specified by Manufacturer |
| Weight | 147.0 g |
| Transducer | Pre-Polarised Condenser Microphone |
| Acoustics | Cardioid |
| Frequency Response | 50 Hz to 20 kHz |
| Maximum Sound Pressure Level (SPL) | 130 dB |
| Equivalent Noise Level | 26 dBA Weighted as per CCIR 468-3: 37 dB |
| Phantom Power | 12 to 48 V |
| Current Consumption | Microphone: 3 mA |
| Power | Light Ring: 12 to 30 V |
| Current Consumption | Light Ring: 1 to 18 mA |
| Connectivity | XLR 5-Pin Male |
| Operating Temperature | 0 to 40°C |
| Length | 450.0 mm |
| Diameter | 8.0 mm |
What's Included
- Sennheiser MAT 153-S Table Stand with LED Light Ring Button for 5-Pin XLR Gooseneck Microphone
- Sennheiser MEG 14-40-L-II Gooseneck Microphone (XLR 5-Pin, Green Light Ring)
- Barcode: 83304
- UPC Barcode: 615104282353
- Supplier Code: 507354
