Overview

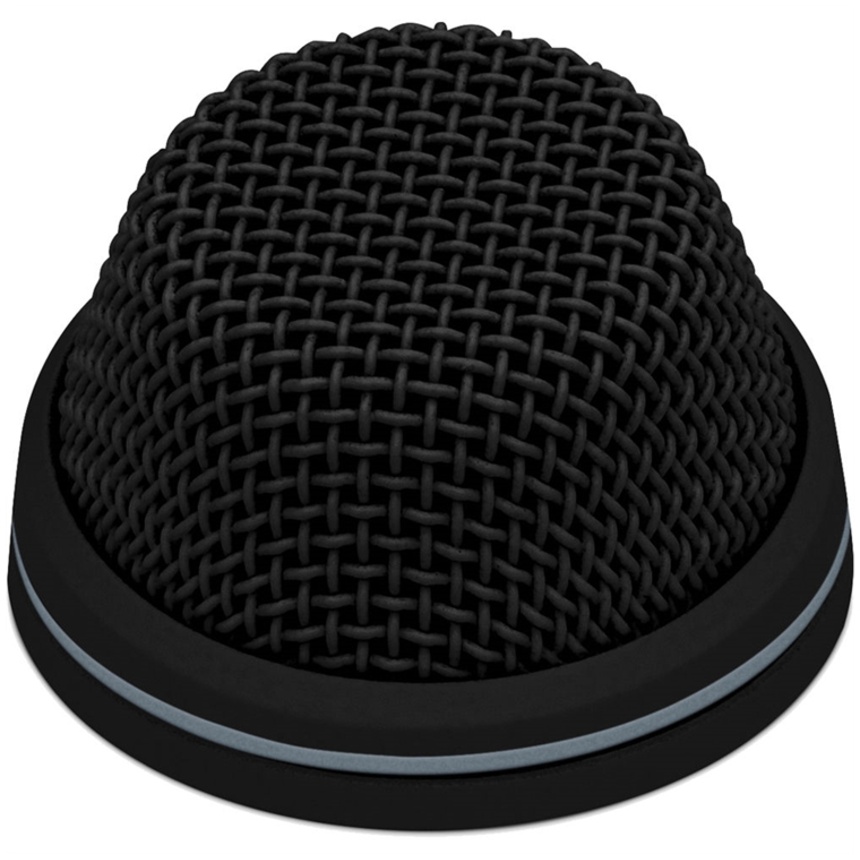

The black MEB 104-L Cardioid Boundary Microphone from Sennheiser is designed for capturing audio in permanent installations such as conference rooms, boardrooms, lecture halls, and school auditoriums. It features a bi-colour LED for status indication and a programmable button for On, On/Off, PTT, and PTM modes. With a cardioid polar pattern and a frequency response of 40 Hz to 20 kHz, it ensures excellent speech intelligibility.
Core Features
- Bi-colour LED for status indication
- Programmable button for On, On/Off, PTT, PTM modes
- Unobtrusive boundary microphone allows for surface installation in tables or ceiling tiles
- Exceptional immunity from RF interference
Installation & Power
The MEB 104-L boundary microphone allows easy surface installation in tables or ceiling tiles. It is powered by 24 to 48V phantom power and terminates in an XLR-5 pin connector. Also included are a hex-nut and two rubber rings for mounting.
Specifications
| Analogue Performance | |
| Transducer | Condenser |
| Polar Pattern | Cardioid |
| Frequency Range | 40 Hz to 20 kHz |
| Equivalent Noise Level | 28 dB A-Weighted 38 dB CCIR |
| Maximum SPL | 125 dB SPL |
| Impedance | 200 Ohms |
| Sensitivity | 14 mV/Pa |
| Dynamic Range | 97 dB A-Weighted |
| General | |
| Output Connectors | 1 x 5-Pin XLR |
| Operating Current Consumption | 6 mA |
| Operating Voltage | 24 V 48 V |
| Operating Temperature | 0 to 40°C |
| Diameter | 28.5 mm |
| Weight | 60 g |
What's Included
- Sennheiser MEB 104-L Cardioid Boundary Microphone (Black)
- 2 x Rubber Rings for Mounting
- Hex Nut for Mounting
