Overview

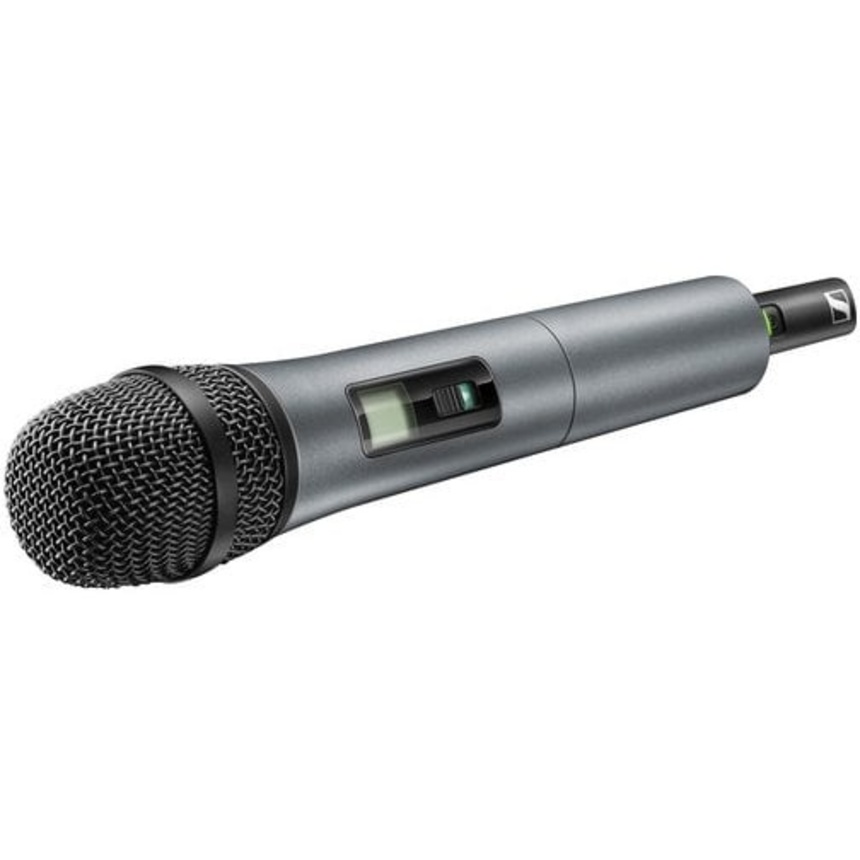

The Sennheiser SKM 825-XSW-A Wireless Handheld Microphone Transmitter is equipped with an e825 Dynamic Cardioid Capsule. Designed for singers, presenters, and live sound applications, it pairs with EM-XSW 1 or EM-XSW 2 wireless receivers (sold separately) and offers up to 10 compatible channels in a stable UHF band.
Core Features
This transmitter is built to withstand tough on-stage use, providing reliable transmission with an easy-to-use setup. Ideal for bands, theaters, or seminars, it allows users to focus on their performance without worrying about channel selection.
Specifications
| System | |
| Modulation | Wideband FM |
| Frequency Range | A: 548 to 572 MHz |
| Switching Bandwidth | Up to 24 MHz |
| Signal to Noise Ratio | = 103 dBA |
| Total Harmonic Distortion | = 0.9% |
| Temperature Range | Operation: 0 to +40°C |
| Storage | -20 to 70°C |
| Transmitter Synchronisation | 2.4 GHz, Low Power OQPSK (only active during synchronisation) |
| Microphone | |
| Output Power | 10 mW |
| Frequency Response | 80 Hz to 14 kHz |
| Power Supply | 2 x AA batteries, 1.5 V |
| Operating Time | Approximately 10 hrs. |
| Microphone Type | Dynamic |
| Polar Pattern | Dynamic cardioid |
| Input Sensitivity: Capsule | 1.5 mV/Pa |
| Adjustment Range | Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps |
| Material of Construction | Rugged ABS housing |
| Dimensions (L x Diam) | 260 x 50 mm |
| Weight | 245 g |
What's Included
- Sennheiser SKM 825-XSW-A Wireless Handheld Microphone Transmitter
- Barcode: 83451
- UPC Barcode: 615104282063
- Supplier Code: 507329
