Overview

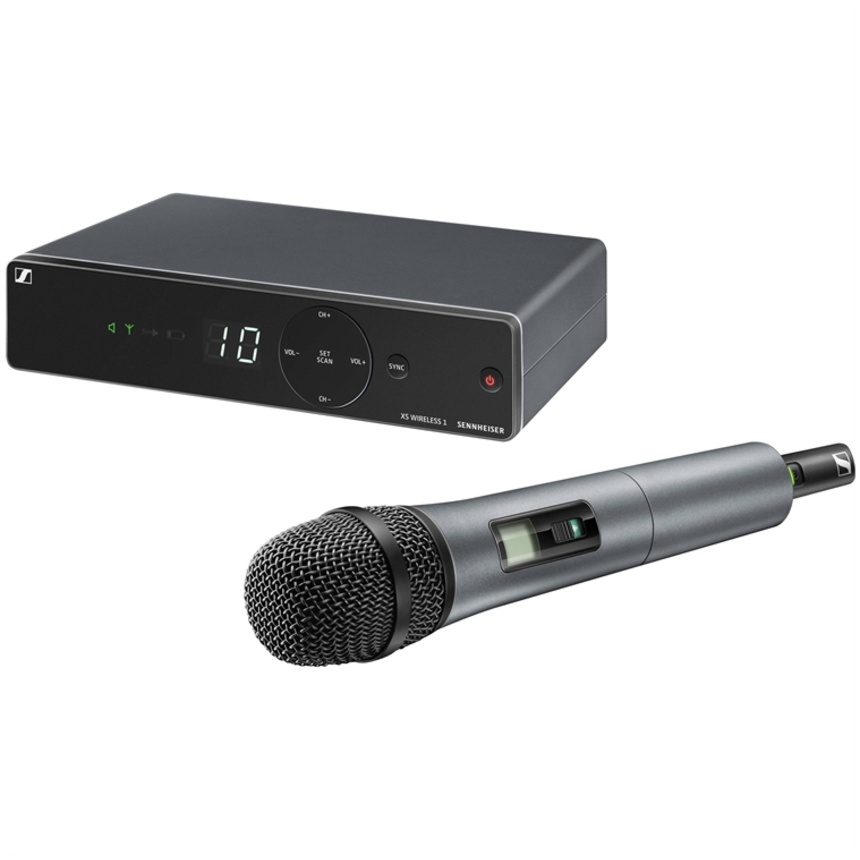

The XSW 1-825-A UHF Vocal Set with e825 Dynamic Microphone from Sennheiser is an easy-to-use all-in-one wireless system for singers and presenters. It is ideal for capturing audio for live sound, stage, and theatre applications.
Core Features
The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a vocal microphone and microphone clamp. It is built with antenna-switching diversity reception and features automatic frequency management and synchronisation via remote channel. Up to 10 compatible channels are available. Additionally, an AC power adapter and two AA batteries are also included.
Features
- Featuring Sennheiser's renowned evolution microphone capsule e825
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
- Diversity reception
Specifications
| System | |
| Modulation | Wideband FM |
| Frequency Range | A: 548 - 572 MHz |
| Switching Bandwidth | Up to 24 MHz |
| Signal to Noise Ratio | = 103 dBA |
| Total Harmonic Distortion | = 0.9% |
| Temperature Range | Operation: 0 to +40°C |
| Storage | -20 to 70°C |
| Transmitter Synchronisation | 2.4 GHz, Low Power OQPSK (only active during synchronisation) |

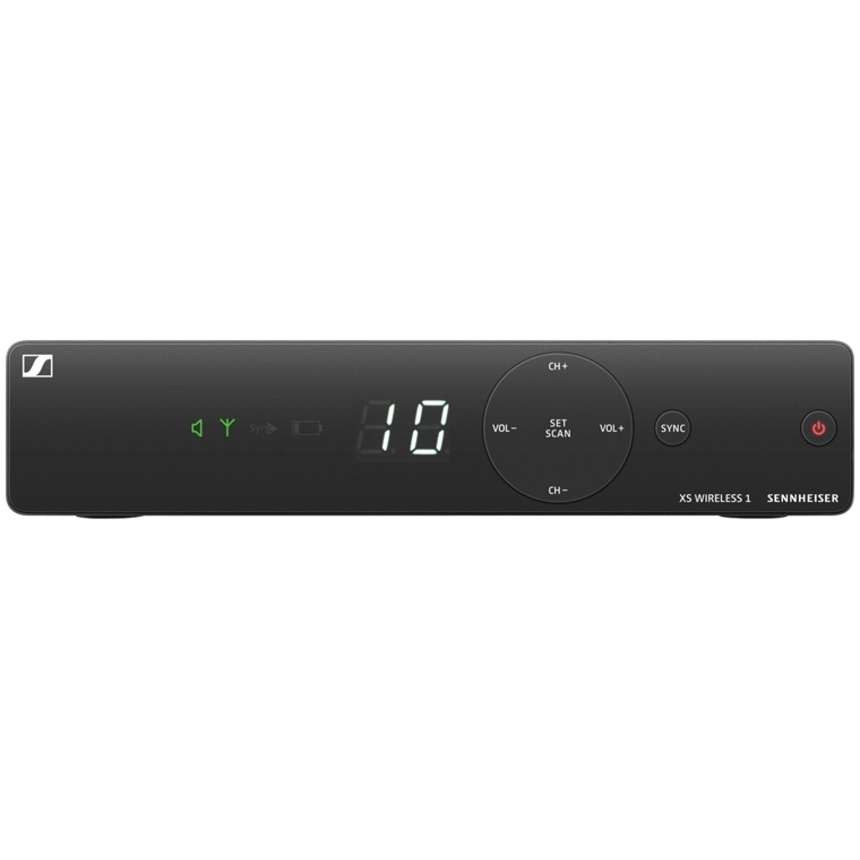

| Receiver | |
| Principle | Double superheterodyne |
| Diversity | Antenna switching diversity via internal antennas |
| Sensitivity | < 3 µV at 52 dBA RMS S/N (at peak deviation) |
| Frequency Response | 50 Hz to 16 kHz (-3 dB) |

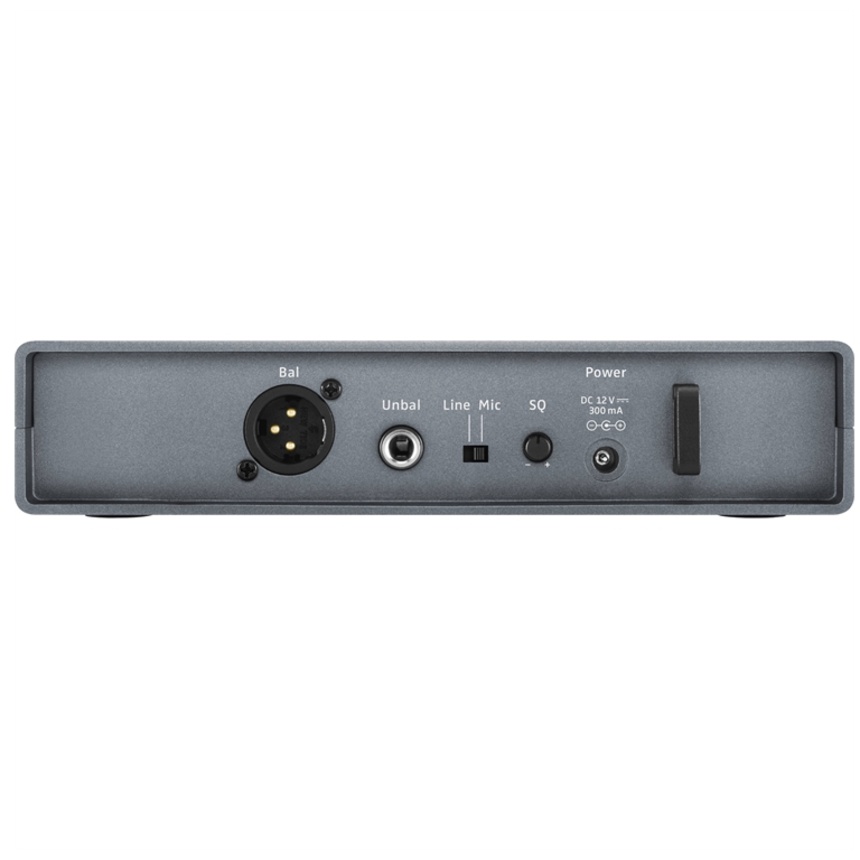

| Max Output Voltage | At Peak Deviation, 1 kHz AF 1/4" (6.3 mm) Jack Socket (unbalanced): +6 dBu XLR Socket (balanced): +12 dBu |
| Adjustment Range | Audio: 45 dB, adjustable in 5-dB steps |
| Power Supply | 12 VDC nominal/300 mA |
| Squelch | Adjustable from 3 dB µV to 28 dB µV (combined with pilot tone) |
| Line/Mic Level | 20 dB, switchable |
| Material of Construction | ABS housing |
| Dimensions (W x H x D) | 200 x 42 x 127 mm |
| Weight | 340 g |

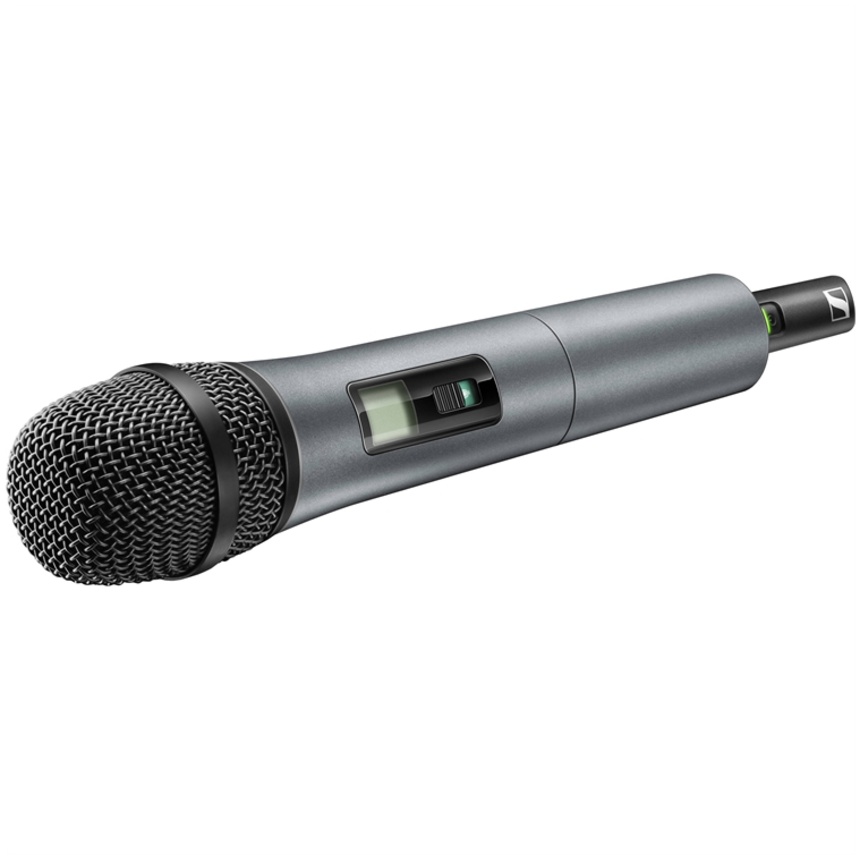

| Microphone | |
| Output Power | 10 mW |
| Frequency Response | 80 Hz to 14 kHz |
| Power Supply | 2 x AA batteries, 1.5 V |
| Operating Time | Approximately 10 hrs. |
| Microphone Type | Dynamic |
| Polar Pattern | Cardioid |
| Input Sensitivity | Capsule: 1.5 mV/Pa |
| Adjustment Range | Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps |
| Material of Construction | Rugged ABS housing |
| Dimensions (L x Diam) | 260 x 50 mm |
| Weight | 245 g |
What's Included
- Sennheiser XSW 1-825-A UHF Vocal Set with e825 Dynamic Microphone (A: 548 - 572 MHz)
- MZQ1 Microphone Clamp
- NT12-5 CW Power Supply
- 2 x AA Batteries
- Barcode: 83493
- UPC Barcode: 615104278615
- Supplier Code: 507108
