Overview
The XSW 2-CL1-A Wireless 2 Instrument System features a true diversity receiver, a compact bodypack transmitter, and a robust instrument cable with a 6.35 mm jack. It is an easy-to-use, all-in-one wireless system for electric bass, guitar, and keyboard instruments, ideal for live-sound applications.
Core Features
The unit is built with automatic frequency management and synchronization, eliminating the need to scramble for an available channel. The system offers an intuitive LCD display, two external antennas, a compact bodypack transmitter, and an instrument cable. Additionally, it includes a metal receiver housing, a rackmount kit, power supply, carry pouch, and two AA batteries.
Features
- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronization
- Remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
Specifications
| System | |
| Modulation | Wideband FM |
| Frequency Range | A: 548 - 572 MHz |
| Switching Bandwidth | Up to 24 MHz |
| Frequencies | Adjustable in 25-kHz steps, 8 frequency banks, each with up to 12 factory-preset channels |
| Signal to Noise Ratio | = 103 dBA |
| Total Harmonic Distortion (THD) | = 0.9% |
| Temperature Range | Operation: 0 to +40°C, Storage: -20 to +70°C |
| Transmitter Synchronisation | 2.4 GHz, low power OQPSK (only active during synchronisation) |
| Receiver | |
| Principle of Operation | Double superheterodyne |
| Diversity Method | True diversity |
| Sensitivity | < 3 µV at 52 dBA rms S/N at (peak deviation) |
| Frequency Response | 50 Hz to 16 kHz (-3 dB) |
| Maximum AF Output Voltage | At peak deviation, 1 kHz AF, 1/4" (6.3 mm) Jack Socket (Unbalanced): +6 dBu, XLR Socket (Balanced): +12 dBu |
| Adjustment Range | Audio: 40 dB, adjustable in 5-dB steps |
| Power Supply | 12 VDC nominal/300 mA |
| Squelch | Adjustable from 3 dBµ V to 28 dBµ V (combined with pilot tone) |
| Line/Mic Level | 20 dB, switchable |
| Housing Material | Rugged metal housing |
| Dimensions (W x H x D) | 200 x 42 x 127 mm |
| Weight | 680 g |
| Transmitter | |
| RF Output Power | 10 mW |
| AF Frequency Response | 50 Hz to 16 kHz (Line), 80 Hz to 16 kHz (Mic) |
| Audio Input | 1/8" (3.5 mm) jack socket |
| Input Voltage | Maximum at 3% THD: Mic: Typ. 1.5 V rms, Line: Typ. 2.6 V rms @ -30 dB gain |
| Power Supply | 2 x AA size batteries, 1.5 V |
| Operating Time | Approximately 10 hours |
| Sensitivity Adjustment | Range: 0 to -30 dB, adjustable in 10-dB steps |
| Housing Material | Rugged ABS housing |
| Dimensions (W x H x D) | 71 x 96 x 28 mm approximate |
| Weight | 95 g approximate |

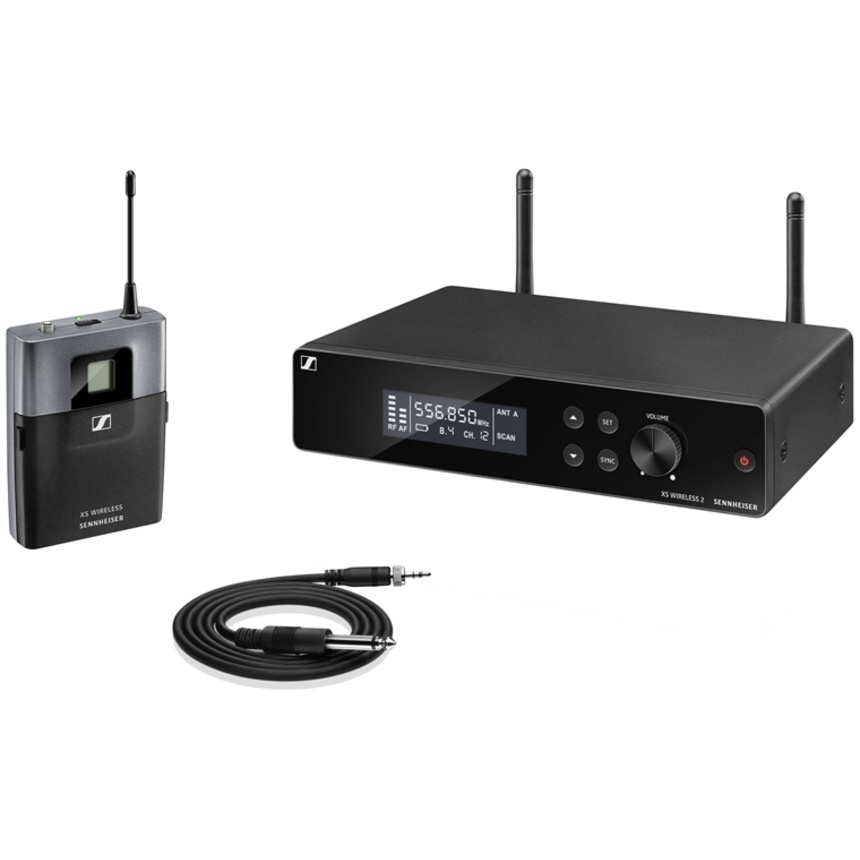

What's Included
- EM-XSW 2 Receiver
- SK-XSW Bodypack Transmitter
- 6.35 mm to 3.5 mm Instrument Cable
- 2 x AA Batteries
- NT 12-5 CW Power Supply
- Rackmount Kit
- Protective Pouch
- Barcode: 83509
- UPC Barcode: 615104279759
- Supplier Code: 507136
