Overview
The Sennheiser XSW-D PRESENTATION BASE SET is an easy entry point into the world of wireless microphone audio for speakers, educators, panellists, and moderators. It offers a stage-ready system that's both cost-effective and simple to use, featuring world-renowned Sennheiser wireless sound quality in a miniaturised, plug-and-go, 1-button digital system. Plug it in, power it up, and you're immediately up and running, allowing you to focus on delivering your message with confidence.
The set includes a bodypack transmitter for use with a lavalier or headset mic, providing hands-free convenience. The XLR-equipped, plug-in receiver connects to a wide range of professional audio gear, capturing crisp-sounding speech in various venues.
Core Features
Unboxing the System
- Lightweight and compact bodypack transmitter compatible with Sennheiser or Sennheiser-compatible mics with a locking 3.5mm connector.
- Transmitter can be concealed in a pocket or attached to the waist with the included belt clip.

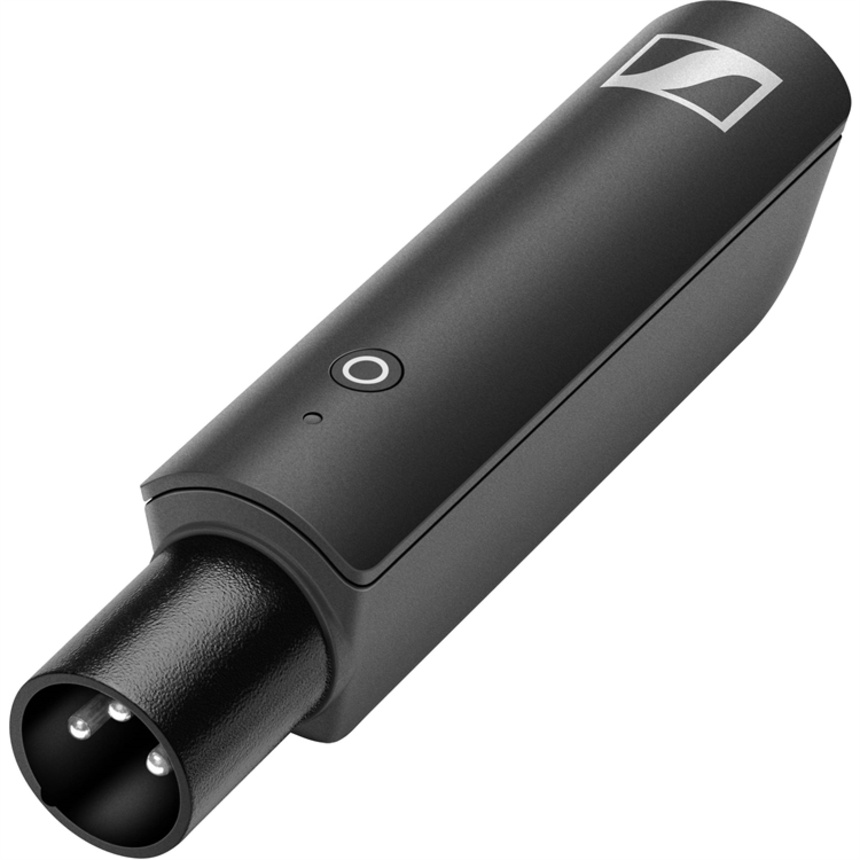

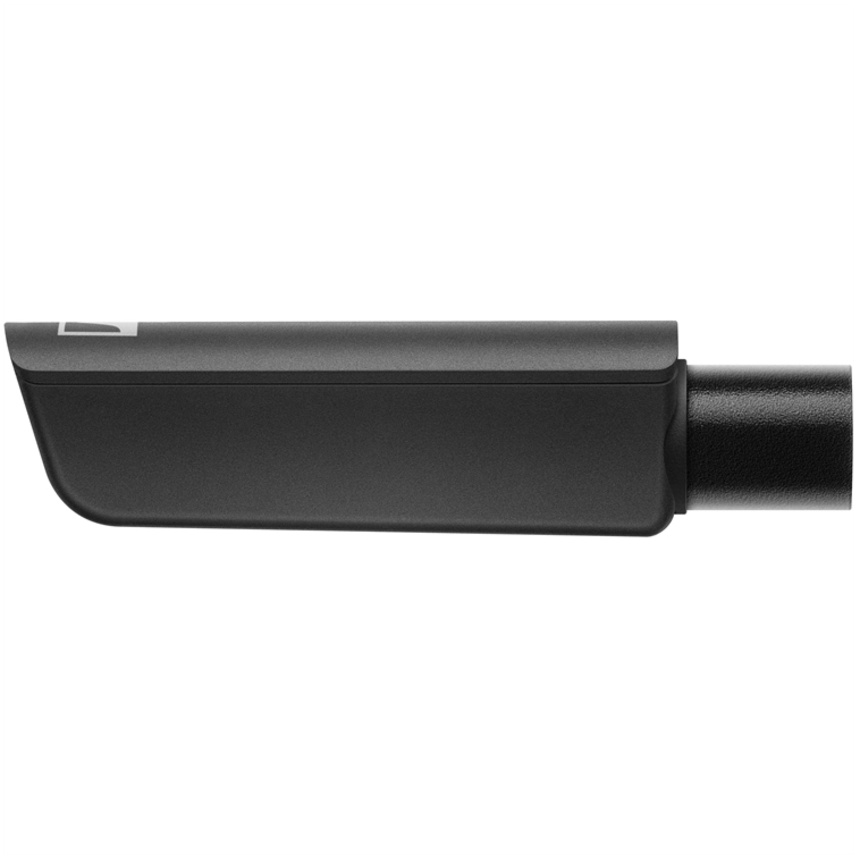

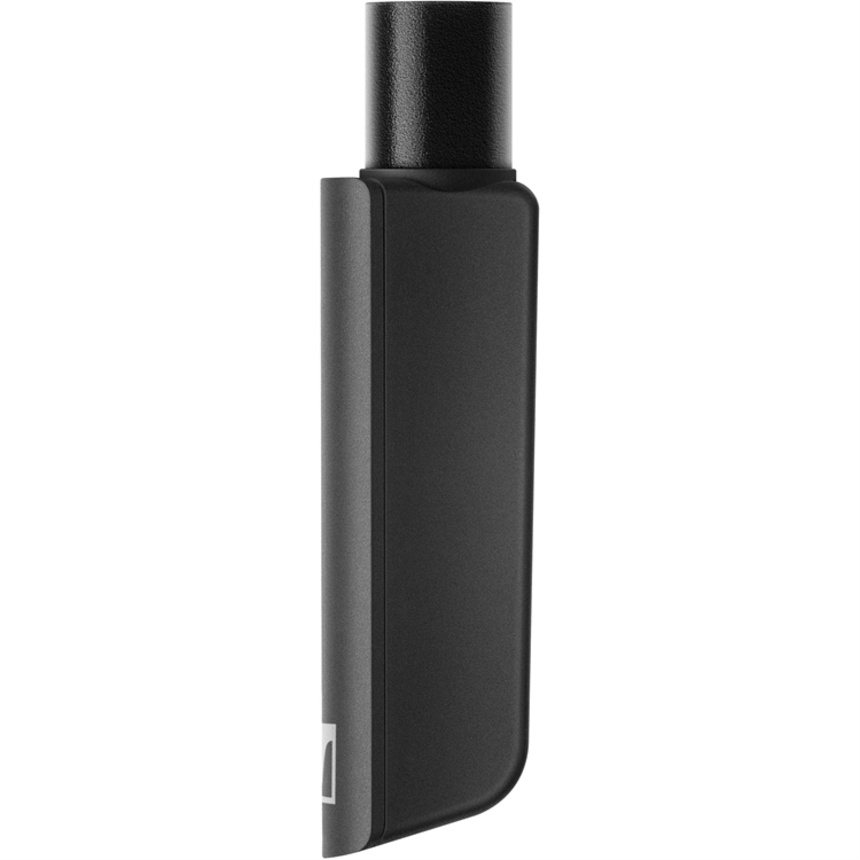

- Compact receiver plugs directly into the XLR input of audio mixers or PA systems. Requires charging via USB as it cannot be phantom powered.
Plug In, Turn On: It Works
- 1-button, 1-LED concept with single-button interface and status indicator for power and linking tasks.
- Pre-paired receiver and transmitter for immediate operation. Recommended for environments with limited Wi-Fi / 2.4 GHz traffic.
Control & Connectivity
Easy 2.4 GHz Digital Wireless
- Operates in the 2.4 GHz ISM band to avoid TV and radio interference.
- Automatic channel selection and interference management for reliable transmission up to 76 meters line of sight.
Expand Your System as Your Needs Grow
- Expandable with additional XSW-D Series transmitters and receivers.
- Add XSW-D XLR female plug-on transmitter for dynamic handheld microphones.
Licence-Free Operation Worldwide
- Operates in the licence-free 2.4 GHz band, eliminating local licencing concerns.
- Automatic channel selection for global use.
Additional Features
- Eco-friendly USB-rechargeable lithium-ion batteries with 1-hour charging for 50% battery time.
- 5-hour total battery life.
- Rechargeable via USB during operation or breaks.
- Up to five systems can operate simultaneously.
- Low 3.9 ms latency with aptX Live codec.
- Mute function available on both transmitter and receiver.
- Multi-pairing for quick switching between transmitters (one transmitter per receiver at a time).
Specifications
| System | |
| Frequency Range | 2.400 to 2.483 GHz |
| Latency | <4 ms with aptX Live Codec |
| Transmission Range | 76.2 m (Line of Sight) |
| Simultaneous Operation of Units | Up to 5 Systems Simultaneously |
| Frequency Response | 80 Hz to 18 kHz |
| Signal-to-Noise Ratio | =106 dB |
| THD | <0.1 % |
| Modulation | GFSK with TDMA |
| Operating Temperature | -10 to 55° C |
| Relative Humidity | 95% (Non-Condensing) |
| Transmitter | |
| Type | Bodypack Transmitter |
| Input Connector | 3.5 mm TRS, Locking |
| RF Output Power | 10 mW, Maximum (EIRP) |
| Input Sensitivity | Mic-Level Input Only |
| Battery | Type: Built-In, USB-Rechargeable, Lithium-Ion Battery Life: 5 Hours Charging Time: 3 Hours (Typical) Charging Cycles: Up to 1000 Cycles Nominal Voltage: 3.7 V Cell Capacity: 850 mAh Input Voltage: 5.0 V (Typical) Charging Temperature: 0 to 60° C |
| Dimensions | 86 x 24 x 28 mm |
| Weight | Not Specified by Manufacturer |
| Receiver | |
| Type | Plug-In |
| Output Connector | XLR-Male |
| Audio Output Level | Consumer Line-Level Output Only: -12 dBu (Maximum) |
| Battery | Type: Built-In, USB-Rechargeable, Lithium-Ion Battery Life: 5 Hours Charging Time: 3 Hours (Typical) Charging Cycles: Up to 1000 Cycles Nominal Voltage: 3.7 V Cell Capacity: 850 mAh Input Voltage: 5.0 V (Typical) Charging Temperature: 0 to 60° C |
| Dimensions | 109 x 24 x 28 mm |

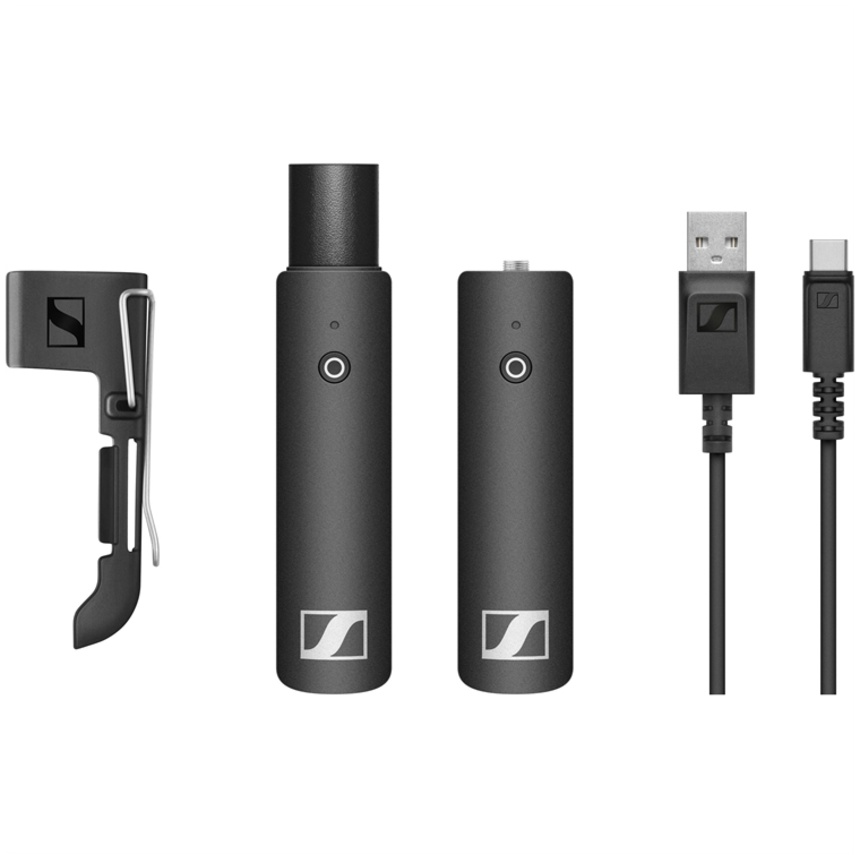

What's Included
- XSW-D 3.5mm (3.5 mm) Transmitter
- XSW-D XLR Male Receiver

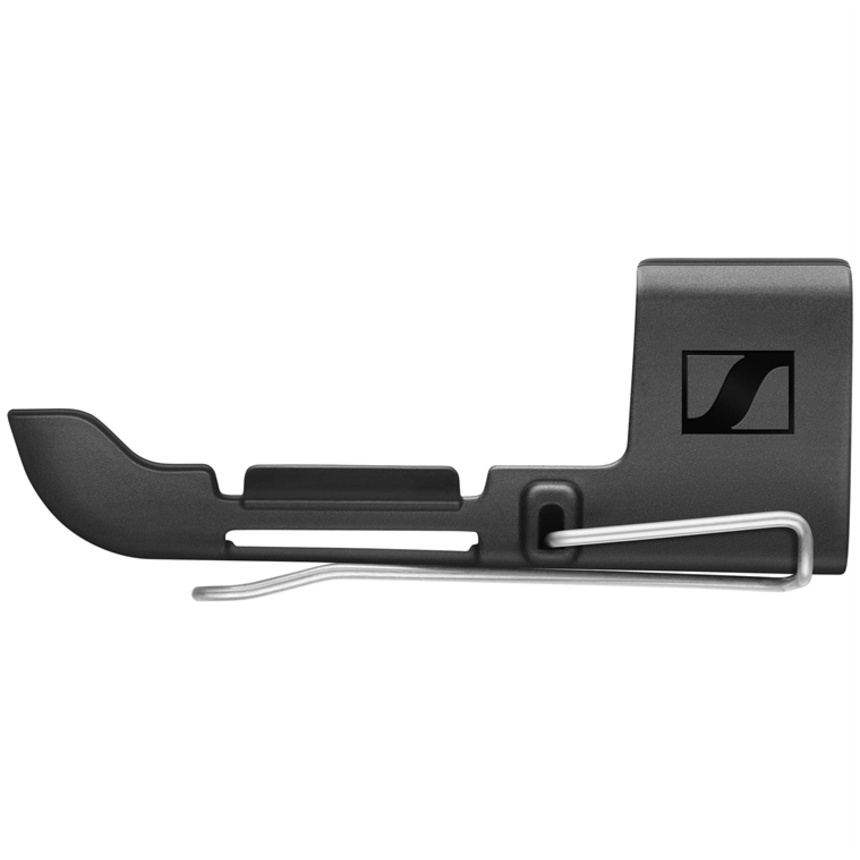

- Belt clip
- USB-A to USB-C charging cable
