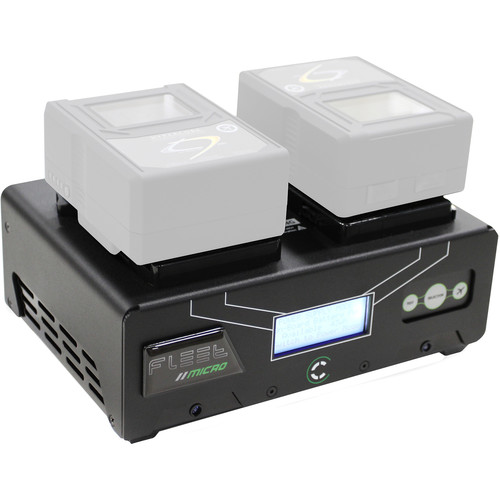

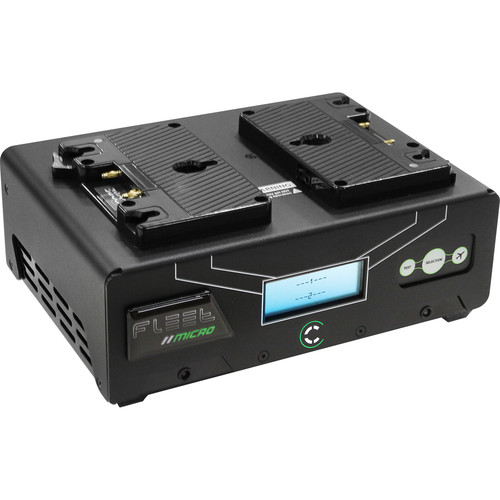

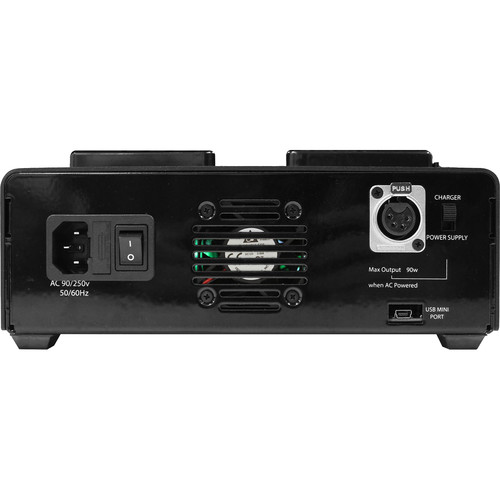

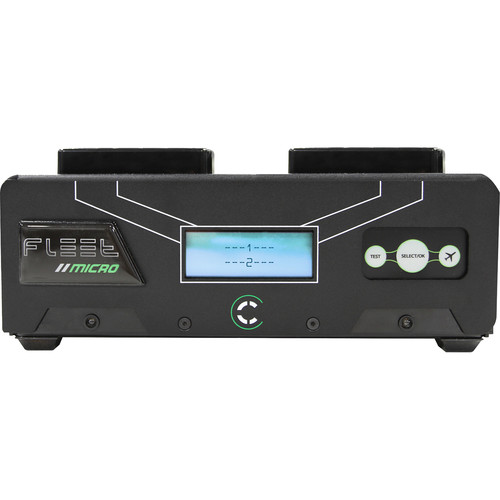

Core SWX 2-Position Fleet Micro AB-Mount Fast Charger

Core SWX 2-Position Fleet Micro AB-Mount Fast Charger

SKU:
52.FLEET-DM2A
(No reviews yet) Write a Review
Key Features
  • Two Position Gold Mount Charger
  • Charge Current: 3A
  • Simultaneously Charge Two Batteries
  • 2 x 98Wh Packs Charge in 2 Hours

Core

$1,956.00

Or buy now, pay later with:

zip after qcard-payment credit-capable-payment

If the product is showing in stock, we'll ship it out the same day if the order is placed before 2pm.

The estimated shipping timeframe is based on the assumption that the supplier has this item in stock. We'll contact you to communicate the actual shipping timeframe after the order is placed.

If you need the item before a certain date, please contact us to confirm before ordering.

Adding to cart… The item has been added

Featuring two independent charge bays, the Core SWX Fleet Micro 3A Digital Quad Charger for Gold Mount Batteries is capable of simultaneously charging two batteries at 3A each. This means that two 98Wh batteries can be charged in approximately 2 hours. The on-board LCD display screen allows you to easily monitor your battery's smart battery data without needing to connect to a computer. The micro-USB connector allows for firmware updates and for connection to a PC.

The built-in Battery Management Test mode allows the charger to determine battery health and recharge performance. Activating the SafeFly mode forces the charger to discharge or charge connected batteries to a 30% charge level to meet air travel and shipping requirements. While plugged into an AC power source the Fleet Micro 3A Dual Charger can either charge batteries or be used as a camera power supply via the built-in 4-pin XLR. In the absence of AC power, you can use the charger to feed the 4-pin XLR from connected batteries providing unregulated power. The housing is made of aluminum, providing for a robust build.

Key Features

  • Two independent Gold mount charge bays
  • Simultaneous charging
  • Approximately 2-hour charge time for two 98Wh batteries
  • 90-240 VAC worldwide compatible input voltage
  • Compatible with batteries from Anton Bauer, and others in addition to CoreSWX
  • The four-line LCD display screen enables monitoring battery information from the charger
  • Hypercine mode allows you to mount up to two batteries to provide unregulated 12 to 16.8 VDC from the charger's 4-pin XLR, without connecting to an AC power supply
  • In Hypercine mode the charger's LCD reports back available capacity as well as remaining runtime
  • Aluminum build
  • Weighs less than two pounds

Core SWX Fleet Micro Specs

Mount / Series Type Gold Mount
Number of Battery Bays 2
Electrical
AC Input Power 90 to 240 VAC, 50 / 60 Hz
Output Voltage 12 VDC
Multi-Bay Charging Modes Simultaneous
Chemistry Lithium-Ion
Maximum Wattage 90 W
General
Dimensions 9.1 x 3.35 x 6.57" / 23.11 x 8.51 x 16.69 cm
Weight 1.8 lb / 0.8 kg
  • Core SWX Fleet Micro 3A Digital Dual Charger for Gold Mount Batteries
  • 4' AC Power Cable
  • Barcode: 42519
  • UPC Barcode: 184323003610
  • Supplier Code: 52.FLEET-DM2A
