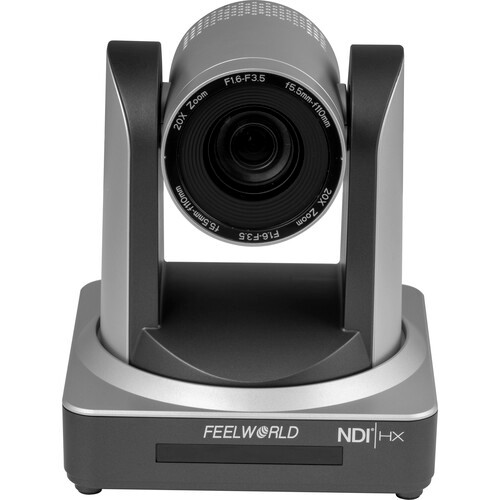

FEELWORLD NDI20X Simultaneous USB/3G-SDI/HDMI/NDI/IP Live Streaming PTZ Camera

FEELWORLD NDI20X Simultaneous USB/3G-SDI/HDMI/NDI/IP Live Streaming PTZ Camera

SKU:
NDI20X
(No reviews yet) Write a Review

Key Features:

  • 1/2.9" 2.07MP CMOS Sensor
  • Simultaneous 3G-SDI, HDMI & NDI|HX Out
  • Supports up to 1080p60 Video
  • 20x Optical Zoom, 3.3 to 54.7° FOV
  • ±170° Pan, -30 to 90° Tilt Range
  • PoE Support
  • Embedded Audio & 3.5mm Stereo Analog In
  • MJPEG/H.264/H.265/NDI/NDI|HX Streaming

Feelworld

$1,718.00

Or buy now, pay later with:

zip after qcard-payment credit-capable-payment

If the product is showing in stock, we'll ship it out the same day if the order is placed before 2pm.

The estimated shipping timeframe is based on the assumption that the supplier has this item in stock. We'll contact you to communicate the actual shipping timeframe after the order is placed.

If you need the item before a certain date, please contact us to confirm before ordering.

Adding to cart… The item has been added

FeelWorld NDI20X Overview

Simultaneously stream your content to several platforms using the NDI20X NDI PoE PTZ Camera with 20x Zoom from FeelWorld. Ideal for video conferencing, live events, and houses of worship, this camera features a 1/2.9" CMOS sensor, both HDMI and 3G-SDI outputs, and audio input. NDI|HX streaming protocols and PoE (Power-over-Ethernet) are supported over a single cable, saving both cost and time.

The camera uses H.264 and H.265 compression formats and offers low-light correction and autofocus functions. You can save 10 presets using the included remote control or up to 255 presets via the WEBSERVER software.


1080p60 Video

PTZ camera with up to 1080p60 output and 20x optical zoom



Simultaneous Streaming

Simultaneous NDI/IP, 3G-SDI, and HDMI video streaming via LAN



Wide FOV

Wide 3.3 to 54.7° field of view



Smooth Pan & Tilt

Accurate, smooth, and silent pan and tilt moves. ±170° panning, -30/+90° tilting



PoE Support

Supports PoE (Power-over-Ethernet)



Noise Reduction

Advanced 2D/3D noise reduction. High signal-to-noise ratio



Presets

Up to 255 position presets using WEBSERVER software. Up to 10 presets using the remote control

Specs

Image Sensor 1/2.8"-Type CMOS
Sensor Resolution Effective: 2.07 Megapixel
Built-In ND Filter None
Focus Control Autofocus
Manual Focus
Exposure Control
Shutter Type Electronic Rolling Shutter
Signal-to-Noise Ratio 55 dB
Minimum Illumination 0.5 Lux
White Balance 3000 to 7000K
Presets: Auto, Manual, One Push
Lens
Focal Length 5.5 to 110mm
Optical Zoom Ratio 20x
Field of View 54.7 to 3.3°
Maximum Aperture f/1.6 to 3.5
Video Capture
External Recording Modes SDI/BNC / HDMI / RJ45
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
1280 x 720 at 25/29.97/30.00/50/59.94/60.00 fps
Broadcast Output NTSC
IP Streaming H.264, H.265, NDI|HX, ONVIF, RTMP, RTSP
1920 x 1080
1280 x 720
Control
Presets 255 via IP, RS-232, VISCA
10 via IR
Move Speed Pan: 0.1 to 60°/sec
Tilt: 0.1 to 30°/sec
Movement Range Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°)
Supported Control Protocols IP
Pelco-D
Pelco-P
RS-232
RS-485
VISCA
Interface
Video I/O 1 x HDMI Output
1 x BNC (3G-SDI) Output
1 x RJ45 (NDI) Output
Audio I/O 1 x 1/8" / 3.5 mm TRS Stereo Line Input
Other I/O 1 x Block (RS-485) Input
1 x Mini-DIN 8-Pin (RS-232)
Power
PoE Support PoE 802.3af
Power I/O 1 x Barrel (12VDC up to 1 A) Input
Power Consumption Power Supply: 110 to 220 VAC at 2 A (12 W)
Environmental
Operating Temperature 14 to 122°F / -10 to 50°C
Storage Temperature -40 to 158°F / -40 to 70°C
Operating Humidity 20 to 80%
Storage Humidity 20 to 95%
General
Dimensions (W x H x D) 5.9 x 6.6 x 5.9" / 15 x 16.75 x 15 cm
Weight 3.1 lb / 1.4 kg
Packaging Info
Package Weight 5.075 lb
Box Dimensions (LxWxH) 11.2 x 10.1 x 9.1"

In the Box

  • FeelWorld NDI20X NDI PoE PTZ Camera with 20x Optical Zoom
  • Power Adapter
  • IR Remote
  • RS-232 Cable
  • RS-485 Terminal Block
  • Barcode: 68621
  • UPC Barcode: 6971863814247
  • Supplier Code: NDI20X
