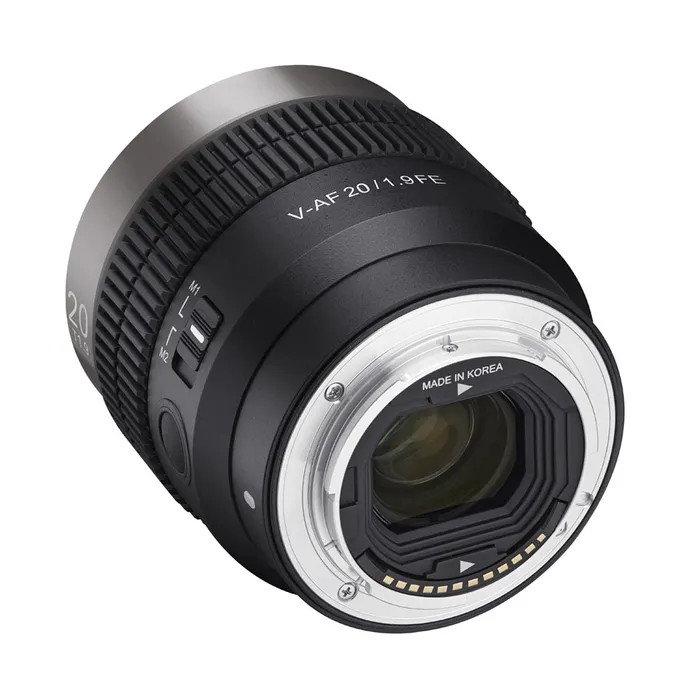

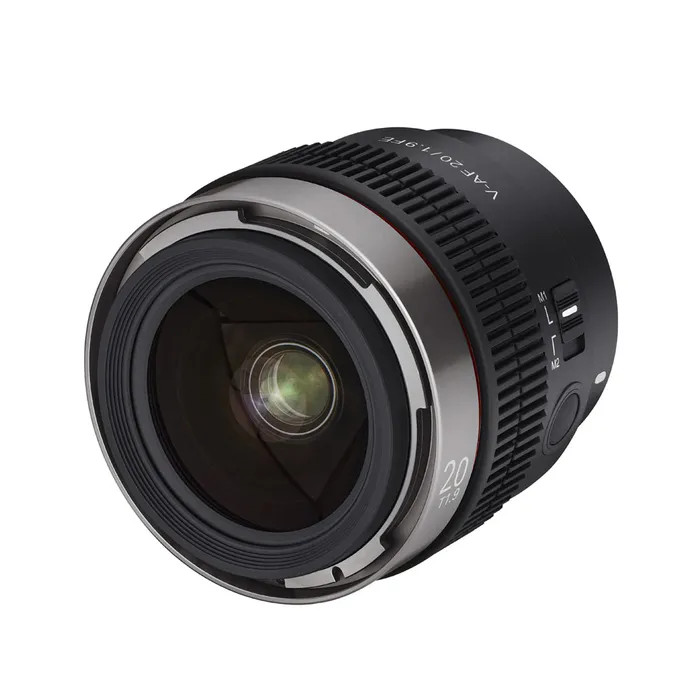

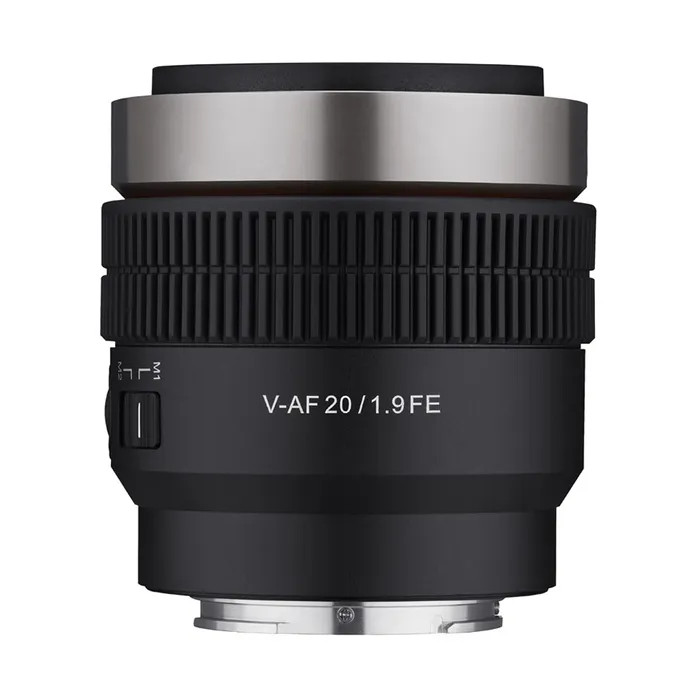

Samyang Cine V-AF 20mm T1.9 FE Lens (Sony E)

SKU:
SY89104

Key Features

  • Full-Frame Format for Sony E
  • T1.9 Maximum Aperture
  • Supports Sensors up to 8K
  • Compact for Gimbals & Drones
  • Autofocus with Focus Save
  • LED Tally Lamp on Front
  • Multilayer Coating Cuts Flare
  • 94.5° Angle of View
  • 19.1cm Minimum Focus Distance
  • Color-Matched V-AF Series
$949.00
$949.00
$733.00
(You save $216.00 )

Or buy now, pay later with:

zip after qcard-payment credit-capable-payment
Adding to cart… The item has been added

Overview

The Samyang Cine V-AF 20mm T1.9 FE Lens is an ultralightweight, ultracompact cinema prime for Sony E-mount cameras, covering full-frame sensors up to 8K. Built for single operators, gimbal rigs and drones, it pairs a wide 20mm focal length with a fast T1.9 maximum aperture, giving a wide field of view with strong low-light performance and a soft, cinematic look from its 9-blade iris. This is one of five focal lengths in the Cine V-AF series, all sharing a unified form factor and center of gravity so lenses can be swapped without rebalancing supporting equipment.

Autofocus makes the 20mm easy to use on gimbals and drones where manual pulling is impractical, and a dedicated switch saves focus settings when moving between autofocus and manual focus modes. Tally LEDs on the front and mount index let you see at a glance whether the camera is recording, and a multicoating protects against glare for cleaner images in bright or backlit conditions. All lenses in the V-AF series are color-matched, so swapping between focal lengths mid-shoot does not introduce a visible color shift.

Autofocus Built for Gimbals and Drones

The autofocus function is especially useful for single operators and drone or gimbal capture, and each lens in the series includes the Focus Save function typically found in professional cine equipment along with a custom mode for video-specific firmware functions. A manual focus index is available using the separately sold Manual Focus Adapter accessory, and switching to manual focus is as simple as sliding a button.

Unified Form Factor Across the V-AF Series

The Cine V-AF series shares a common form factor and center of gravity across its five focal lengths, from ultra-wide to medium-telephoto, eliminating the need to reset balance and rig setup after a lens change.

Recording Status Tally Lamps

Tally lamps on the lens front and mount index help confirm whether the camera is recording, which is especially useful when shooting solo or in a small space without a full crew monitoring the setup.

Optical

Focal Length 20mm
Maximum Aperture T1.9
Lens Format Coverage Full-Frame (43.3 mm Image Circle)
Angle of View Full Frame Diagonal: 94.5°
Super 35 Diagonal: 71.6°
Minimum Focus Distance 19.1 cm
Aperture/Iris Blades 9

General

Lens Mount Sony E
Gear Standard 0.8 MOD
Gear Rotation Focus: 300°
Electronic Communication No
Image Stabilization No

Physical

Dimensions Diameter (Maximum): 72.2 mm
Diameter (Front): 70 mm
Length: 76.9 mm
Weight 296 g

What's Included

  • Samyang Cine V-AF 20mm T1.9 FE Lens (Sony E)
  • Front Lens Cap
  • Rear Lens Cap
  • Barcode: 73847
  • UPC Barcode: 8809298889104
  • Supplier Code: SY89104
