Overview
65Wh NP-F Battery with D-tap and USB-C
LB-SF65C is a new 65Wh large capacity NP-F type DV battery with regulated 12V D-tap output and 25W USB-C in/out, widely compatible with pro-video gears.
65Wh Large Capacity
LB-SF65C consists of 6pcs battery cells and has 65Wh/9020mAh large capacity to keep your video devices powered for longer time. The constant power load is 30W/4A.

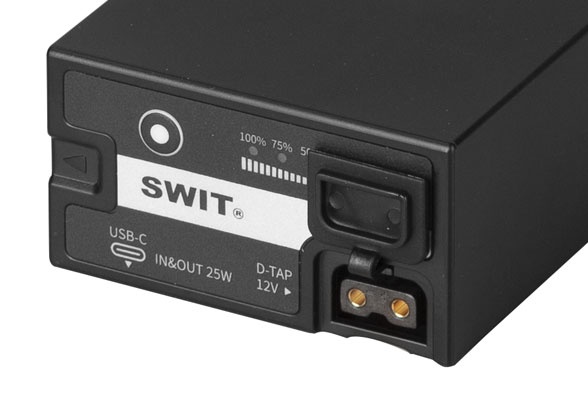

Reg. 12V D-tap Output
The LB-SF65C NP-F battery provides a D-tap power output socket of regulated 12V voltage, widely compatible with various kinds of video devices.
* The D-tap has 7.2V to 12V (Reg.) conversion and it’ s not allowed to charge input via this D-tap socket.

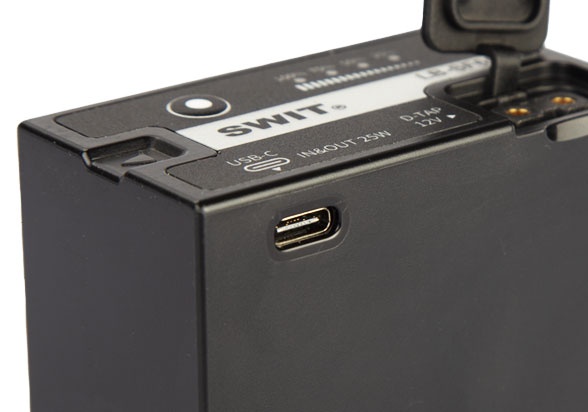

USB-C 25W Output
Fast Charging iPhone 12/13
LB-SF65C provides a USB-C sockets, supports 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A, 25W power output to fast charge iphone 12/13 and all kinds of USB-C smart phones or tablets, with BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols.
USB-C 25W Charging Input
You can also charge LB-SF65C by USB-C charger. Supports PD 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A, 25W power input, which means you can fully charge the 65Wh battery within 3.5 hours.
4-level Power Indicator
Press the power check bottom, the 4-level LEDs indicates remaining power percentage.
| Nominal Voltage | 7.2V |
| Capacity | 65Wh, 9.02Ah |
| Max power load | 30W, 4A |
| D-tap | 12V (reg.) 1.7A, 20W |
| USB-C | 25W input: 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A 25W output: 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A BC1.2, QC2.0/3.0, PD2.0/3.0, FCP, SCP |
| Original batteries | SONY NP-F770, NP-F970 |
| Dimension | 71×39×76mm |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
| Net weight | Approx 345g |
- Barcode: 60715
- UPC Barcode: 6948193511375
- Supplier Code: LB-SF65C
