SWIT Pocket MINO-S140 V-mount Battery Pack 140Wh

SWIT Pocket MINO-S140 V-mount Battery Pack 140Wh

SKU:
MINO-S140
(No reviews yet) Write a Review
Key Features
  • Tiny V-mount battery, Pocket fit
  • 140Wh/9.7Ah high capacity
  • 150W/12A constant high load
  • 1x D-tap output & charging input
  • 1x USB-A 5V/2A output
  • 1x USB-C 48W input & 65W output
  • 4-step LED power indicator
  • Power info for both SONY & RED
  • Wire-Free internal technic
  • Multiple circuit protections

Swit

$532.00

Or buy now, pay later with:

zip after qcard-payment credit-capable-payment

If the product is showing in stock, we'll ship it out the same day if the order is placed before 2pm.

The estimated shipping timeframe is based on the assumption that the supplier has this item in stock. We'll contact you to communicate the actual shipping timeframe after the order is placed.

If you need the item before a certain date, please contact us to confirm before ordering.

Adding to cart… The item has been added

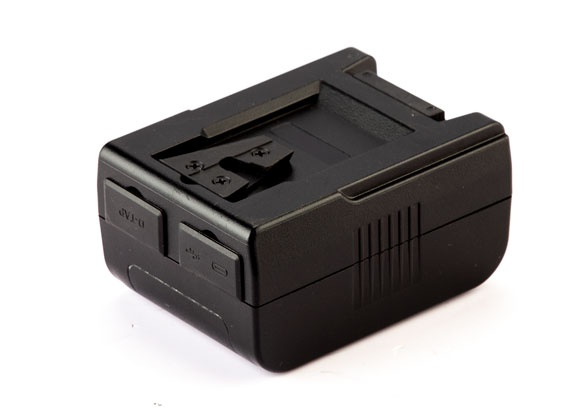

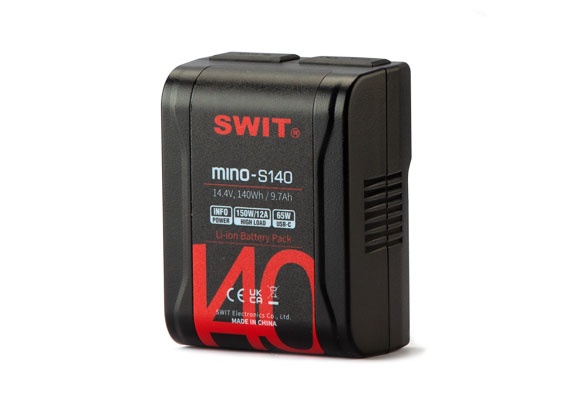

MINO-S140 Overview



Tiny Size 140Wh Battery



The smallest 140Wh V-mount battery you’ve ever seen!

MINO-S140 is a pocket fit size large capacity battery with 65W USB-C socket, for cameras, monitors, accessories, tablets, laptops and all kinds of devices in the filmset.

150W/12A High Load

MINO-S140 consists of 8 high capacity cells, with 140Wh/9.7Ah high capacity, and support at least 150W/12A constant high load output, for high power cine cameras and lights.

A Little Bigger, Much More Capacity

Comparing with the hot selling SWIT 98Wh Pocket V-mount battery, the new MINO-S140 provides 43% more capacity, but still with tiny size for convenient carrying.

D-tap, USB-A and USB-C

The tiny size MINO-S140 didn' t compromize on DC sockets.
D-tap x1 - 150W/12A high load (Support charging input) USB-A x1 - 5V/2A output
USB-C x1 - 65W output and 48W charging input

USB-C 48W Charging Input

MINO-S140 battery can be charged by USB-C charger, supports PD 5V 2.4A, 9V 2.4A, 12V 2.4A, 15V 2.4A and Max 20V 2.4A, which means you can fully charge the 140Wh battery within 3.5 hours.

USB-C 65W Power Output

You can power laptop via USB-C by MINO-S140 battery on the filmset. Supports 5V 3.25A, 9V 3.25A, 12V 3.25A, 15V 3.25A and Max 20V 3.25A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols.
(For Macbook Air/13, Macbook Pro 13/15/16, Huawei Matebook E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and almost all laptops with USB-C ports)

MINO-S140 Specs

Battery plate

V-mount

Nominal voltage

 14.4V

Capacity

140Wh, 9.7Ah

Power IN&OUT

 Electrodes: 150W 12A out, 16.8V 3A in

D-tap: 150W 12A out, 16.8V 3A in
USB-A: 10W, 5V/2A out

USB-C: Max 65W out, 5V/9V/12V/15V/20V(Max) 3.25A

BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP

Max 48W in, 5V/9V/12V/15V/20V(Max) 2.4A

Dimension

105×79×55.5mm
      Charging Temperature 0-40°C
      Discharging Temperature

-20°C-50°C (Capacity and Max Load may decrease when operating below 0°)

Net weight

 713g
  • 1x SWIT Pocket V-mount Battery Pack 140Wh
  • Barcode: 57957
  • UPC Barcode: 6948193511160
  • Supplier Code: MINO-S140
