KEY FEATURES
- Tilta Nucleus-M Left Handgrip
- Tilta Nucleus-M FIZ Lens Control Motor
- Tilta DSLR Lens Follow Focus Adapter
- Tilta D-Tap to 7-Pin Motor Power Cable

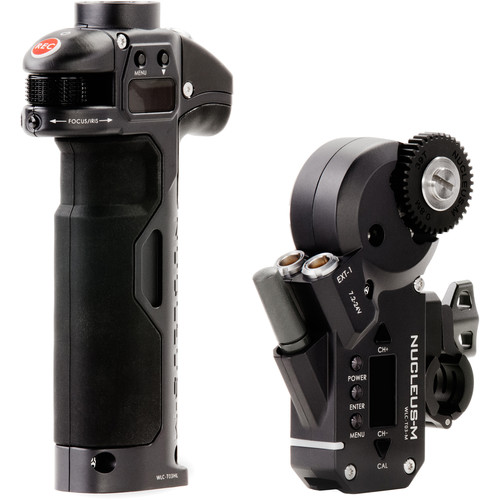

The Tilta Nucleus-M Wireless Lens Control System Partial Kit III contains the essential elements for pulling focus wirelessly while handholding. The kit includes the Nucleus-M left handgrip controller, one Nucleus-M motor, one removable lens belt, two motor power cables, and a battery charger unit (batteries not included). The handgrip controller provides wireless fingertip lens control while functioning as handgrip support for your camera rig, and the system enables pulling either focus, iris, or zoom on your lens. If you are using a lens that does not have standard cine-style gears, then use the included lens belt to add gears to your lens.
This partial kit is a single axis system, but the Nucleus-M left handgrip controller will allow you to control additional motors (not included) so you can control more than one lens ring. The included motor power cables allow you to power a motor from either a D-Tap power source or a second motor via the 7-pin to 7-pin connector. The included power cables allow you to easily add a second motor (not included) to the system. The included rosettes aid in mounting the handgrip controller to your camera or rig with ARRI-style rosettes. The system can wirelessly pull focus from up to 1000' away, and with separately available batteries you can power the hand unit for approximately 10 hours on a single charge.
Tilta Nucleus-M Handgrip (Left) Specs
| Current | 0.1 A |
| Voltage | Battery: 7.2 V External: 7.2-14.8 V |
| Port | Power/Communication: 4-pin |
| Rotation | 85, 180, 310° |
| Battery Type | 18650 |
| Operating Frequency | 2.4 GHz |
| Emission Power | 10-100 MW |
| Maximum Transmission Distance | 33-328' / 10-100 m |
| Operating Temperature Range | -4 to 122°F / -20 to 50°C |
| Material of Construction | Aluminium alloy, stainless steel ABS plastic, rubber |
| Dimensions | With Thumb Unit: 6.9 x 3.3 x 2.3" / 17.6 x 8.5 x 6. cm Without Thumb Unit: 6.9 x 3.3 x 1.2" / 17.6 x 8.5 x 3.1 cm |
| Weight | With Thumb Unit: 12.5 oz / 355 g Without Thumb Unit: 12 oz / 340 g |
Tilta Nucleus-M FIZ Lens Control Motor Specs
| Gear Mod | 0.8 |
| Gear Pitch | 32 |
| Number of Gear Teeth | 35 |
| Face Width | 0.4" / 10 mm |
| Operating Frequency | 2.4 GHz |
| Maximum Range | 1640' / 500 m (unobstructed) |
| Emission Power | 30-100 MW |
| Current | Quiescent: 0.10 A, 14.8 V Conventional: 0.5 A, 14.8 V |
| Voltage | 7.2-24 V |
| Rod Compatibility | 19, 15 mm |
| Noise | 15 dB |
| Operating Temperature Range | -4 to 122°F / -20 to 50°C |
| Material of Construction | Aluminium alloy, stainless steel, ABS plastic |
| Dimensions | 4.50 x 3.25 x 1.38" / 11.43 x 8.26 x 3.49 cm |
| Weight | 6.7 oz / 190 g (motor only) 7.9 oz / 225 g (with 15mm rod adapter) 7.8 oz / 221 g (with 19mm rod adapter) |
Tilta DSLR Lens Follow Focus Adapter Specs
| Material of Construction | Silicone and plastic |
| Compatibility | Tilta Nucleus-M, Nucleus-Nano Most DSLR lenses |
| Dimensions | Not supplied by manufacturer |
| Weight | Not supplied by manufacturer |
Tilta Nucleus-M D-Tap To 7-Pin Motor Power Cable Specs
| Connectors | D-Tap, 7-pin LEMO-type |
| Length | 23" / 58.4 cm |
| Weight | 1.1 oz / 32 g |
Tilta ARRI-Standard Rosette Adapters For Nucleus-M Handgrip (L&R) Specs
| Material of Construction | Aluminium alloy, stainless steel |
| Dimensions (LxWxD) | 2.3 x 2 x 1.5" / 5.7 x 5.1 x 3.8 cm |
| Weight | 2.5 oz / 72 g |
Tilta Nucleus-M Battery Charger Specs
| Power Input | 100-240 VAC, 50/60 Hz, 0.15 A 5 VDC, 2 A |
| Power Output | 4.2 VDC, 650 mAh |
| Material of Construction | Plastic |
Tilta Nucleus-M Handgrip (Left)
Limited 2-Year Mechanical Warranty
Limited 1-Year Electrical Warranty
Tilta Nucleus-M FIZ Lens Control Motor
19mm Rod Adapter
19mm to 15mm Bushing
Limited 2-Year Mechanical Warranty
Limited 1-Year Electrical Warranty
Tilta DSLR Lens Follow Focus Adapter
Limited 2-Year Warranty
Tilta Nucleus-M D-Tap to 7-Pin Motor Power Cable
Limited 2-Year Warranty on Mechanical Parts
Limited 1-Year Warranty on Electrical Parts
Tilta Nucleus-M 7-Pin to 7-Pin Motor to Motor Connection Cable (21.65")
Tilta ARRI-Standard Rosette Adapters for Nucleus-M Handgrip (L&R)
2 x Mounting Screw
2 x Tightening Toggle
Limited 2-Year Warranty
Tilta Nucleus-M Battery Charger
AC Power Cable
Limited 2-Year Mechanical Warranty
Limited 1-Year Electrical Warranty
Tilta Nucleus-M 7-Pin to 7-Pin Motor to Motor Connection Cable (21.65")
- Barcode: 48654
- UPC Barcode: 631384550234
- Supplier Code: WLC-T03-K3
