SmallRig 6774 Advanced "Hawklock" Cage for Sony FX5

Overview

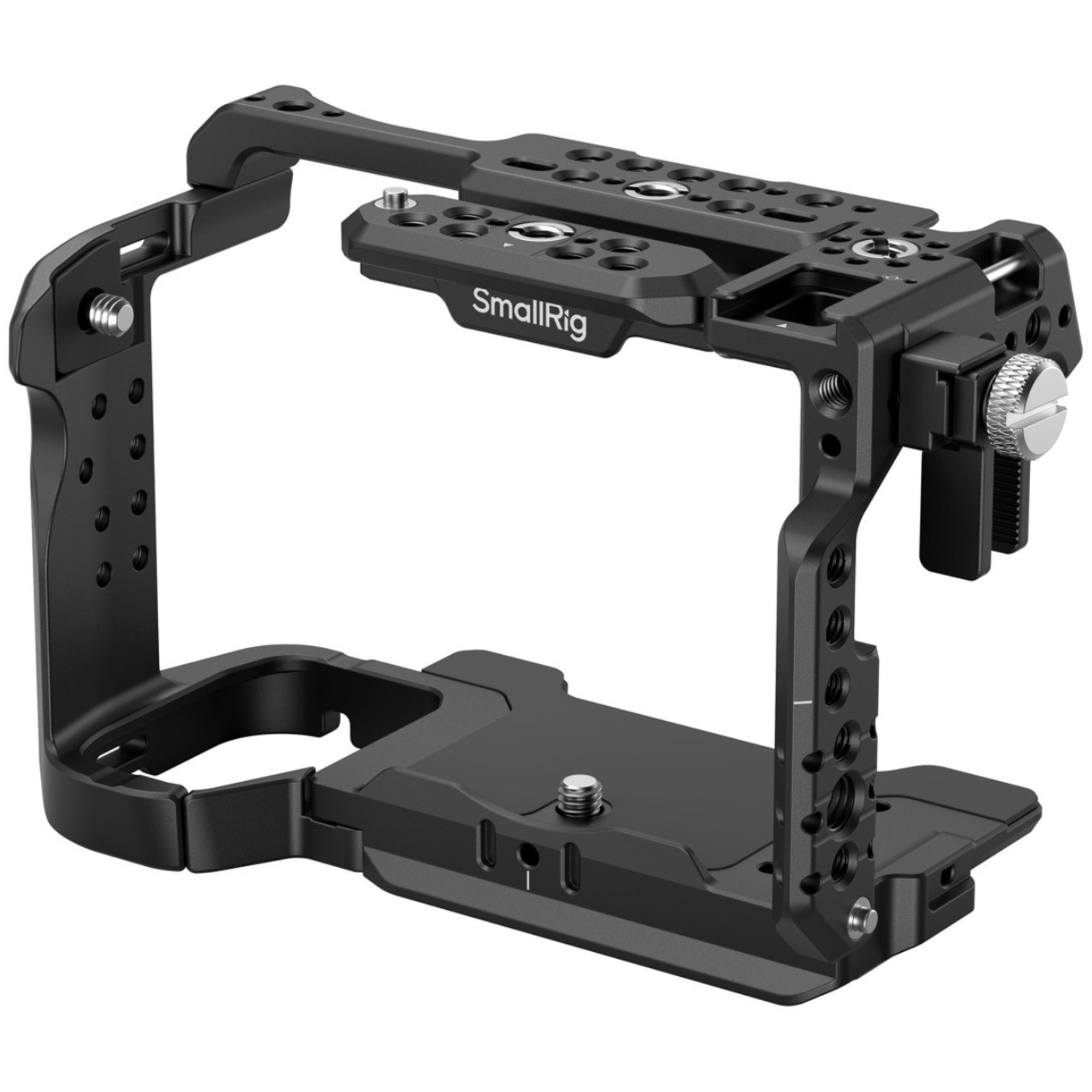

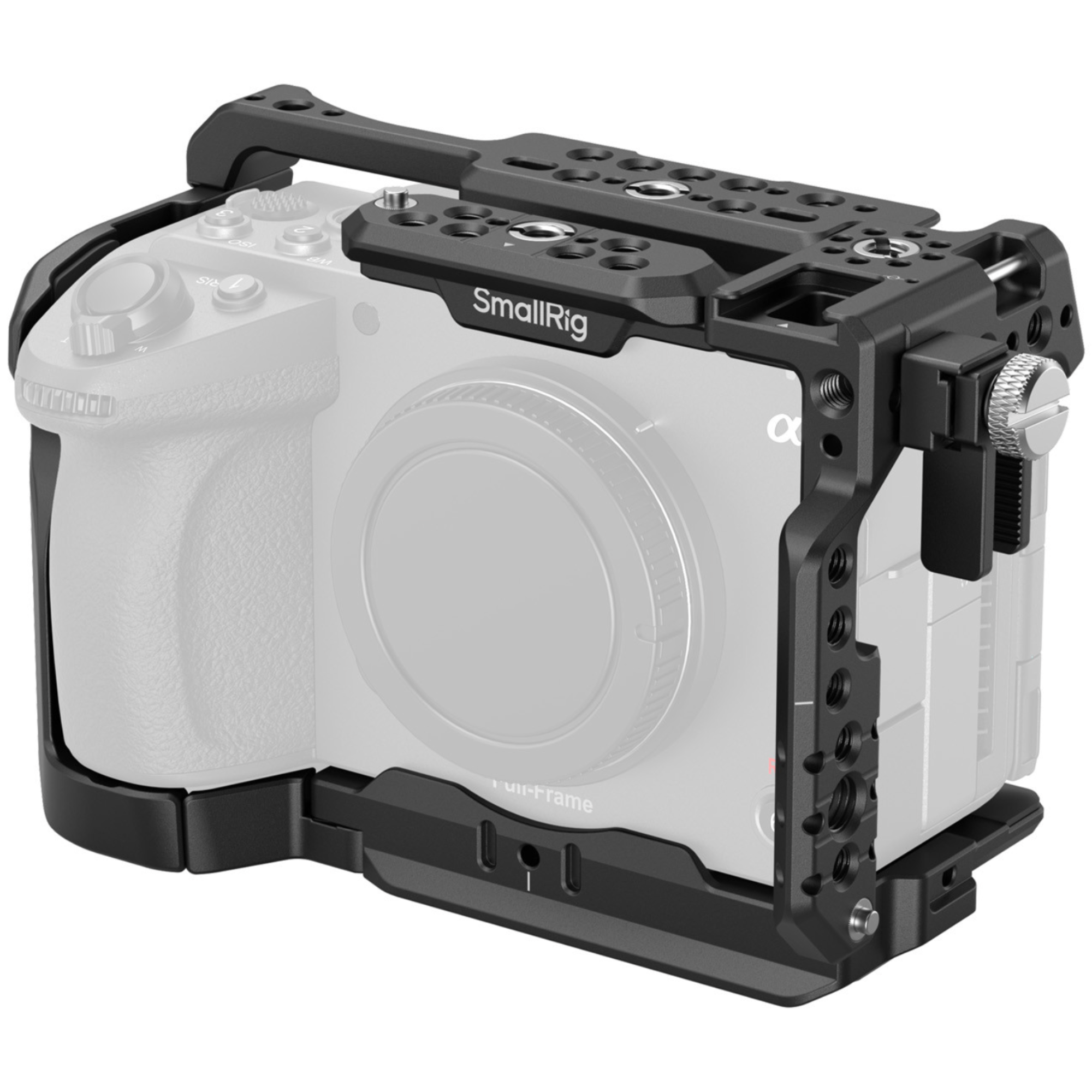

The SmallRig 6774 Advanced "Hawklock" Cage for Sony FX5 protects the camera body while providing multiple mounting interfaces for accessory expansion on the Sony FX5. Built from aluminum alloy and stainless steel with silicone detailing, the cage features a modular design with top mount plates and a U-shaped cage, with protective pads at all camera contact points to help prevent scratches.

Detachable Top Plates

The top mount plates are each secured with two screws and can be removed for compatibility with the Sony XLR handle (XLR-H2B) and electronic viewfinder (DVF-EL1B). The U-shaped cage is secured by three 1/4"-20 screws on both sides and the bottom to provide stable, anti-twist mounting.

Lever Battery Door Design

The battery compartment features a lever design that better follows the camera body's contours, improving finger support and grip comfort. A dedicated HDMI cable clamp helps protect the port and maintain stable signal transmission during shooting.

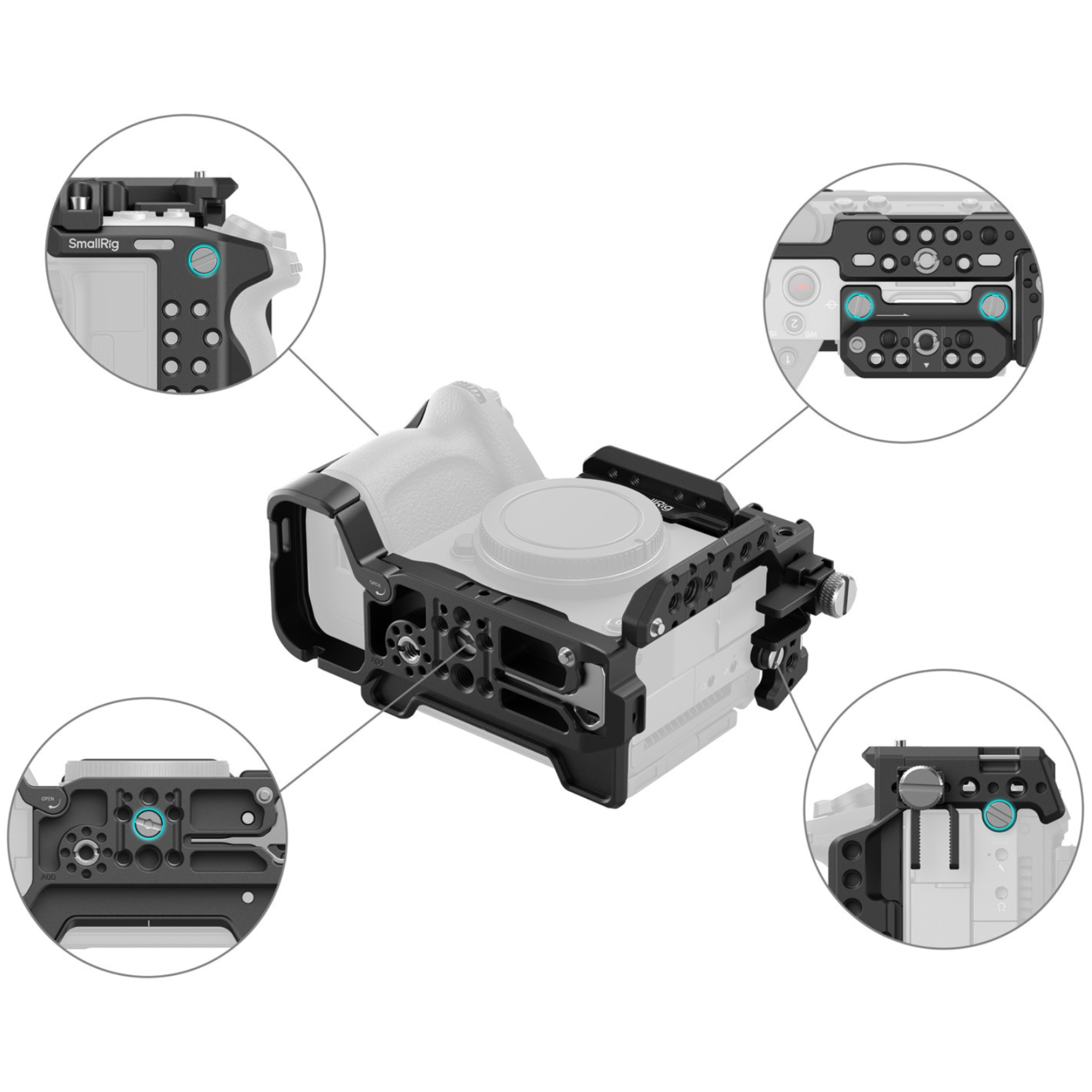

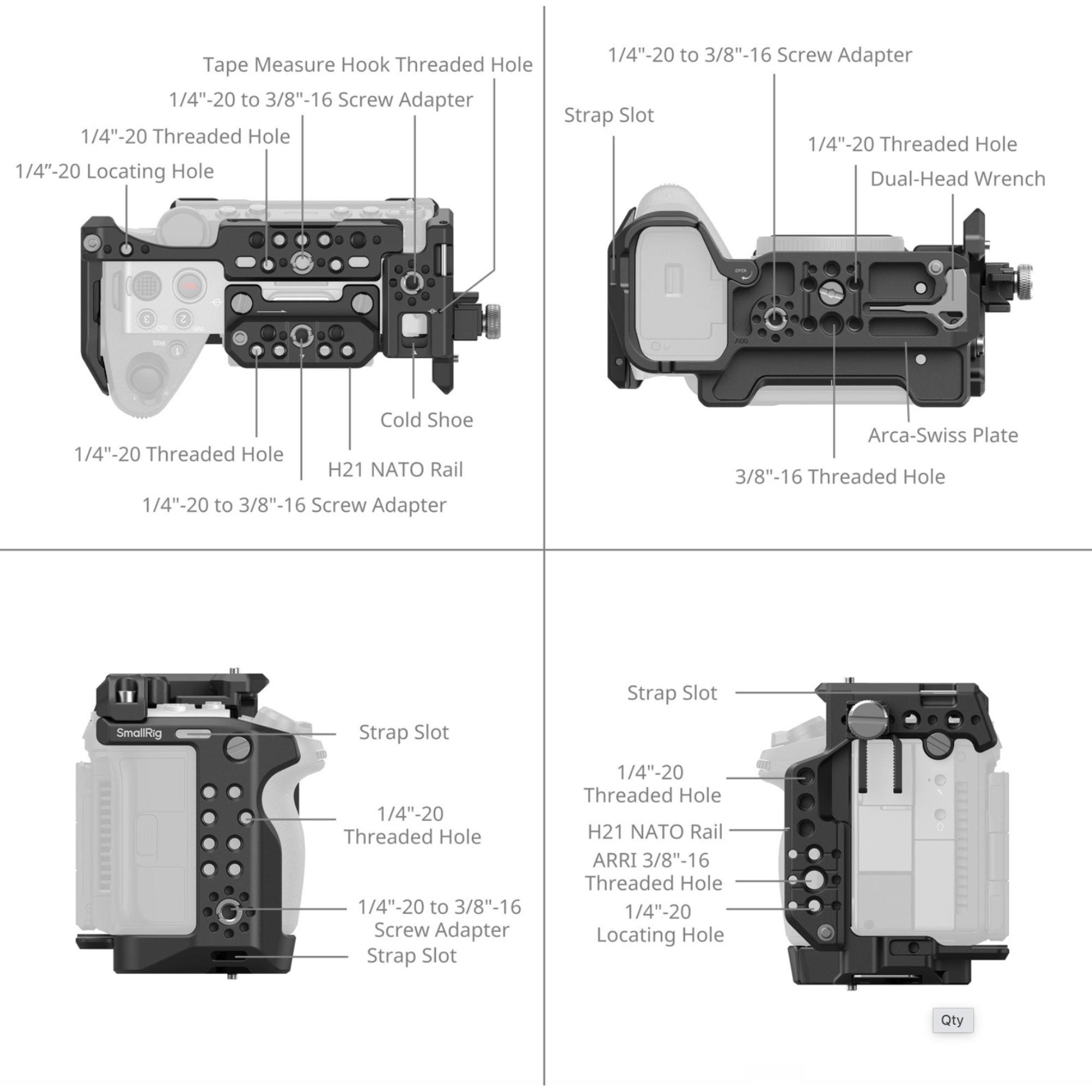

Multiple Accessory Mounting Points

• 1/4"-20 threaded holes
• 1/4"-20 locating holes
• 3/8"-16 threaded holes
• ARRI locating holes
• Wrist strap slot

Dual Anti-Drop NATO Rail & Arca-Type Plate

The NATO rail and Arca-type quick release plate feature an anti-drop design at both ends, enabling quick installation and removal while improving security in demanding shooting environments. A magnetic wrench is built into the cage for convenient access and easy assembly.

Compatibility:

• Designed for the Sony FX5.
• When using the top plate with the NATO rail, confirmed compatible hot shoe accessories include the Sony ECM-B1M, ECM-M1, ECM-B10, and the DJI Mic 2 hot shoe adapter.
• Confirmed incompatible hot shoe accessories include the Sony ECM-W3, ECM-W3S, and ECM-W2BT microphones.
• When using the Sony XLR handle (XLR-H2B) or Sony EVF (DVF-EL1B), all top plates must be removed first.
