Overview

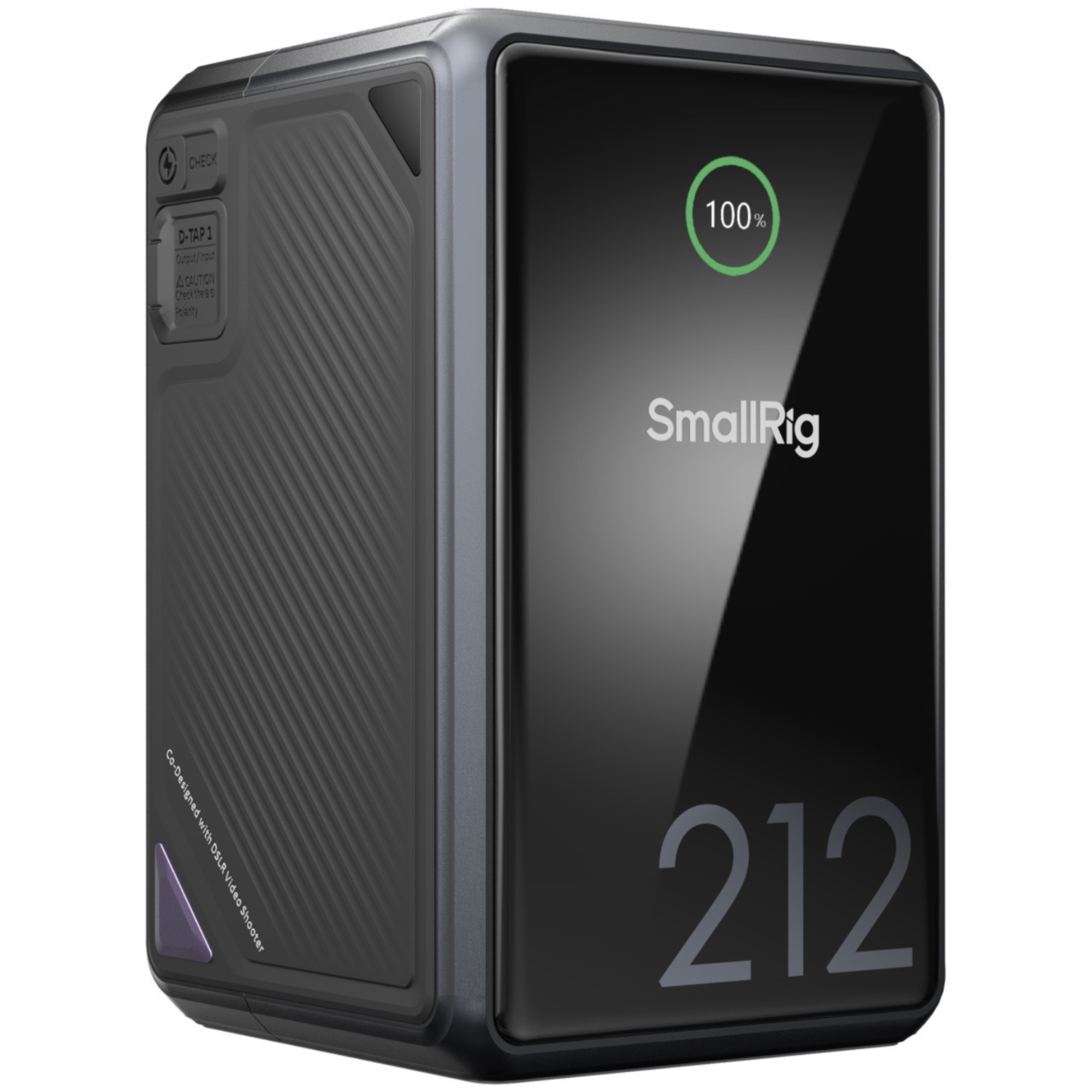

The SmallRig 4293B x Caleb Pike VB212 mini V Mount Battery is a compact, high-capacity power solution developed in collaboration with cinematographer Caleb Pike. Rated at 14.54V and 212.544Wh, it's built to power demanding video setups through long, high-intensity shoots, while its aluminum alloy frame, silicone-wrapped sides, and thickened polycarbonate front panel resist scratches, impacts, heat, and flames. From dual USB-C fast charging to smart app control, the VB212 packs professional-grade power management into a mini V-mount form factor.
140W PD 3.1 Fast Charging
Both USB-C ports support PD 3.1 140W bidirectional fast charging, so the battery can go from empty to fully charged in approximately 2 hours. An upgraded cooling system lets it sustain full-power discharge, including running 140W or lower fill lights at maximum brightness, right down to depletion without any drop in performance.

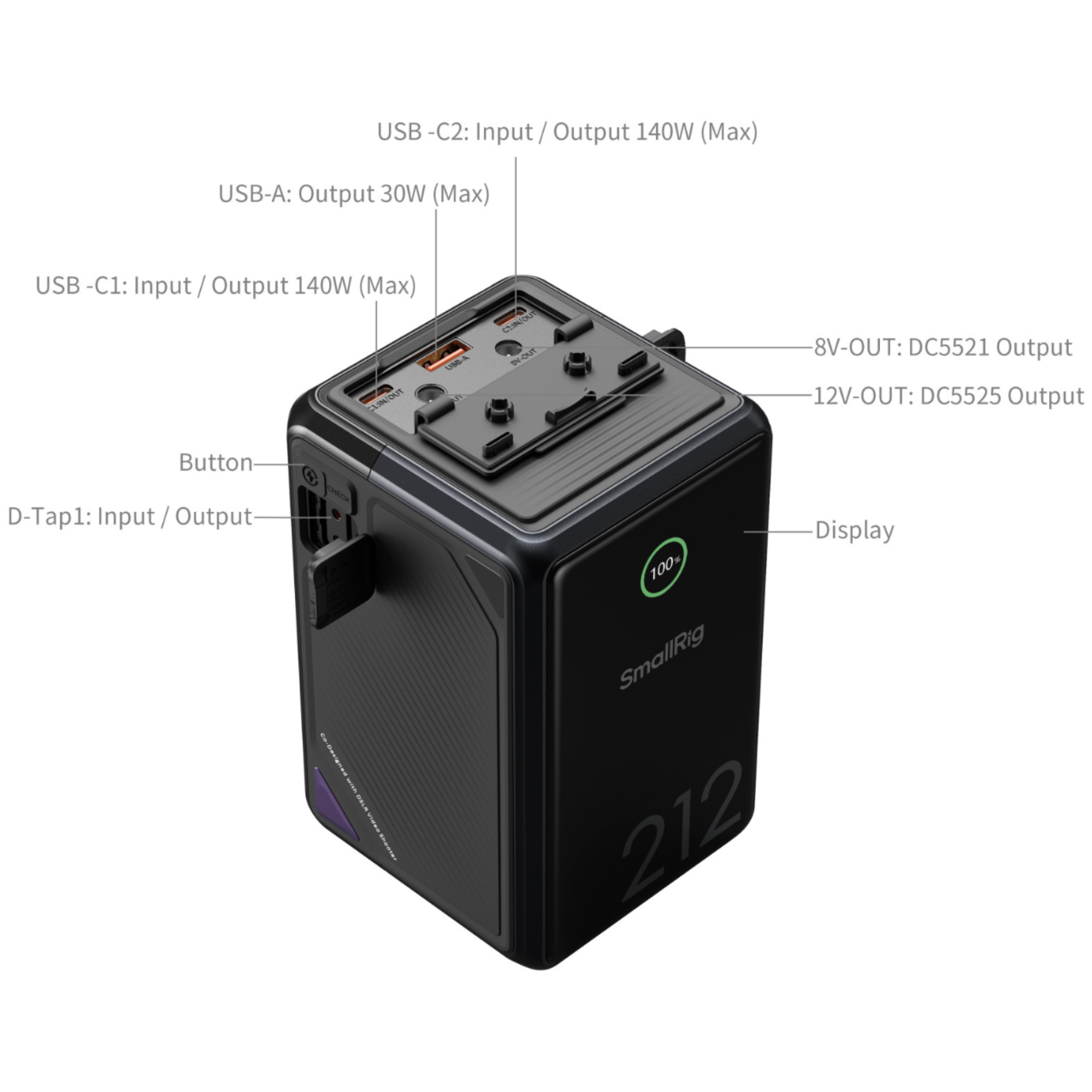

Versatile Power Port Selection

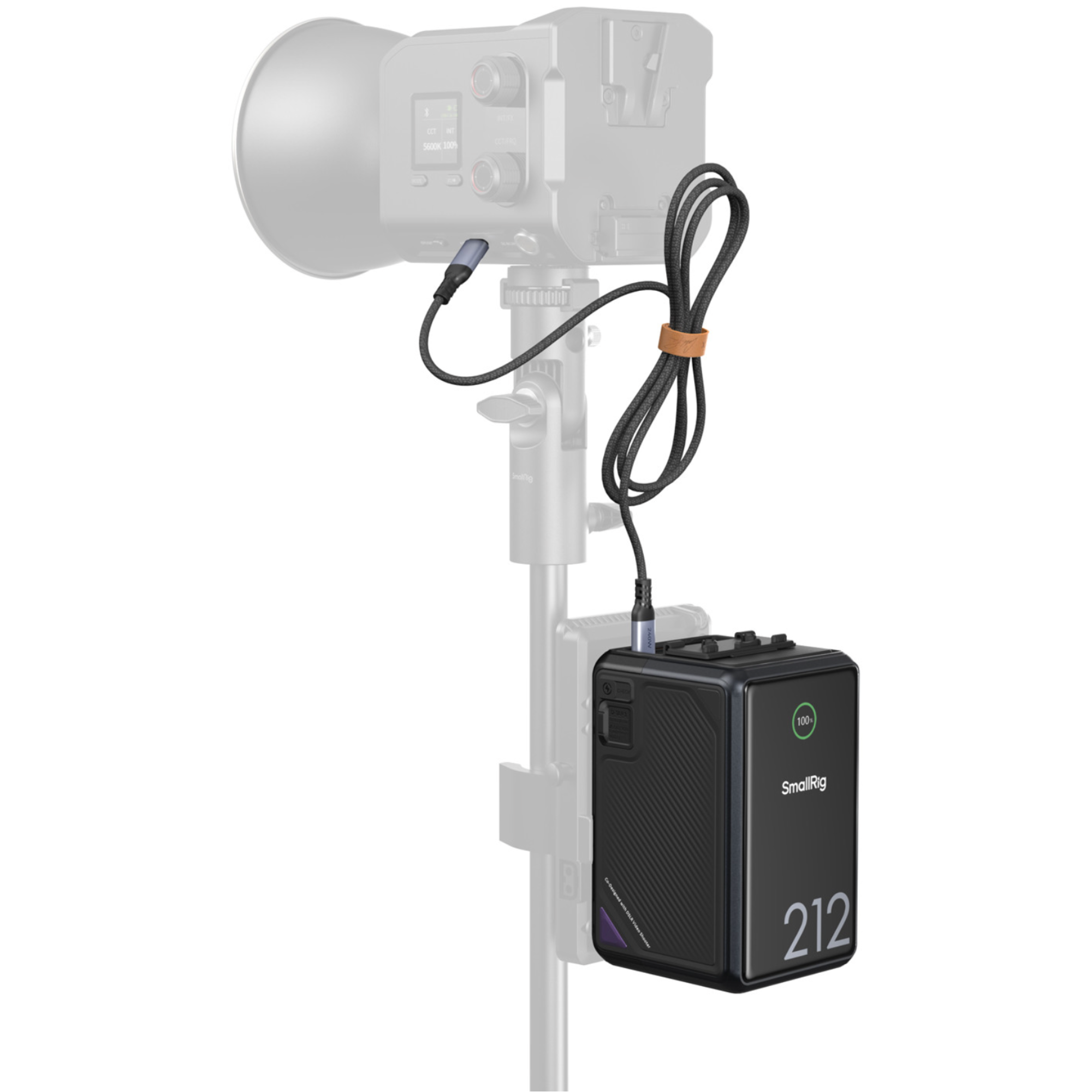

All ports can output simultaneously, powering an entire gear setup from a single battery and reducing the need for multiple power sources.
- 1x BP Port
- 2x USB-C Ports
- 2x D-Tap Ports
- 1x USB-A Port
- 1x 8V-OUT Port
- 1x 12V-OUT Port
Smart App Remote Control
A companion smartphone or tablet app lets you monitor and manage multiple batteries remotely, with real-time battery status, port control, and firmware updates for streamlined operation on set.
Safety & Rugged Construction
Premium LG battery cells, a smart BMS control chip, and precision multi-layer circuitry protect against over-temperature, over-current, over-voltage, short circuits, overcharging, and over-discharging. Housed in an aluminum alloy frame with silicone-covered sides and a thickened polycarbonate front panel, the VB212 is built to withstand scratches, impacts, heat, and flames.

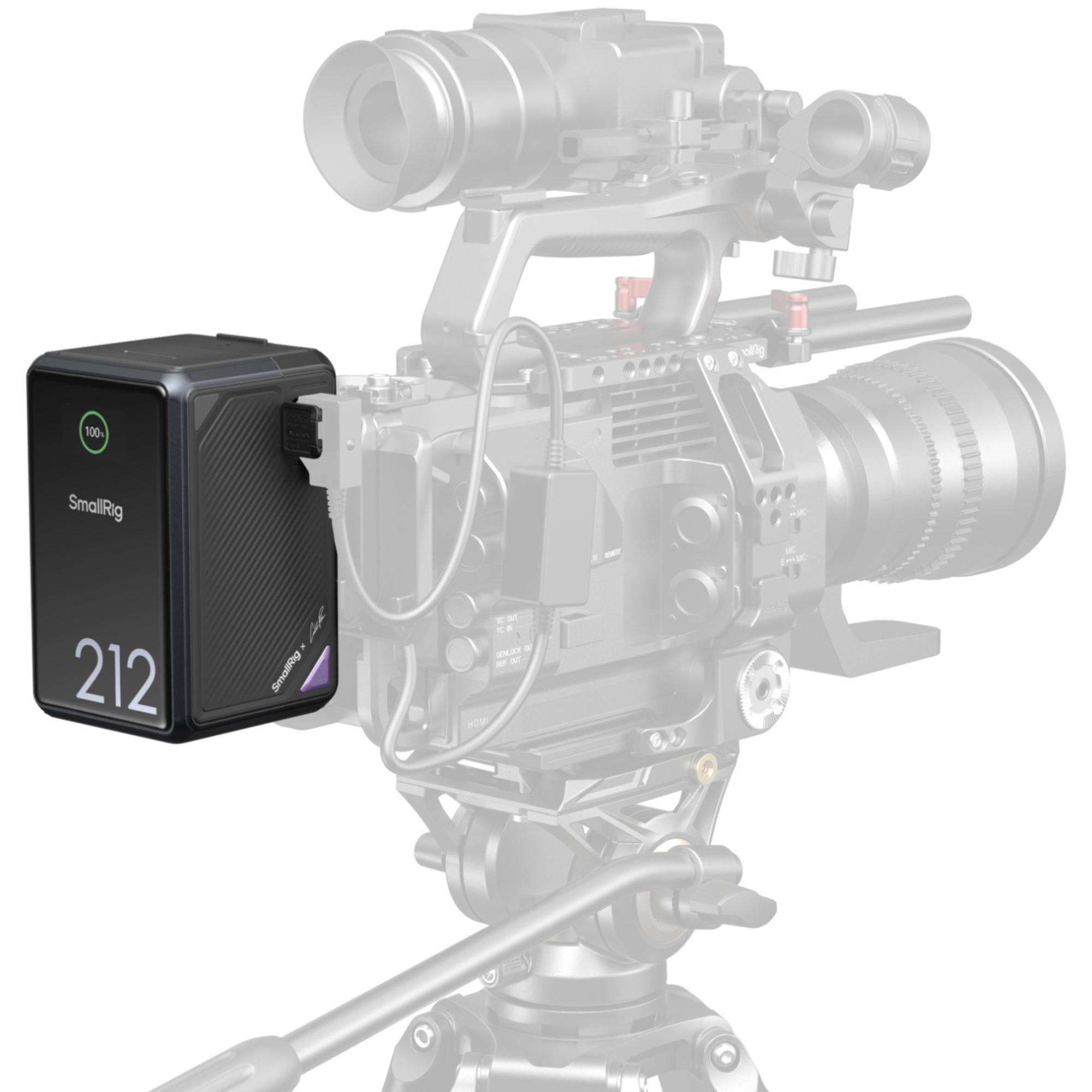

Compatibility:
- Mirrorless cameras
- Camcorders
- Cameras
- Monitors
- Follow focuses
- Image transmitters
- LED video lights
- Cell phones
- Tablets
- Laptops
General
| Certifications | FCC, CE, RoHS, ISED, PSE, RCM |
Physical

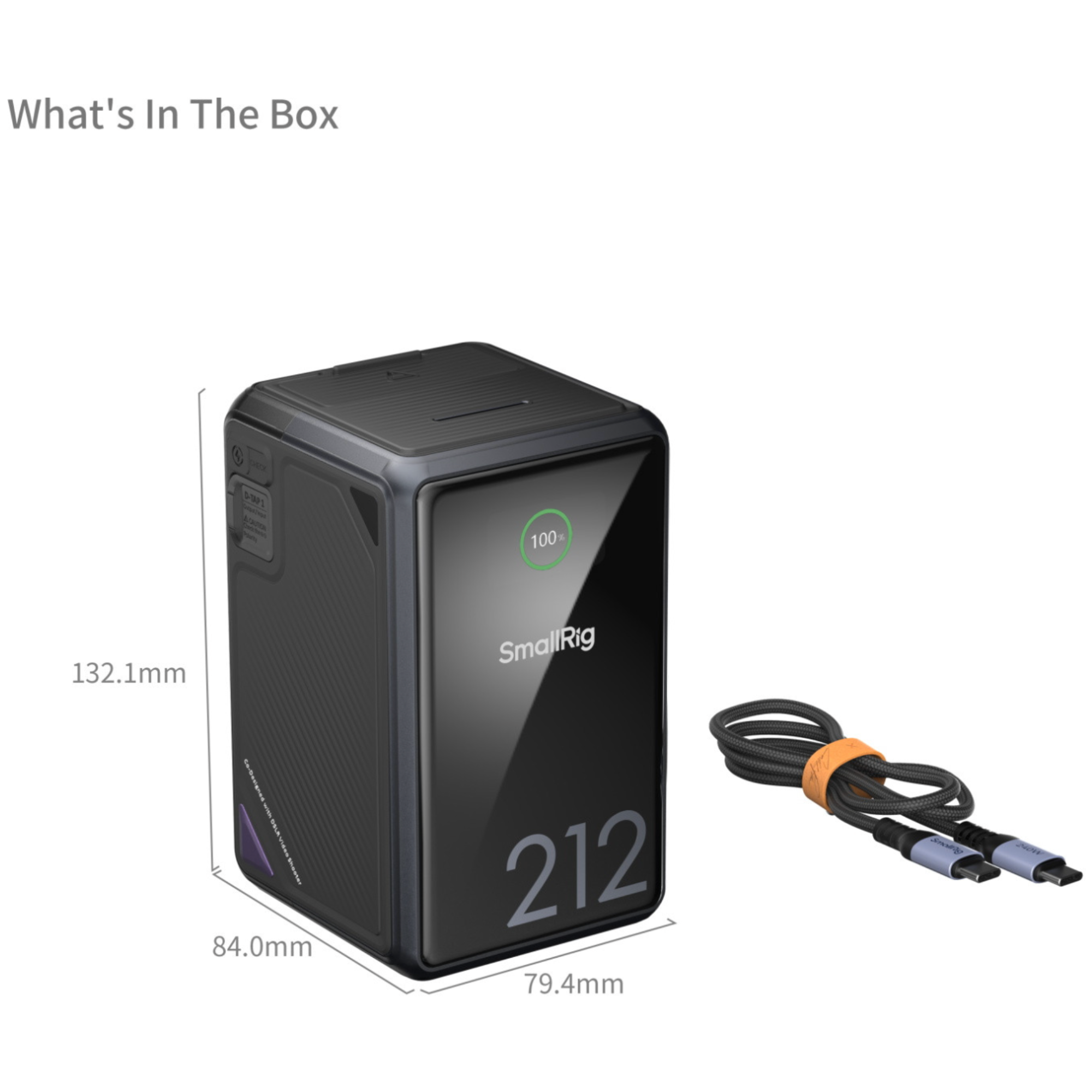

| Dimensions | 132.1 x 84.0 x 79.4 mm |
| Weight | 1360.5 ± 10.0 g |
| Materials | Aluminum Alloy, Flame-Retardant PC, TPU, Silicone |
Inputs/Outputs
| BP Port | Input: 16.8V / 8A (Max) Output: 14.54V / 10A (Rated) |
| D-Tap Ports (x2) | Input: 16.8V / 8A (Max) Output: 14.54V / 8A (Rated) |
| USB-C Ports (x2) | Input/Output: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A; 140W (Max) Charging Protocols: PD3.1, QC2.0, QC3.0, PPS, AFC, DCP-1.5A, APPLE-2.4A |
| USB-A Port | Output: 5V/3A, 9V/3A, 12V/2.5A; 30W (Max) Charging Protocols: QC2.0, QC3.0, AFC, DCP-1.5A, APPLE-2.4A |
| 8V-OUT Port | Output: 8V / 3A (Max) |
| 12V-OUT Port | Output: 12V / 3A (Max) |
Power
| Battery | Rated Voltage: 14.54V Rated Capacity: 14400mAh Rated Energy: 212.544Wh Total Cell Capacity: 57600mAh (12 x 4800mAh Cells) Rated Power: 212W Discharge / 140W Charge |
| Discharge Cut-off Voltage | 11.2V |
| Charging Options | USB-C Charger, BP Port Charger, 16.8V D-Tap Charger |
Environmental
| Charging Temperature | 0°C to 50°C |
| Discharging Temperature | -20°C to 60°C |

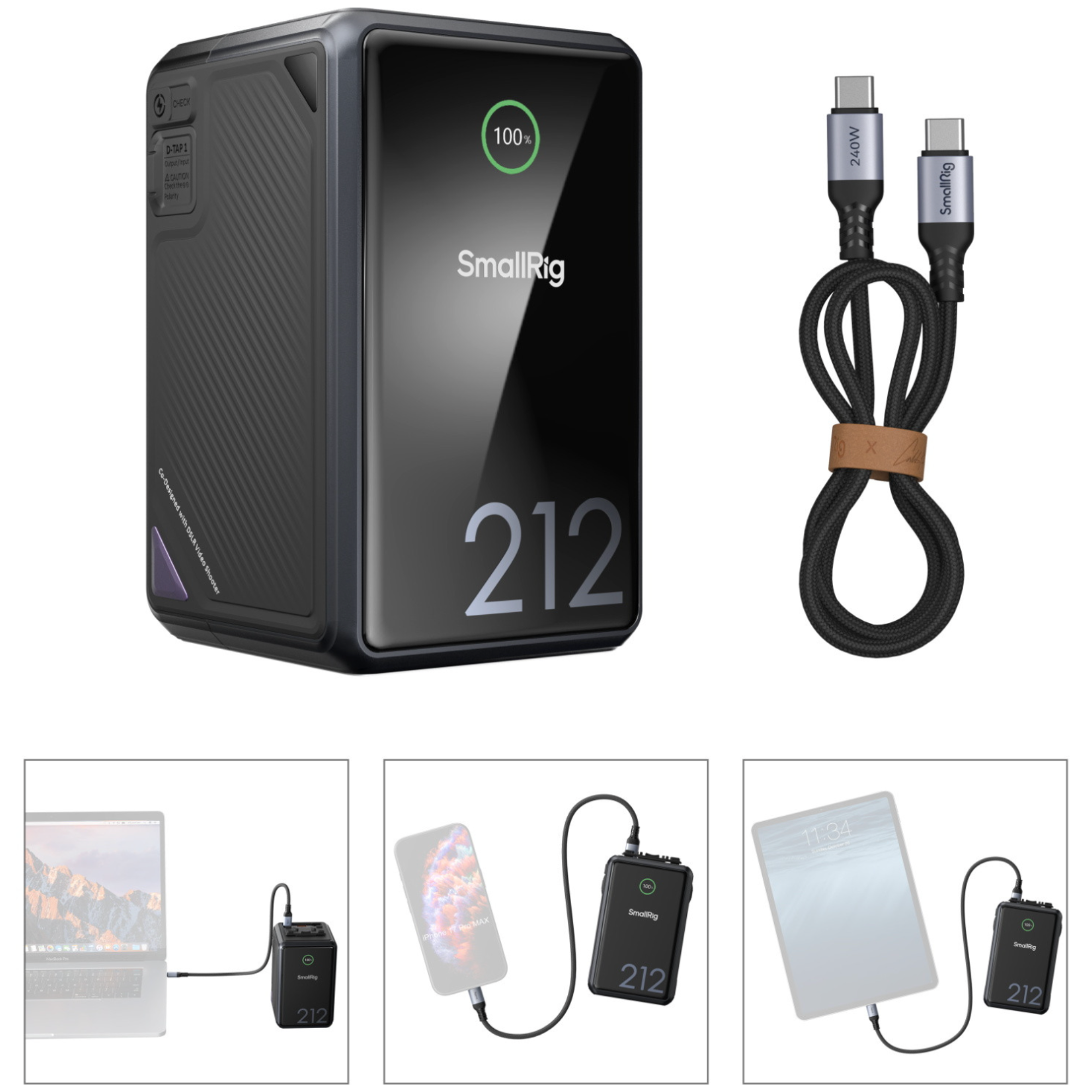

What's Included
- SmallRig 4293B x Caleb Pike VB212 mini V Mount Battery
- 240W USB-C Charging Cable
- Barcode: 91998
- UPC Barcode: 6941590027340
- Supplier Code: 4293B
