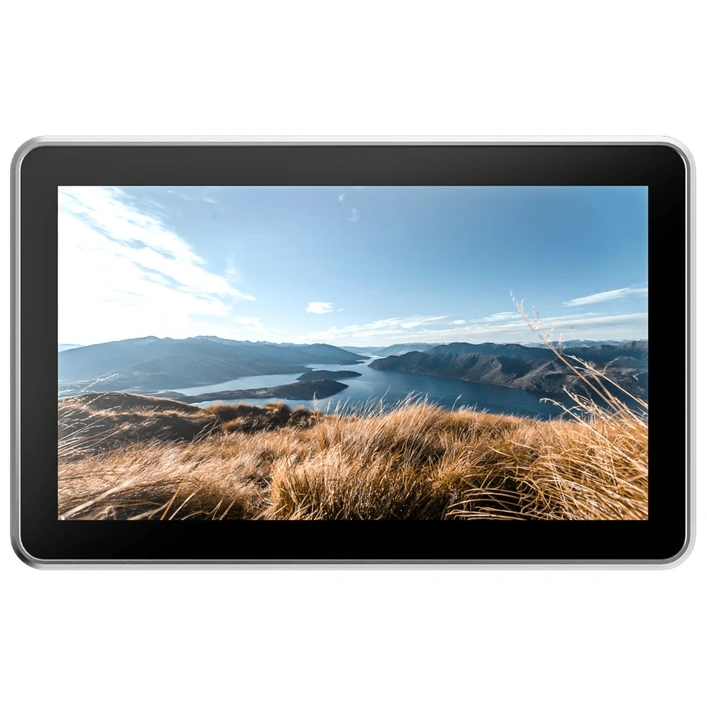

Viltrox DC-X2 6" Touchscreen HD On-Camera Monitor

Viltrox DC-X2 6" Touchscreen HD On-Camera Monitor

SKU:
DC-X2

Key Features

  • Compact 6" On-Camera Monitor
  • 1920 x 1080 Touchscreen Display
  • 2000 cd/m² Brightness
  • 3D LUT Support
  • HDMI 1.4 Input & Loop Output
  • Image Tools Incl. Waveform
  • Up to DCI/UHD 4K30
  • NP-F Battery Plate
  • USB-C DC Input
  • Includes Sun Hood & Shoe Adapter

Viltrox

$449.00

Or buy now, pay later with:

after qcard-payment credit-capable-payment

If the product is showing in stock, we'll ship it out the same day if the order is placed before 12pm.

The estimated shipping timeframe is based on the assumption that the supplier has this item in stock. We'll contact you to communicate the actual shipping timeframe after the order is placed.

If you need the item before a certain date, please contact us to confirm before ordering.

Adding to cart… The item has been added

Overview

The Viltrox DC-X2 6" Touchscreen HD On-Camera Monitor puts a large, very bright view of your shot right where you need it. Its compact 6" 1920 x 1080 touchscreen reaches 2000 nits, bright enough to read in direct sun, and covers the full Rec.709 colour range for an accurate preview.

The HDMI 1.4 input accepts DCI or UHD 4K at up to 30 fps, plus 1080p, and the HDMI loop output passes the picture on to a second monitor or recorder. A 3.5 mm headphone jack lets you monitor the audio carried over HDMI.

Monitoring Tools

Judge exposure and focus before you record:

  • Waveform, RGB parade and histogram
  • False colour
  • Pixel-to-pixel zoom to confirm critical focus
  • Custom 3D LUTs, loaded over USB

NP-F or USB-C Power

Power it from an NP-F battery on the built-in plate, or from a DC barrel or USB-C supply when you're working all day. The USB port also handles firmware updates, and an NP-F550 battery, sun hood, ball head shoe mount adapter and a hard-shell carry case come in the box, so it's ready to go.

Display

Display Size6.0"
Resolution1920 x 1080
Panel TypeLCD
TouchscreenYes
Brightness2000 nits (Peak)
Contrast Ratio1000:1
Aspect Ratio16:9
Colour Gamut100% Rec. 709

Connections

Video PortsHDMI 1.4 Input
HDMI 1.4 Output
Video FormatsHDMI
DCI 4K at 24/25/30
UHD 4K at 24/25/30
1080p
Audio Ports3.5 mm Headphone Output
Power PortsBarrel Input (12 V, 2 A)
USB-C Input (5 V, 3 A)
Embedded AudioHDMI

Monitoring Tools

LUTsYes
Exposure & ColourWaveform, RGB Parade, Histogram, False Colour
Focus AidsPixel-to-Pixel Zoom
FramingImage Flip

Power

BatteryNP-F (Fixed Plate)
Power Input12 to 18 V, 2 A
Power Consumption13.5 W

Physical

Mounting Points1/4"-20 Thread (Bottom & Right)
MaterialsAluminium
Operating Conditions0 to 65°C
Storage Conditions0 to 75°C
Dimensions155.4 x 98.4 x 26.8 mm
Weight324.5 g

What's Included

  • Viltrox DC-X2 6" Touchscreen HD On-Camera Monitor
  • NP-F550 Battery
  • Ball Head Shoe Mount Adapter
  • Sun Hood
  • HDMI Cable
  • Mini-HDMI to HDMI Cable
  • USB-C Power Cable
  • Screen Protector
  • Hard-Shell Carry Case
  • Barcode: 93452
  • UPC Barcode: 6953400304947
  • Supplier Code: DC-X2
