Overview

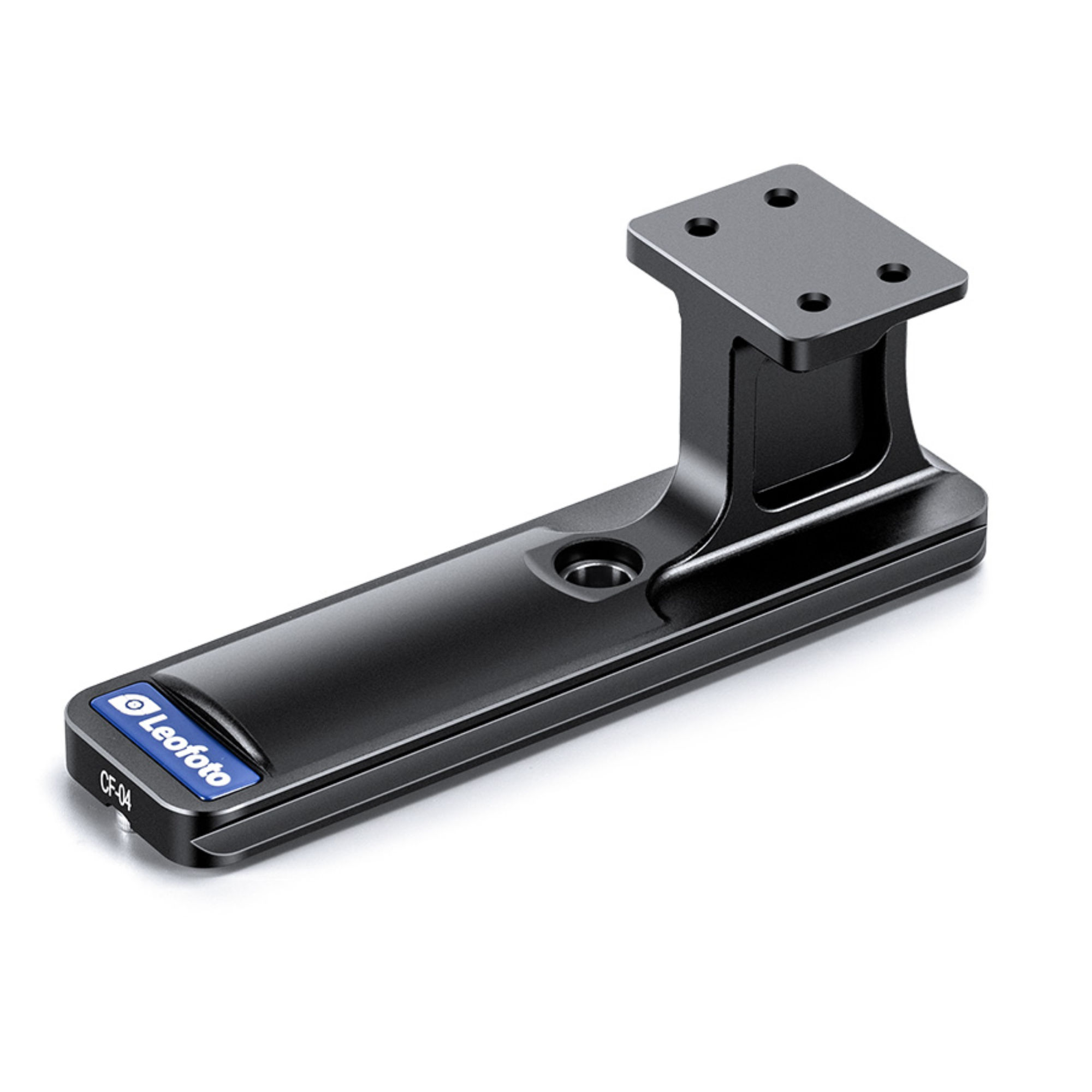

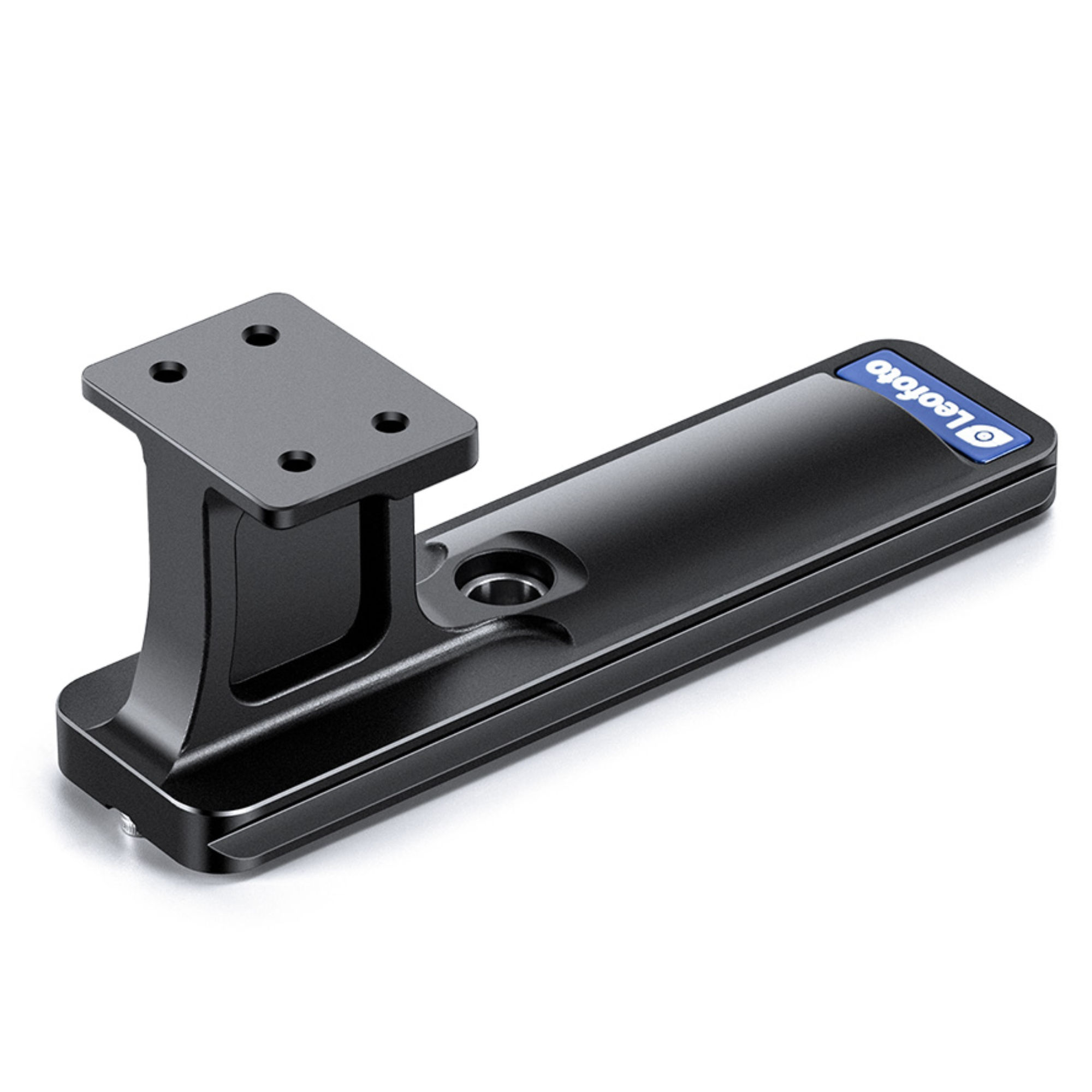

The Leofoto CF-04 Lens Collar Foot for Select Canon Lenses is a black anodized 6061-T6 aluminum replacement for the original foot supplied with the Canon EF 400mm f/2.8L IS III USM, EF 600mm f/4L IS III USM, and EF 800mm f/5.6L IS USM lenses. It integrates Arca-type dovetail mounts with both 1/4"-20 and 3/8"-16 receivers, plus a QD socket for attaching a compatible strap or sling.
Arca-Type Dovetail Mount
Dual 1/4"-20 and 3/8"-16 receivers let the dovetail foot mount directly to a wide range of Arca-type compatible clamps and tripod heads without an adapter.
Quick Disconnect Strap Socket
A built-in QD socket allows quick attachment of a compatible strap or sling for fast access between shots.
Safety Stop Screws
Two M3 screws are included for use as optional safety stops, adding extra security against accidental release from a partially open quick release clamp.
Compatibility:
- Canon EF 400mm f/2.8L IS III USM
- Canon EF 600mm f/4L IS III USM
- Canon EF 800mm f/5.6L IS USM
General
| Mounting Screw | 1/4"-20 Male |
| Tripod Mounting Thread | 1/4"-20 Female 3/8"-16 Female |
| Plate Type | Arca-Type |
| Quick Disconnect System | QD |
Physical
| Materials | Aluminum |
| Dimensions | 145 x 38 x 53 mm |
| Weight | 139 g |
What's Included
- Leofoto CF-04 Lens Collar Foot for Select Canon Lenses
- 2 x M3 Screw
- Barcode: 89233
- UPC Barcode: 6940828302051
- Supplier Code: CF-04
