Overview

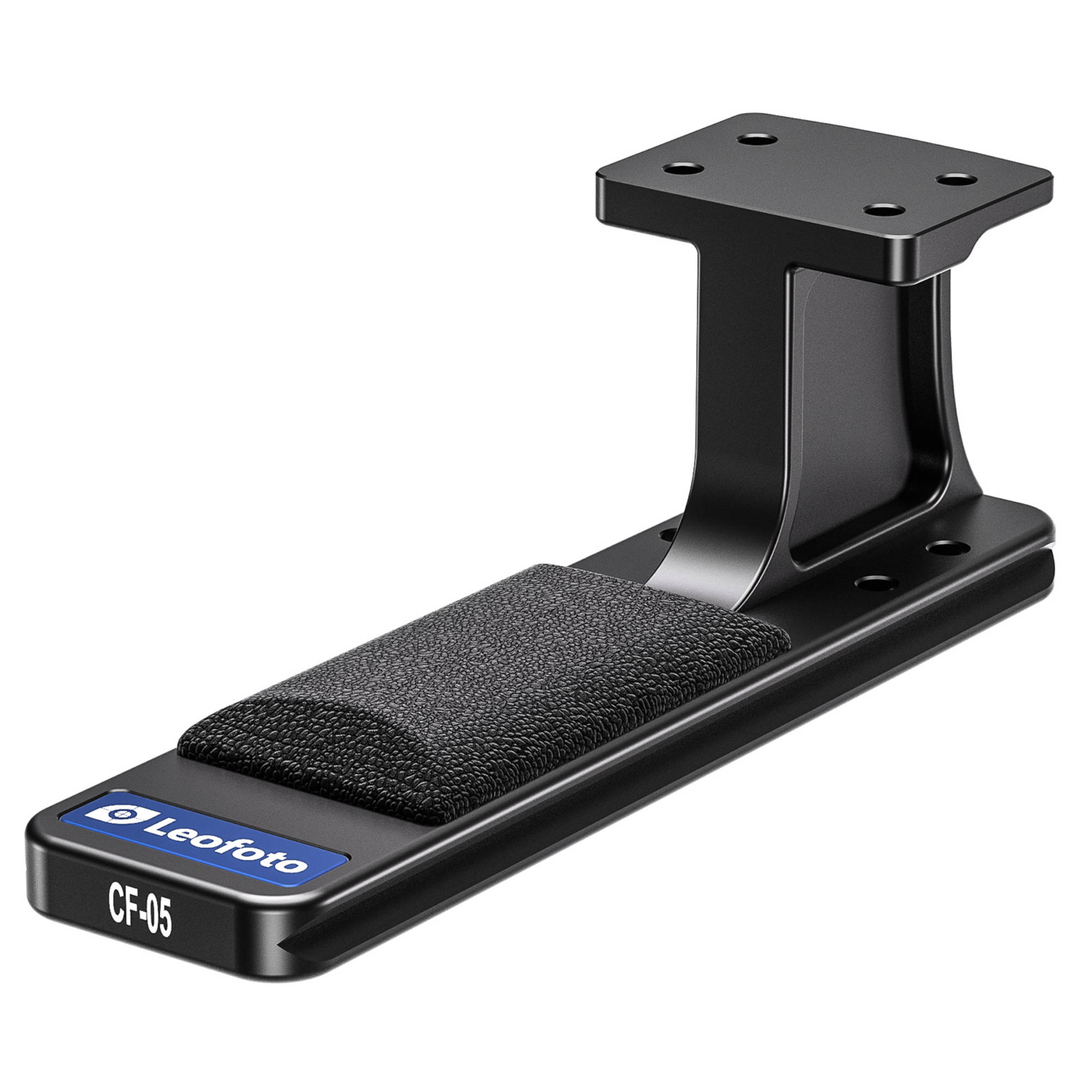

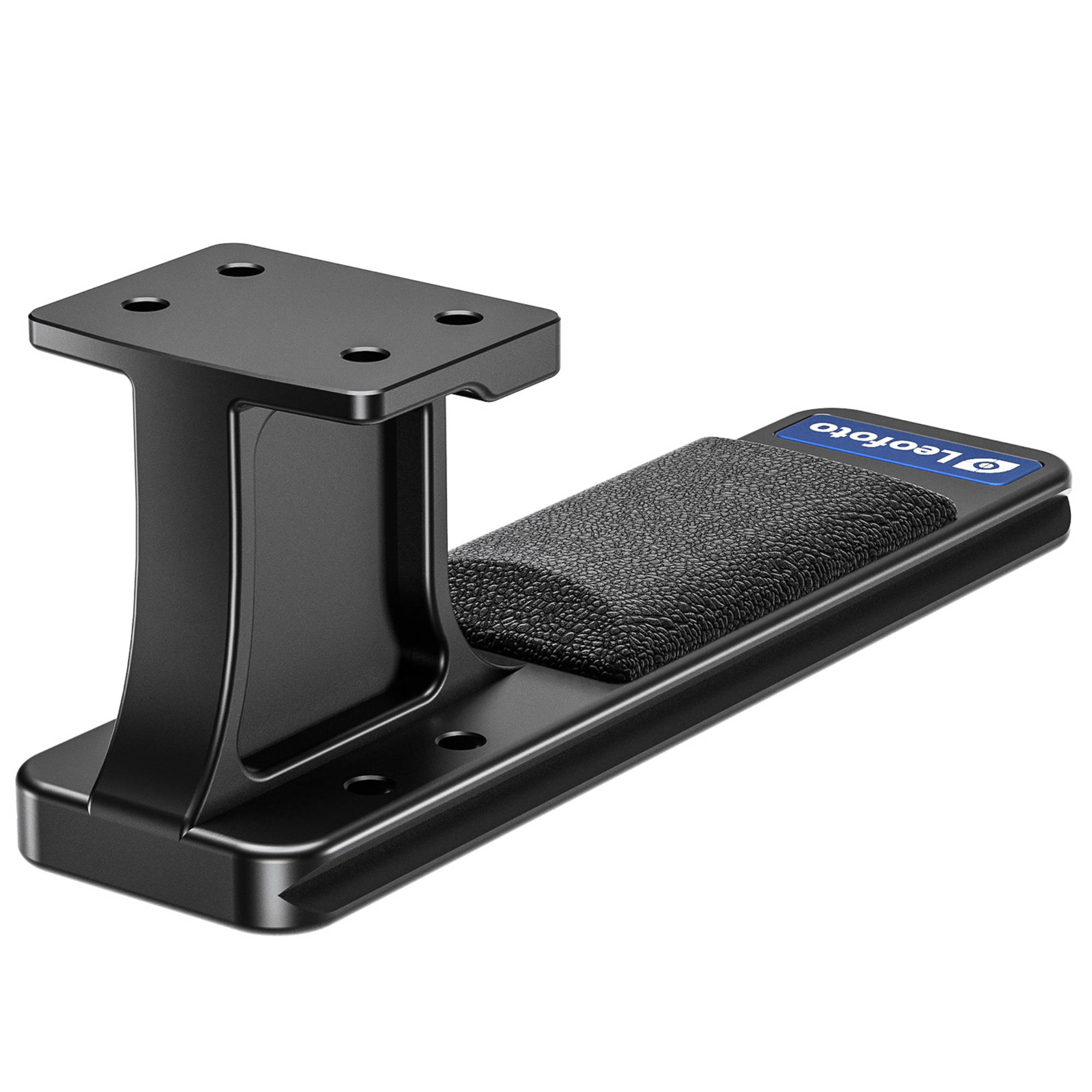

The Leofoto CF-05 Lens Foot for Select Canon Lenses is an improved aluminum replacement for select Canon lens collar feet, engineered for a lower profile and better balance than the factory foot. It integrates an Arca-type dovetail with 1/4"-20 and 3/8"-16 receivers, a QD socket for attaching a compatible strap or sling, and a silicone pad for a comfortable, ergonomic grip.
Arca-Type Dovetail Mount

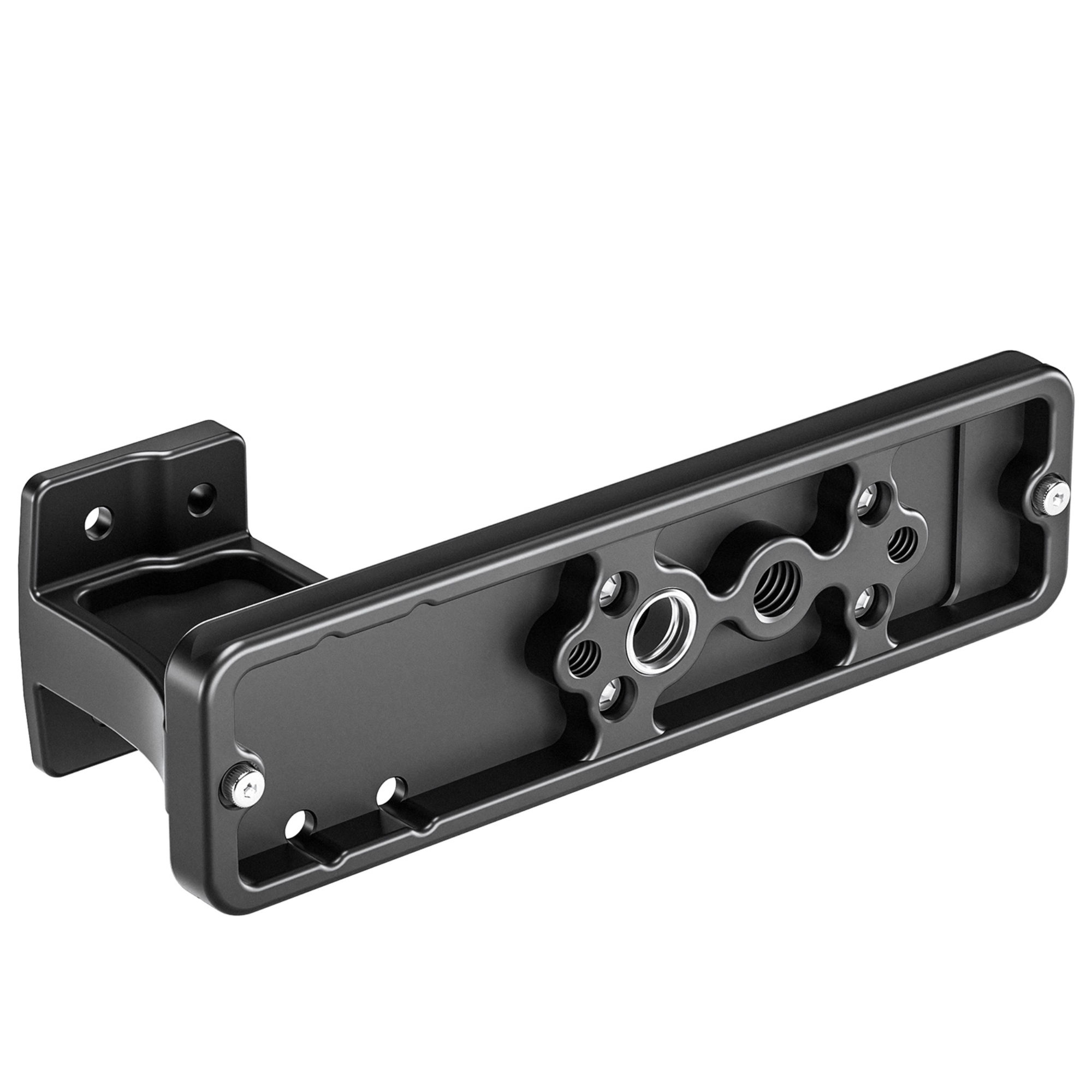

Dual 1/4"-20 and 3/8"-16 receivers let the dovetail design mount directly to a wide range of compatible quick release clamps and tripod heads.
Quick Disconnect Strap Socket and Silicone Grip
A QD socket allows quick attachment of a compatible strap or sling, while the silicone pad creates an ergonomic, comfortable grip in hand.
Safety Stops and Extended Length
Two safety stops on the underside of the foot prevent accidental lens release, while the foot's extended length is designed to improve balance on longer lenses.
Compatibility:
- Canon EF 200-400mm f/4L IS 1.4x USM
- Canon EF 300mm F/2.8L II USM
- Canon EF 400mm f/2.8L IS II USM
- Canon EF 400mm f/2.8L IS III USM
- Canon EF 500mm f/4L IS II USM
- Canon EF 600mm f/4L IS II USM
- Canon EF 600mm f/4L IS III USM
- Canon RF 100-300mm F2.8 L IS USM
- Canon RF 400mm f/2.8 L IS USM
- Canon RF 600mm f/4 L IS USM
- Canon RF 800mm f/5.6 L IS USM
- Canon RF 1200mm f/8 L IS USM
General
| Mounting | 1/4"-20 Female 3/8"-16 Female |
| Plate Type | Arca-Type |
| Quick Disconnect System | QD |
Physical
| Materials | Aluminum, Silicone |
| Dimensions | 146 x 53 x 38 mm |
| Weight | 145 g |
What's Included

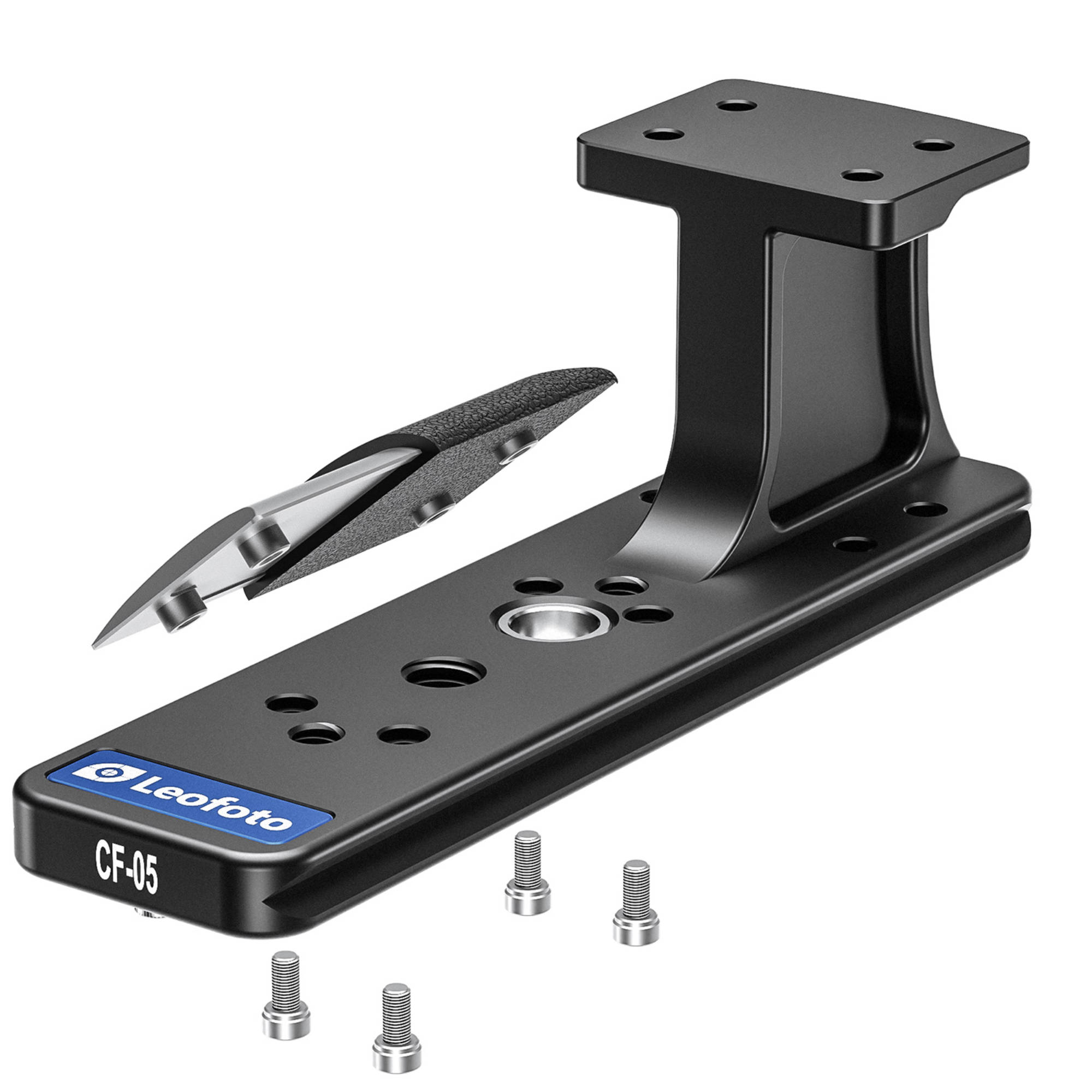

- Leofoto CF-05 Lens Foot for Select Canon Lenses
- 2 x M3 Screw
- Barcode: 89234
- UPC Barcode: 6940828311510
- Supplier Code: CF-05
